DrayTek VSPX2060-K network switch Managed L2+ 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Desktop/Wall-Mounting Black
iFrame
£404.99
Couldn't load pickup availability
- 4 x RJ-45 multi-Gigabit Ethernet Ports (10G/5G/2.5G/1G/100M) with PoE++ (Type 3)
- 2 x SFP+ 10GbE Ports for Uplink / Fibre
- PoE (Power-over-Ethernet) for IP phones, wireless access points, IP Cameras etc.
- 140-watt Power-over-Ethernet budget
- 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
- VLAN Routing & Static Route with DHCP server / relay
- QoS for Application traffic prioritisation
- 802.1x RADIUS / TACACS+ Port Authentication with Accounting
- Voice VLAN for QoS (OUI Mode)
- Link Aggregation
- IGMP Snooping & Querying
- IPv4 and IPv6 Support with IP Conflict Prevention
- Centrally managed or standalone operation
VigorSwitch PX2060 is a 10 Gigabit switch with 4 PoE++ 10GbE ports (total of 140W output) and 2 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps, such as PoE++ Wi-Fi 7 access points, high bandwidth video or network attached storage.
This compact in size networking switch helps with expanding the network in critical areas where fast 10GbE interfaces are needed, supported by 10Gbps SFP+ uplink slots.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Traffic shaping | Yes |
| Traffic classification | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 4 |
| SFP+ module slots quantity | 2 |

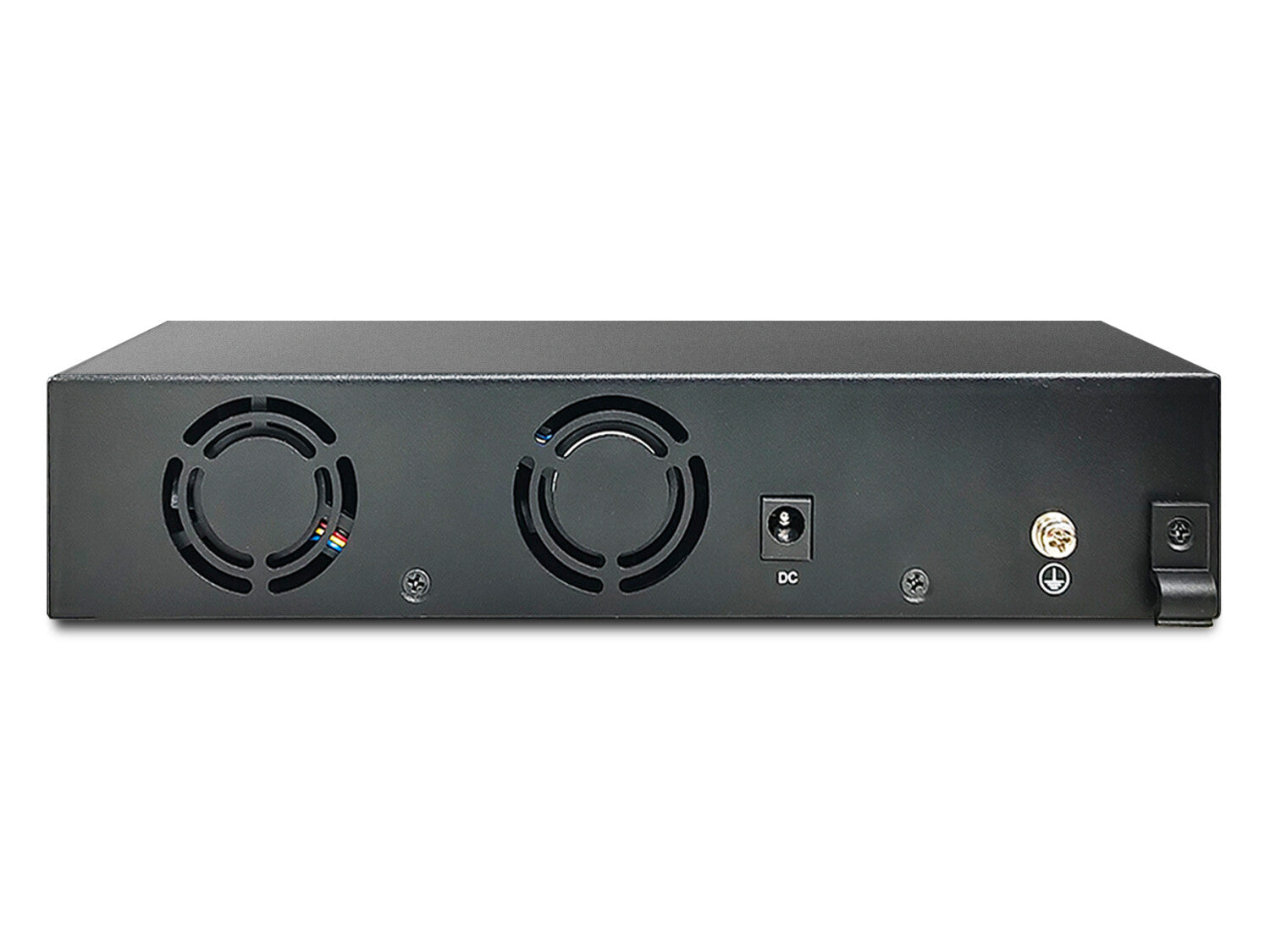

| Power connector | DC-in jack |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x, IEEE 802.1ab, IEEE 802.1ad |
| 10G support | Yes |
| Copper ethernet cabling technology | 10GBASE-T, 1000BASE-T, 100BASE-T |
| Port mirroring | Yes |
| Full duplex | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 160 Gbit/s |
| Throughput | 119.04 Mpps |
| Store-and-forward | Yes |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Security | |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCP Option 82 |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| IGMP snooping | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Stackable | No |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Power, LAN, SFP |
| Wall mountable | Yes |
| Performance | |
|---|---|
| Operating system installed | DrayOS |
| Firmware upgradeable | Yes |
| Fanless | No |
| Power | |
|---|---|
| Power supply included | Yes |
| Power consumption (max) | 180 W |
| Power saving mode (EEE) | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 140 W |
| Other features | |
|---|---|
| Warranty period | 2 year(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 215 mm |
| Depth | 185 mm |
| Height | 44 mm |
| Weight | 2.38 kg |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Packaging data | |
|---|---|
| Package type | Box |
