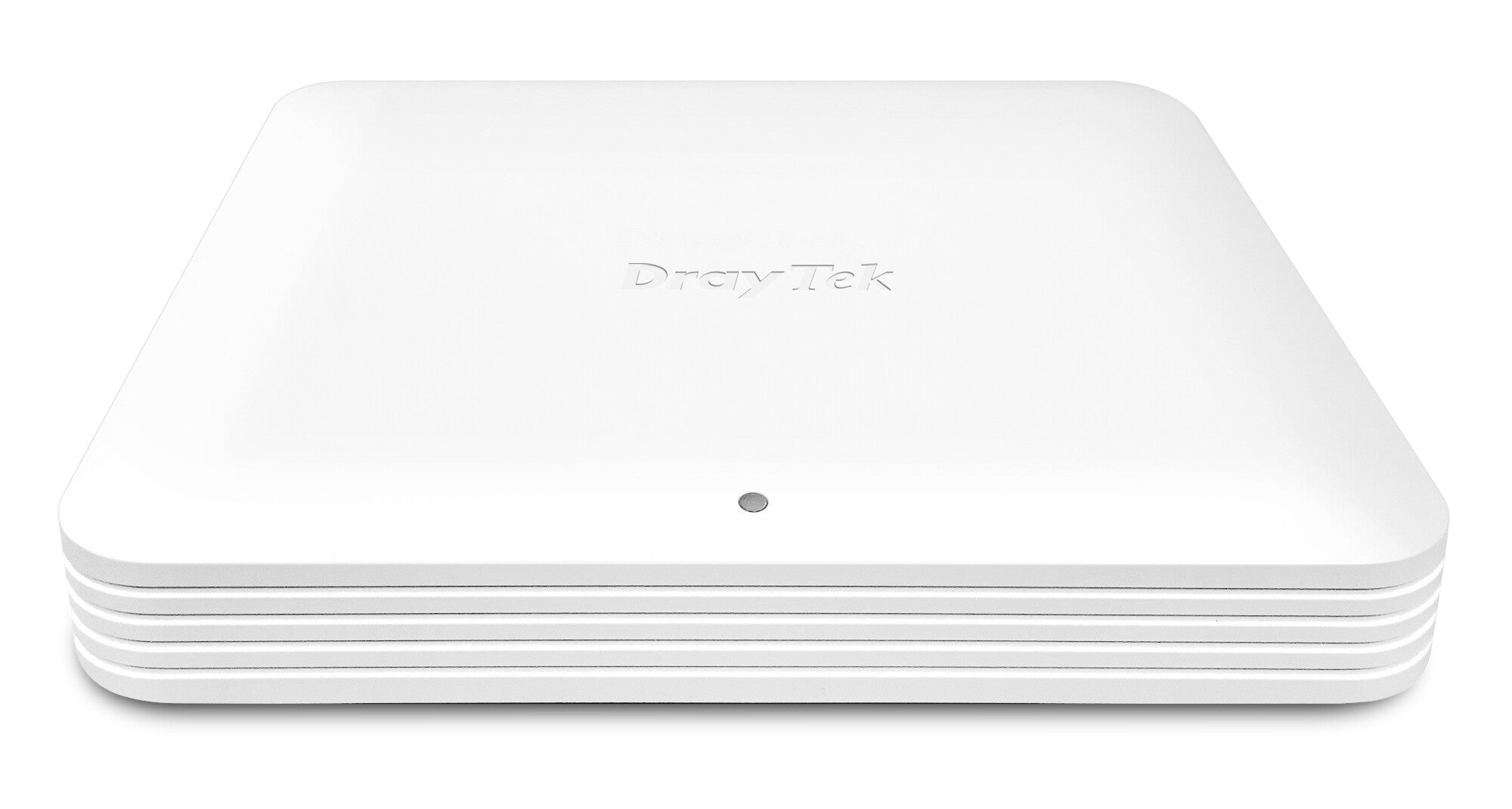

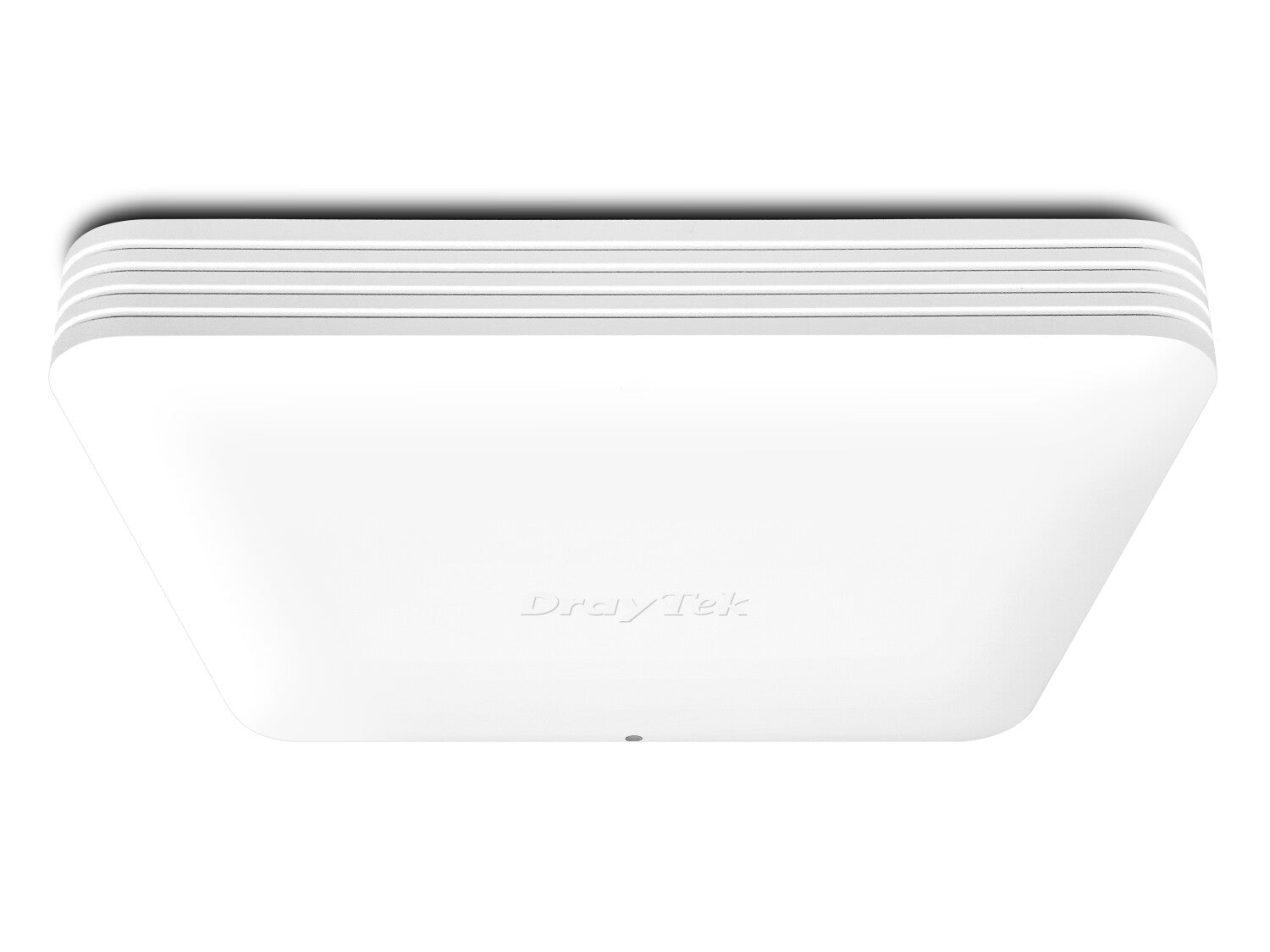

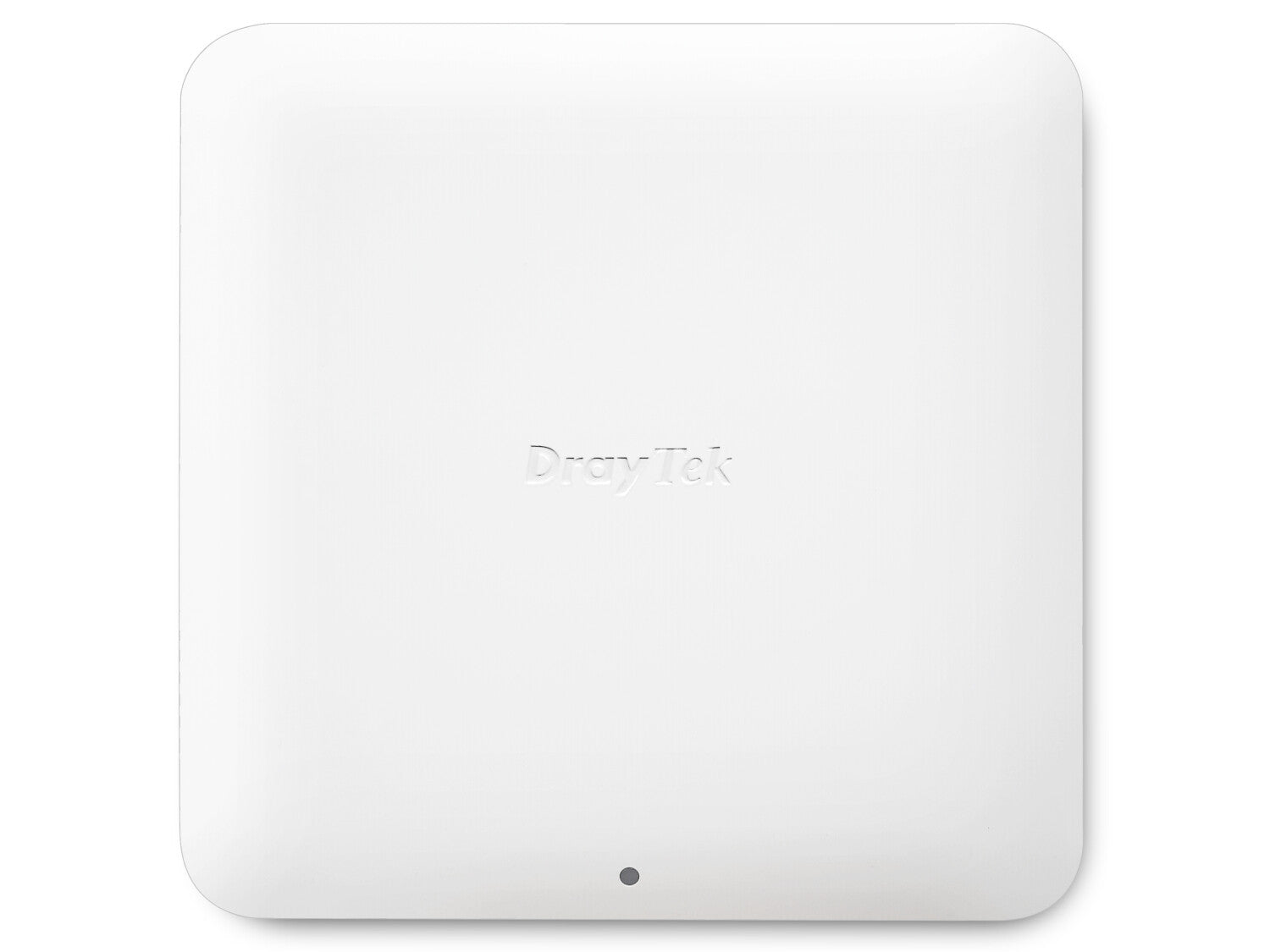

DrayTek VigorAP 1070C Wi-Fi 7 BE19000 Ceiling/Wall Mesh Wireless Access Point
Couldn't load pickup availability
- Wi-Fi 7 Mesh Wireless Access Point
- BE19000– 802.11be Tri Band Wireless
- MLO – Multi-Link Operation for higher speeds and lower latency
- WPA3 Security – Stronger Security with WPA3 Personal & Enterprise
- Power through PoE or DC Power Adapter (not included)
- Multi-SSID over Mesh – Separate Internal and Guest Networks over Mesh*
- 10Gb and 2.5Gb Ethernet Interfaces
- Centrally Managed or Standalone Operation
- Root AP for AP Management
Wi-Fi 7 Ceiling or Wall Mounted BE 19000 Mesh Wireless PoE Access Point
The VigorAP 1070C is a high-performance wireless access point designed for business where speed matters. This ceiling or wall-mounted mesh access point delivers tri-band wireless performance of up to 19Gbps (BE 19000), providing fast and reliable Wi-Fi 7 connectivity for a demanding network.
Equipped with 10GbE and 2.5GbE Ethernet wired interfaces, the VigorAP 1070C ensures seamless integration with your existing network infrastructure. This allows for high-speed data transfer and optimal performance for all your connected devices.
Ideal for small to medium-sized businesses and home offices, the VigorAP 1070C is easy to install and manage, making it a cost-effective solution for improving your wireless network. With its advanced features and high-speed performance, this access point provides a secure and reliable Wi-Fi connection for your business needs.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 6 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 19000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1376 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11530 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5765 Mbit/s |
| Ethernet LAN data rates | 10000,2500 Mbit/s |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at, IEEE 802.3bz |
| Number of users | 512 user(s) |
| Automatic channel scanning | Yes |
| Automatic channel selection | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| Spatial streams | 4 x 4 |
| MIMO type | Multi User MIMO |
| Fit AP mode features | Mesh networking |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wi-Fi roaming | Yes |
| VLAN support | Yes |
| Wireless meshing | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS, HTTPS, WEP, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, WPS |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs, Hidden SSID |
| Number of SSID supported | 24 |
| Guest access | Yes |
| Schedule access | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
| Blacklist | Yes |
| Whitelist | Yes |
| Protocols | |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| Management features | |
|---|---|
| Web-based management | Yes |
| Command-line interface (CLI) | Yes |
| Traffic statistics | Yes |
| Cloud-managed | Yes |
| Access point management | Virtual Controller, VigorConnect, VigorACS |
| Syslog | Yes |
| Backup function | Yes |
| Firmware upgradeable | Yes |

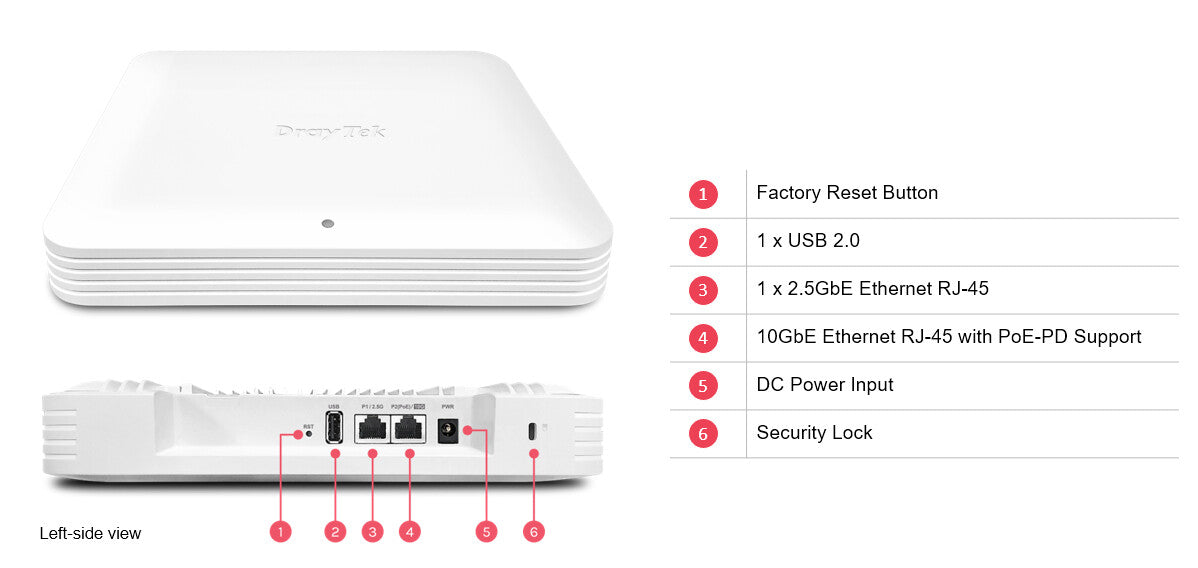

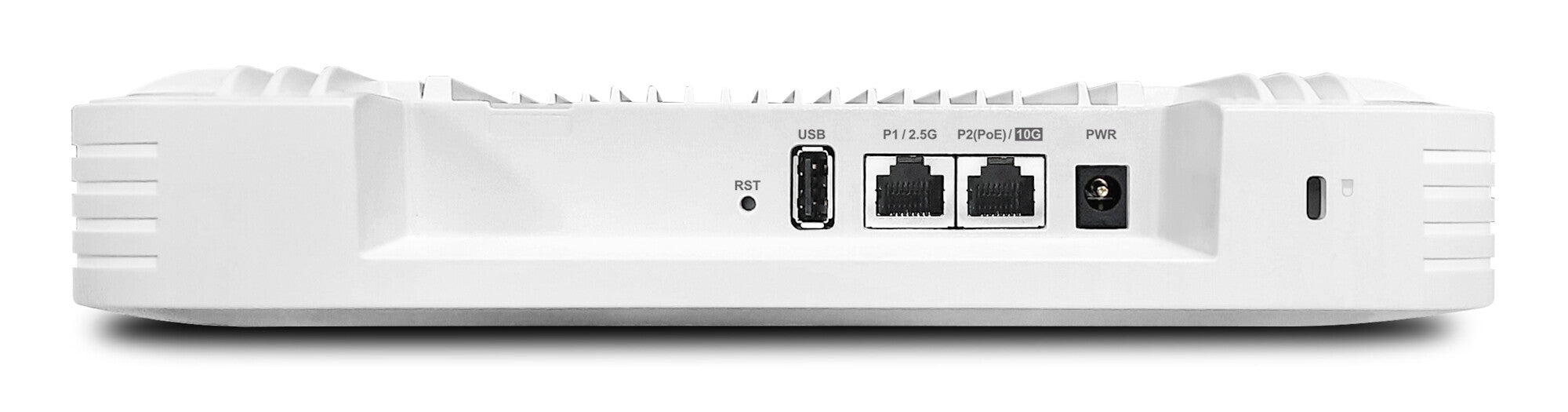

| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Internal RJ-45 ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 33 W |
| Design | |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Housing material | Plastic, Metal |
| Reset button | Yes |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Performance | |
|---|---|
| Operating system installed | DrayOS |
| Weight & dimensions | |
|---|---|
| Width | 225 mm |
| Depth | 43 mm |
| Height | 225 mm |
| Weight | 1.67 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| AC adapter included | No |
| PoE adapter included | No |
| Cables included | LAN (RJ-45) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Logistics data | |
|---|---|
| Country of origin | China |
