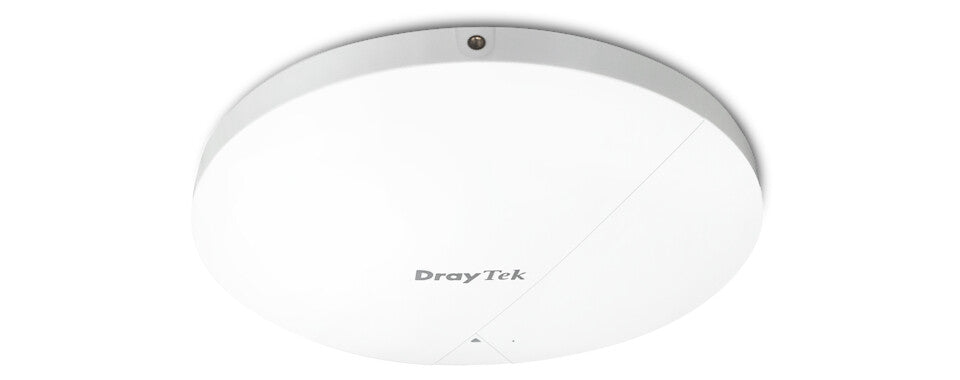

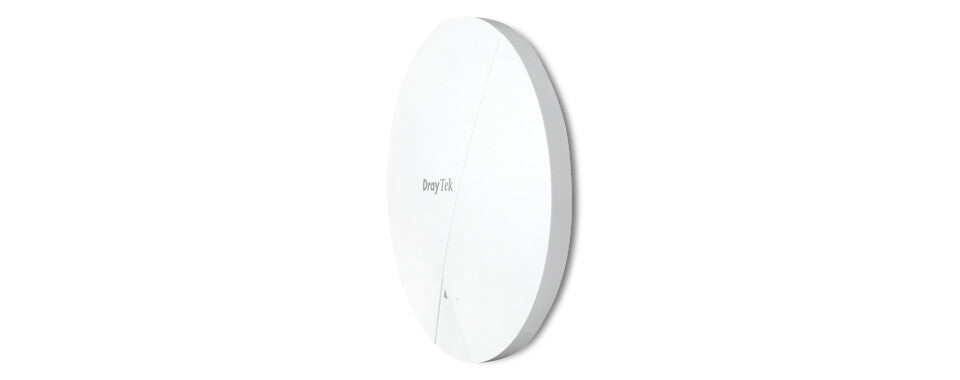

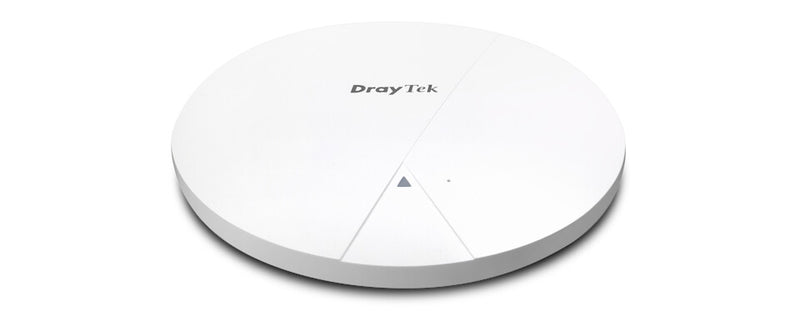

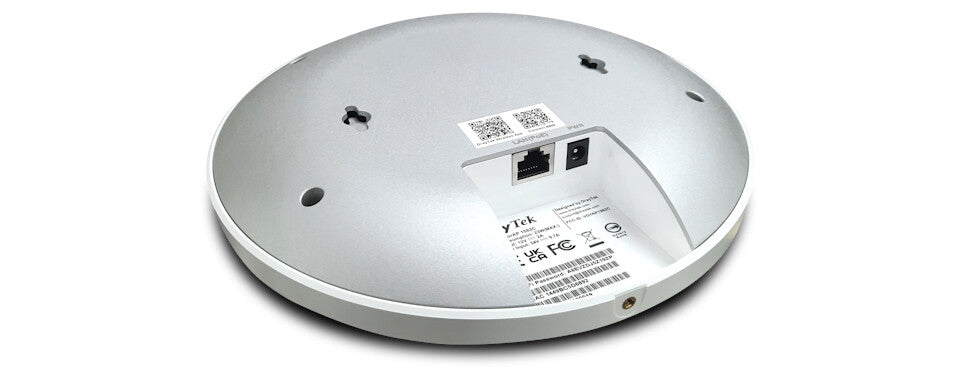

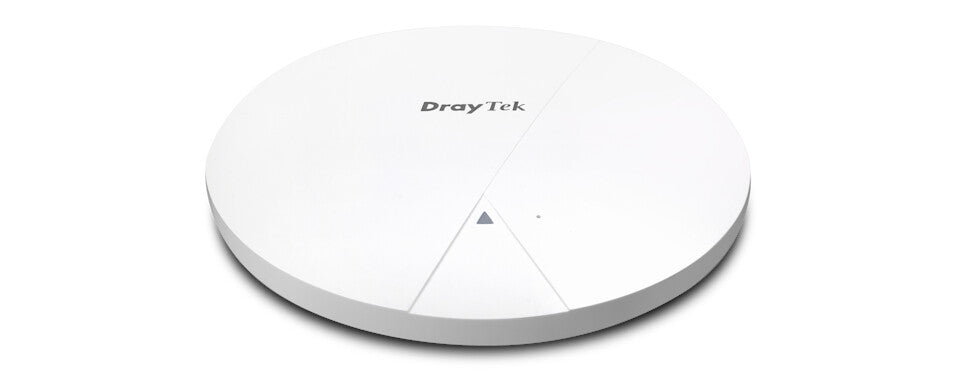

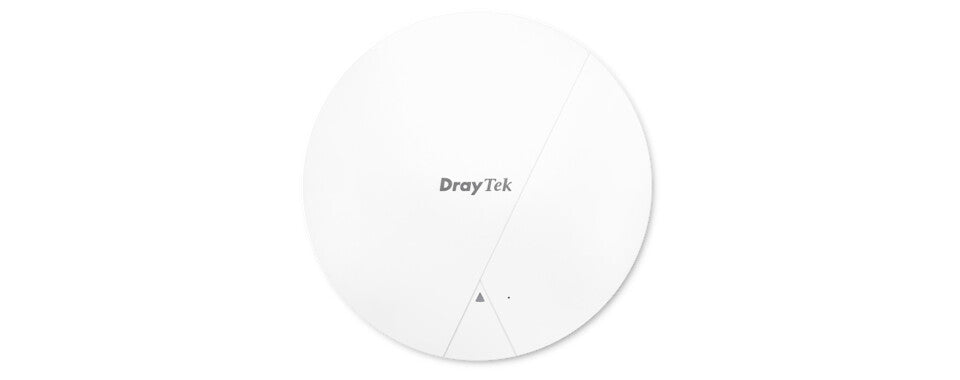

DrayTek VigorAP 1062C Wi-Fi 6 AX6000 Ceiling AP with 2.5Gb PoE Ethernet
iFrame
£214.99
Couldn't load pickup availability
- WiFi 6 Mesh Ceiling-mount Mesh Wireless Access Point and Range Extender
- AX6000 – 11ax Dual Band Wireless
- WPA3 Security – Stronger Security with WPA3 Personal & Enterprise
- Power through 802.3at PoE+ or DC Power Adapter
- Multi-SSID over Mesh – Separate Internal and Guest Networks over Mesh*
- 2.5Gb Ethernet Uplink
- Centrally Managed or Standalone Operation
The VigorAP 1062C is a high-performance ceiling or wall-mounted Mesh Wireless Access Point. It offers up to 6Gbps dual-band wireless performance and up to 2.5Gb Ethernet connectivity.
| Features | |
|---|---|
| BeamForming | Yes |
| Cloud services supported | Draytek VigorACS |
| Band steering | Yes |
| Wireless isolation | Yes |
| Virtual LAN features | SSID-based VLAN assignment |
| VLAN support | Yes |
| Fit AP mode features | Mesh networking |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Duplex mode auto-negotiation | Yes |
| Full duplex | Yes |
| Automatic channel selection | Yes |
| Number of users | 256 user(s) |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11r, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at |
| Ethernet LAN data rates | 2500 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1200 Mbit/s |
| Maximum data transfer rate | 6000 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Number of SSID supported | 16 |
| Service Set Identifier (SSID) features | Hidden SSID, Multiple SSIDs, SSID broadcast on/off |
| MAC address filtering | Yes |
| Security algorithms | 802.1x RADIUS, HTTPS, SSID, WEP, WMM, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal, WPS |
| Protocols | |
|---|---|
| DHCP client | Yes |
| DHCP server | Yes |
| Management features | |
|---|---|
| Firmware upgradeable | Yes |
| Syslog | Yes |
| Command-line interface (CLI) | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power consumption (max) | 23 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Market segment | Business |
| Recommended usage | Indoor |
| LED indicators | System |
| Reset button | Yes |
| Product colour | White |
| Placement | Ceiling, Wall |
| Antenna | |
|---|---|
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Weight & dimensions | |
|---|---|
| Weight | 813 g |
| Height | 208 mm |
| Depth | 32.1 mm |
| Width | 208 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Mounting kit | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
