£253.99

Stock Available: 0
  • VigorACS Central Management
  • Integrated VoIP Telephone Ports
  • Powerful SoHo VPN Router
  • Packed With Features
  • AC1300 Wireless with Mesh
  • G.Fast, VDSL and Ethernet Router

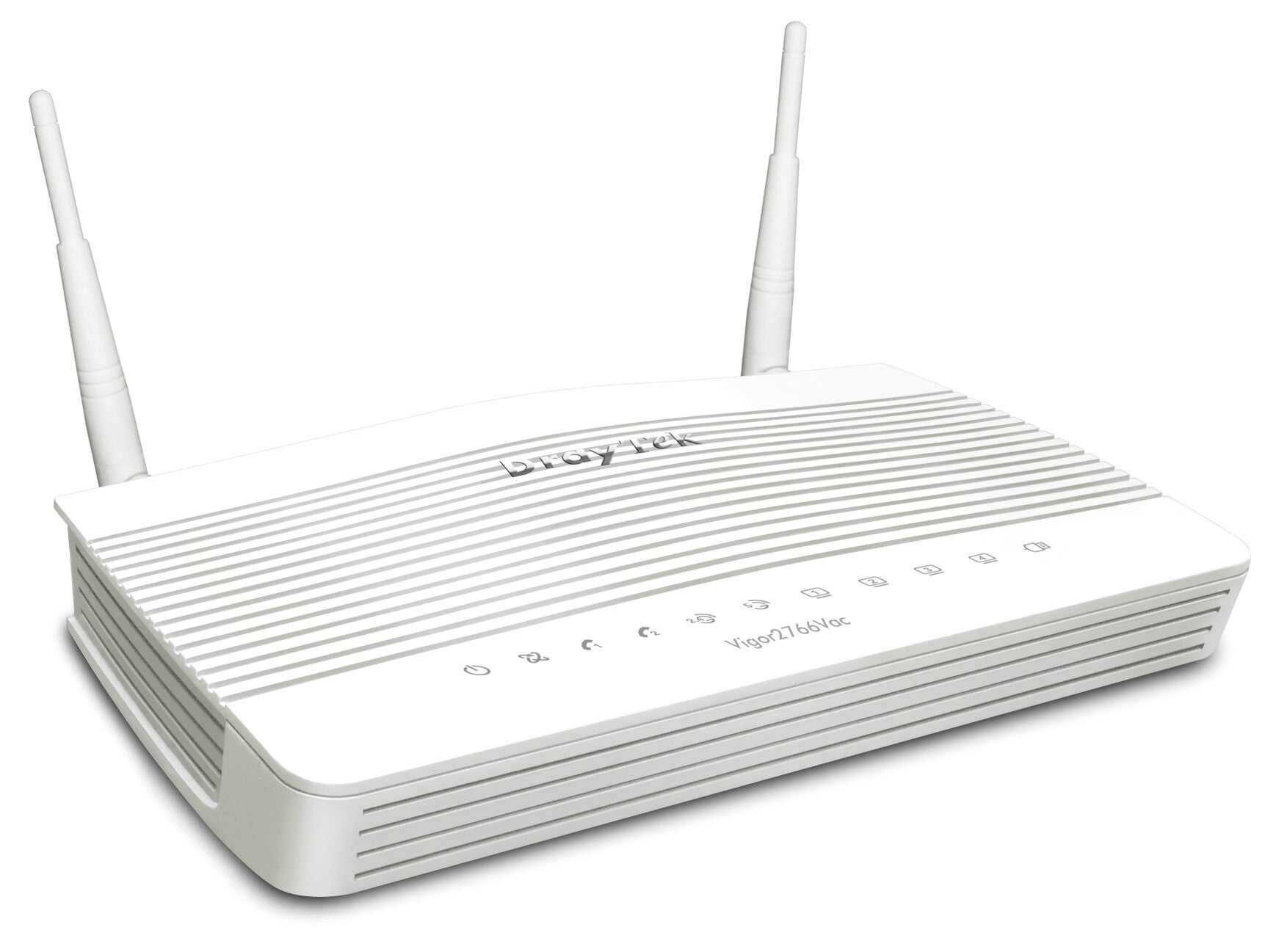

The Ideal SoHo VPN Router for G.Fast, VDSL and Gigabit Fibre
The Vigor 2766 series is DrayTek’s G.Fast / VDSL and Ethernet router that is ideal for Small Office and Home Office networks. Featuring powerful Firewall and Content Filtering, configurable Quality of Service and an array of VPN capabilities, with the performance to make full use of FTTP Fibre Broadband.

Incorporating Wireless and VoIP features in ‘2766ac’ and ‘2766Vac’ models, the Vigor 2766 series provide a reliable, highly integrated and reliable network solution for SoHo environments.

G.Fast, VDSL and Ethernet Router
Connect the Vigor 2766 to Ultrafast G.Fast and Superfast VDSL2 FTTC with integrated DSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.

AC1300 Wireless with Mesh
Connect DrayTek VigorAP Access Points to the router in a wireless Mesh. DrayTek’s Self-Optimising Mesh ensures access points are always connecting through the best path to your Router.

Packed With Features
Configure DrayTek’s rich feature set to fit your network with Route Policy, Quality of Service, VPN Matcher, DrayDDNS and more.

Powerful SoHo VPN Router
Connect remote locations with 2 VPN tunnels for Remote Dial-In User Teleworker and Dial-Out LAN to LAN VPN. Up to 200Mbps IPsec performance, with SSL and OpenVPN support.

Integrated VoIP Telephone Ports
Connect 2 analogue phones to VoIP with the 'Vac' model. Great VoIP features such as auto VoIP QoS and configurable SIP ALG improve the reliability and quality of VoIP calls.

VigorACS Central Management
Use the VigorACS central management platform to manage, monitor and configure the Vigor 2766 series routers remotely across multiple locations.

WAN connection
Ethernet WAN Yes
DSL WAN Yes
SIM card slot No
3G/4G USB modem compatibility Yes
Wireless LAN features
Wi-Fi band Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max) 866 Mbit/s
Wi-Fi standards Wi-Fi 5 (802.11ac)
Network
Ethernet LAN Yes
Ethernet LAN interface type Gigabit Ethernet
Ethernet LAN data rates 10000,100000 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Multicast support Yes
Port triggering Yes
Load balancing system Yes
Dynamic DNS (DDNS) Yes
Static route Yes
Built-in FTP server Yes
VPN tunnels quantity 2
DSL features
ADSL2+ Yes
VDSL2 Yes

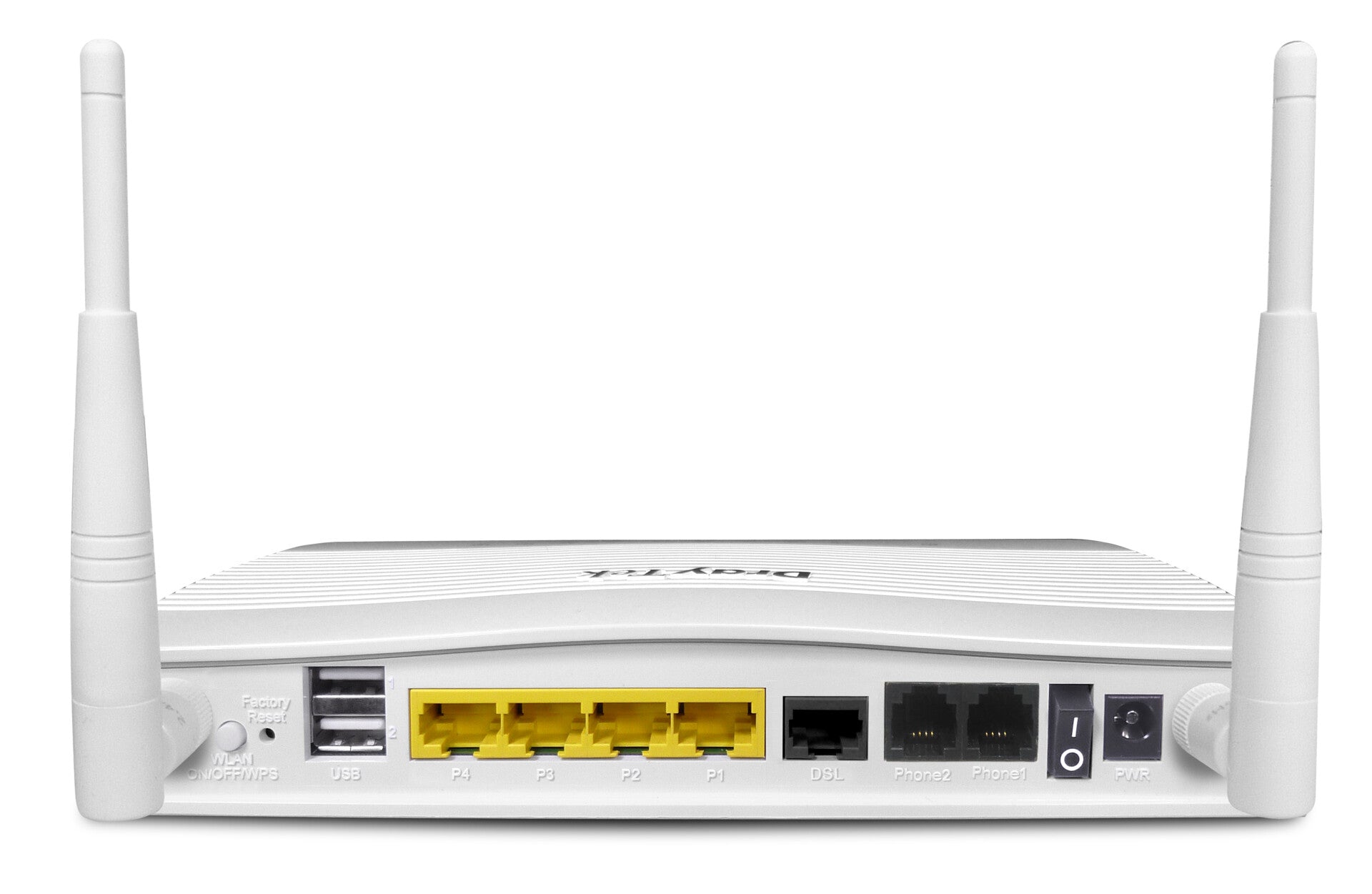

Ports & interfaces
Ethernet LAN (RJ-45) ports 4
USB port Yes
USB 2.0 ports quantity 2
RJ-11 ports quantity 2
Management features
Bandwidth control Yes
Wi-Fi Multimedia (WMM)/(WME) Yes
Quality of Service (QoS) support Yes
Reset button Yes
WPS push button Yes
MU-MIMO technology Yes
Security
Security algorithms WEP, WPA, WPA2, WPA3
Authentication method Pre-Shared Key
Firewall Yes
Stateful Packet Inspection (SPI) Yes
DDoS protection Yes
DoS attack prevention Yes
Protocols
DHCP server Yes
Universal Plug and Play (UPnP) Yes
Design
Product type Tabletop router
Product colour White
Wall mountable Yes
Indication light Yes
On/off switch Yes
Packaging content
Cables included LAN (RJ-45)
Antenna included Yes
Quick start guide Yes
Antenna
Antenna design External
Antenna type 1x1
Antenna gain level (max) 4 dBi
Antennas quantity 2
Power
Power source type AC, DC
AC input voltage 220 - 240 V
Output voltage 12 V
Power consumption (typical) 24 W
Operational conditions
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Weight & dimensions
Height 39 mm
Depth 131 mm
Width 207 mm
