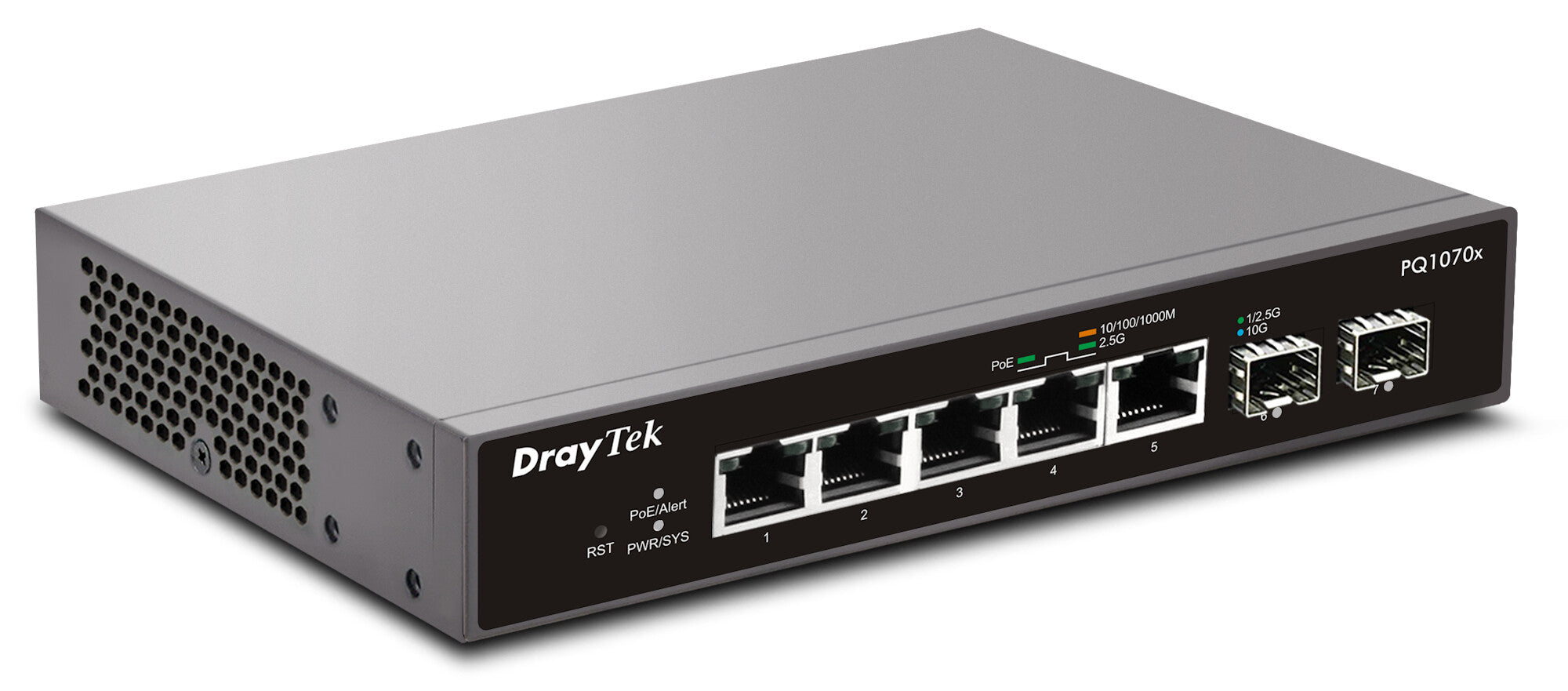

DrayTek PQ1070x Managed L2 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black
iFrame
£139.99
Couldn't load pickup availability
- 5 x RJ-45 2.5 Gigabit Ethernet Ports
- 2 x SFP+ 10GbE Ports for Uplink / Fibre
- Compact form factor
- Wall Mountable
- Fanless (Silent) Operation
- Low Power Consumption
VigorSwitch PQ1070x is a 2.5 Gigabit switch with 5 PoE+ 2.5GbE ports (total of 75W output) and 2 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as PoE Wi-Fi 6 access points, high bandwidth video or network attached storage.
This compact in size networking switch helps with expanding the network in critical areas where additional fast 2.5GbE interfaces are needed, supported by up to 10Gbps SFP+ uplink interfaces.
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP+ module slots quantity | 2 |
| 2.5G Ethernet (copper) ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Network | |
|---|---|
| Broadcast storm control | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Data transmission | |
|---|---|
| Packet buffer memory | 8 MB |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Forwarding rate | 48.36 Mpps |
| Switching capacity | 65 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Loop protection | Yes |
| Multicast features | |
|---|---|
| Multicast Listener Discovery (MLD) snooping | v1, v2 |
| Number of multicast groups filtered | 64 |
| Multicast support | Yes |
| Design | |
|---|---|
| Wall mountable | Yes |
| LED indicators | Yes |
| Reset button | Yes |
| Housing material | Metal |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Performance | |
|---|---|
| Fanless | Yes |
| Firmware upgradeable | Yes |
| Power | |
|---|---|
| Power consumption (max) | 89.6 W |
| Power supply included | Yes |
| Power source | DC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 75 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 5 |
| Power over Ethernet (PoE) ports quantity | 5 |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.16 kg |
| Height | 32 mm |
| Depth | 114 mm |
| Width | 175 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
