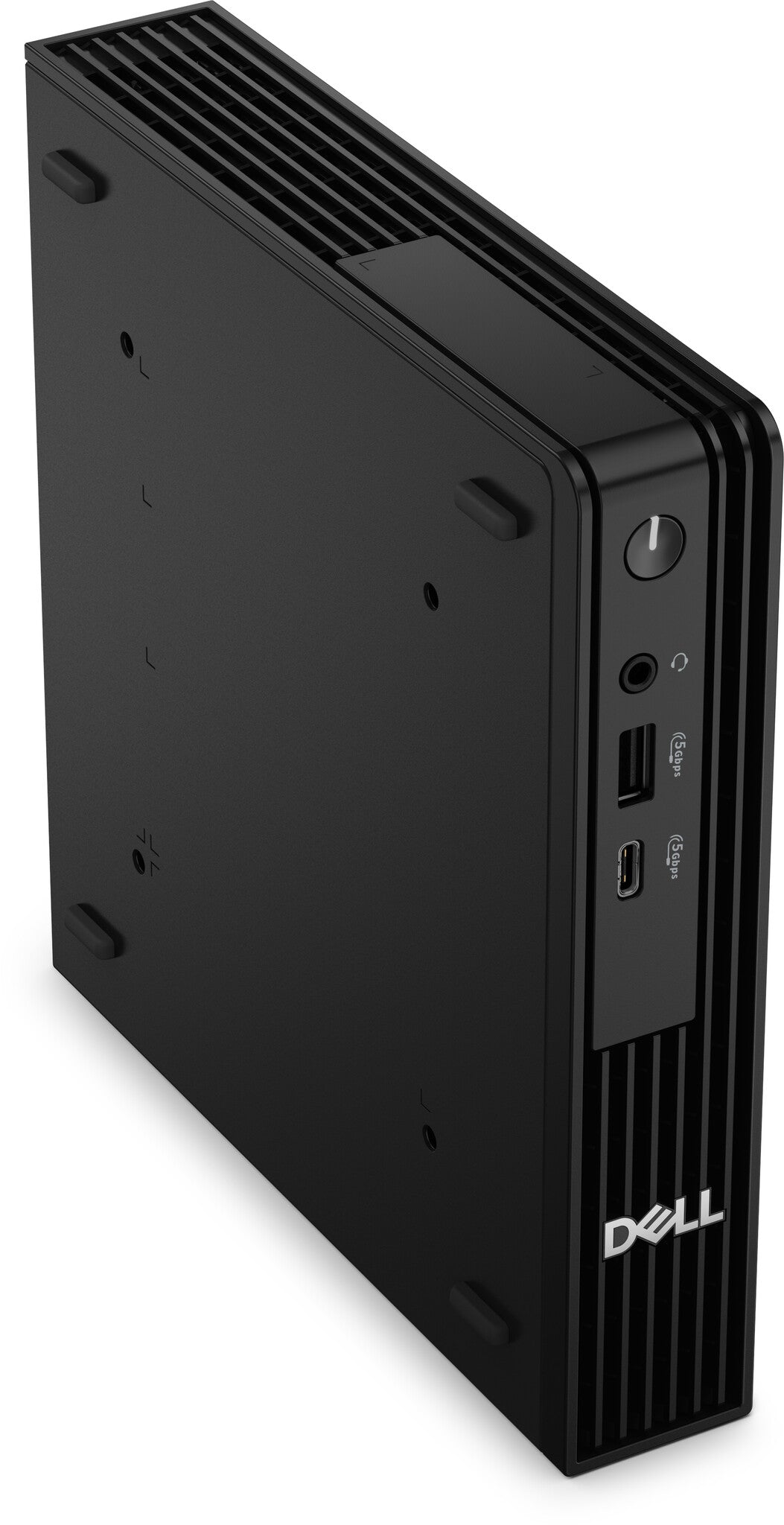

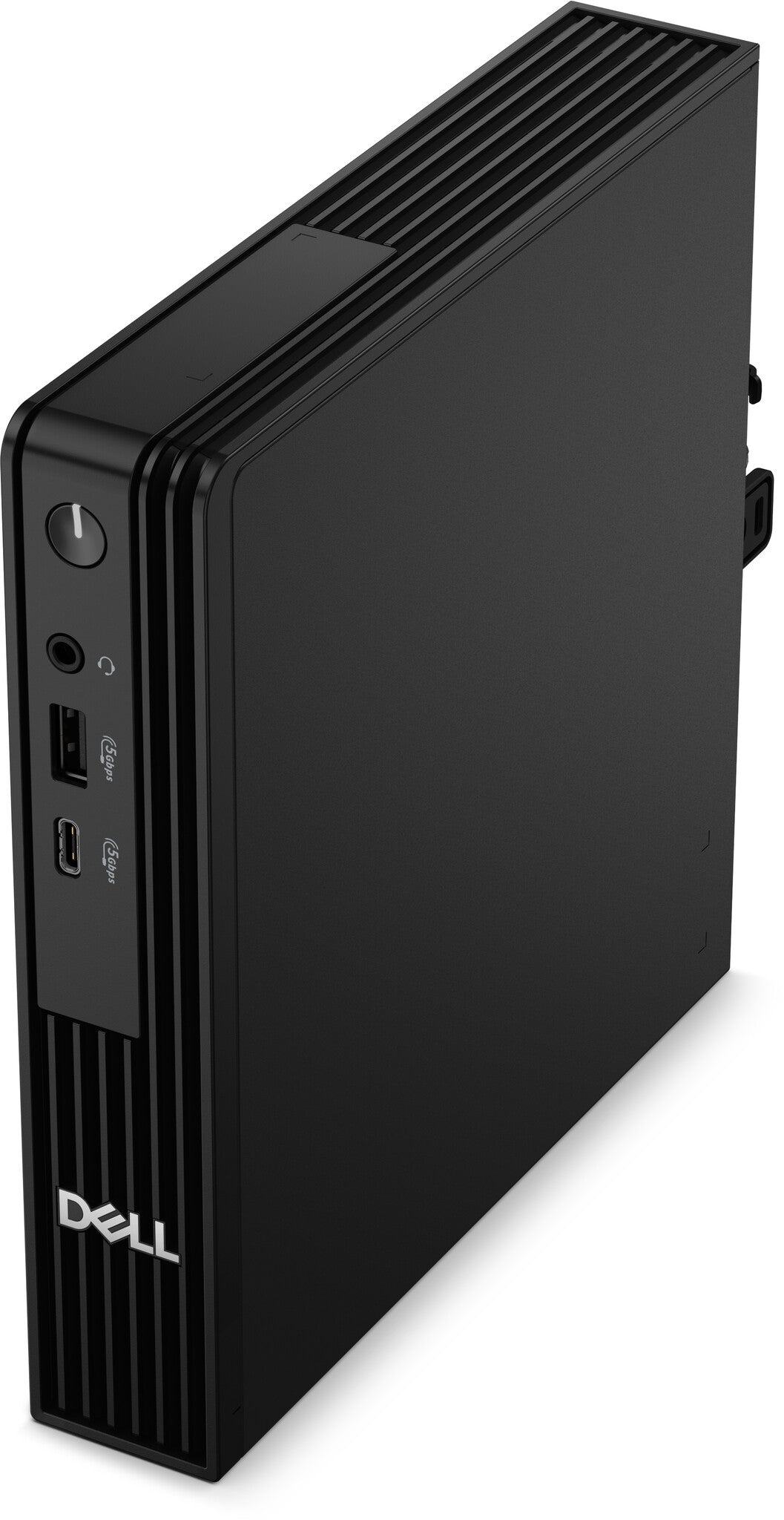

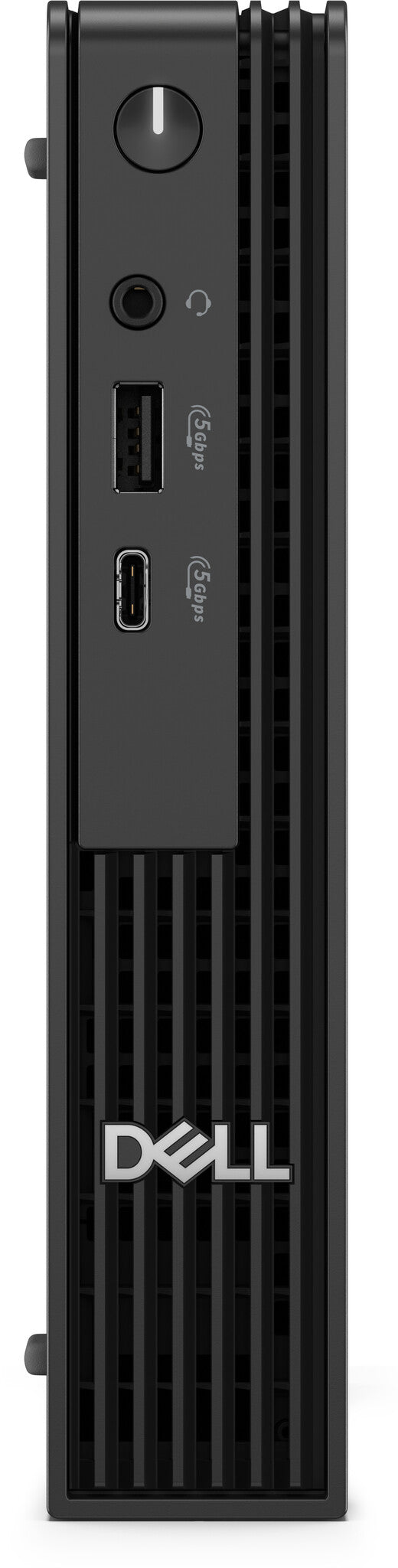

DELL Pro Essential PVM1265 AMD Ryzen™ 5 230 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro MFF Mini PC Black
£897.99
Couldn't load pickup availability
- Windows 11 Pro 64-bit
- AMD Ryzen 5 230 (3.5GHz)
- 16GB DDR5-SDRAM (1 x 16) & 512GB SSD
Ultracompact and business-ready
Boost productivity with an ultracompact desktop designed to deliver reliable performance and security for everyday workloads.
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor generation | AMD Ryzen 200 Series |
| Processor model | 230 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.9 GHz |
| Processor frequency | 3.5 GHz |
| L2 cache | 6 MB |
| L3 cache | 16 MB |
| Number of processors installed | 1 |
| Neural processor unit (NPU) | |
|---|---|
| Neural processor unit (NPU) | AMD Ryzen AI |
| Total processor performance up to | 31 TOPs |
| NPU performance up to | 16 TOPs |
| GPU performance up to | 16 TOPs |
| Memory | |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory data transfer rate | 5600 MT/s |
| Non-ECC | Yes |
| Storage | |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Graphics | |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon 760M |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | MediaTek |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n) |
| WLAN controller model | MediaTek MT7920 |
| Antenna type | 2x2 |
| Antenna design | Internal |
| Bluetooth | Yes |
| MU-MIMO | Yes |

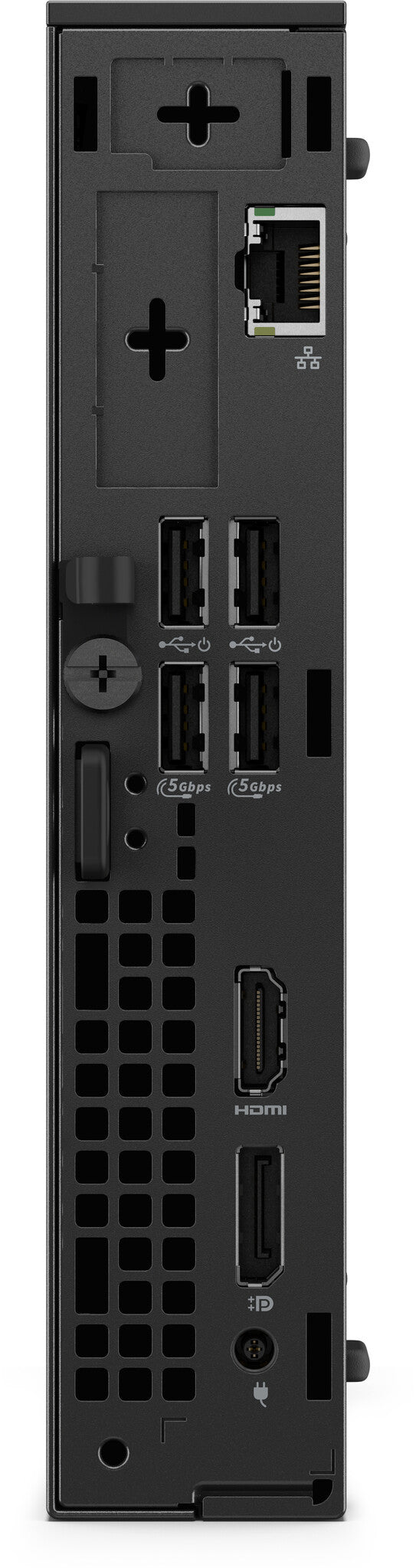

| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Power adapter barrel connector | 4.5 mm |
| Design | |
|---|---|
| Chassis type | MFF |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Performance | |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | AMD SoC |
| Audio chip | Realtek ALC3204 |
| Audio system | High Definition Audio |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Trial software | McAfee® Business Protection 1-year(Distribution Only),Activate Your Microsoft 365 For A 30 Day Trial |
| Power | |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Weight & dimensions | |
|---|---|
| Width | 36 mm |
| Depth | 178 mm |
| Height | 182 mm |
| Weight | 1.3 kg |
| Packaging content | |
|---|---|
| Display included | No |
| Mouse included on selected markets | Dell Wired Mouse - MS116 - Black |
| Keyboard included on selected markets | Dell Wired Keyboard - KB216 - UK (QWERTY) - Black |
| Cables included | AC |
| General | |
|---|---|
| Product family | Pro Essential |
| Technical details | |
|---|---|
| Box contents | E4,System Power Cord (UK/MY/SG/HK/Bangladesh/Pakistan/Sri Lanka) |
