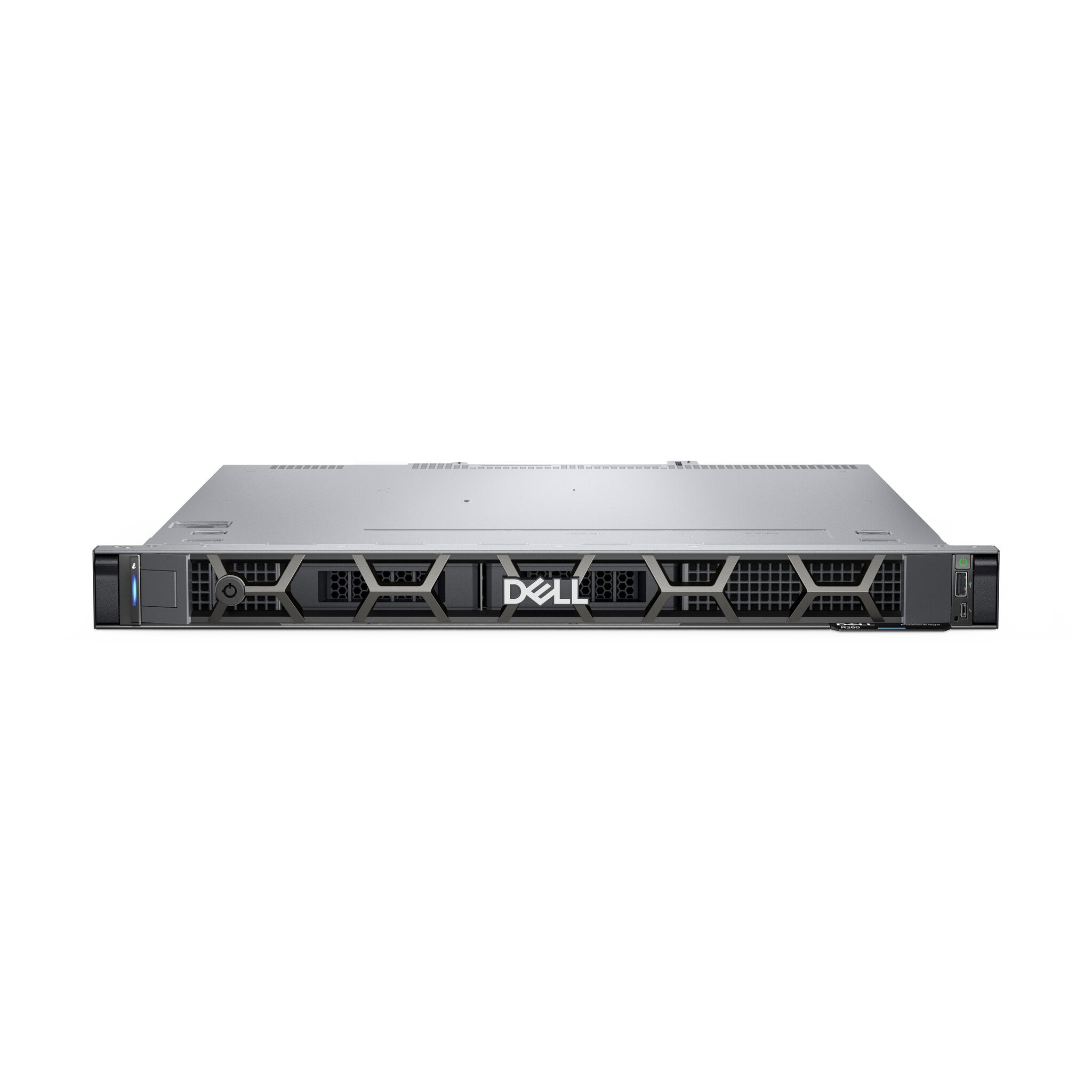

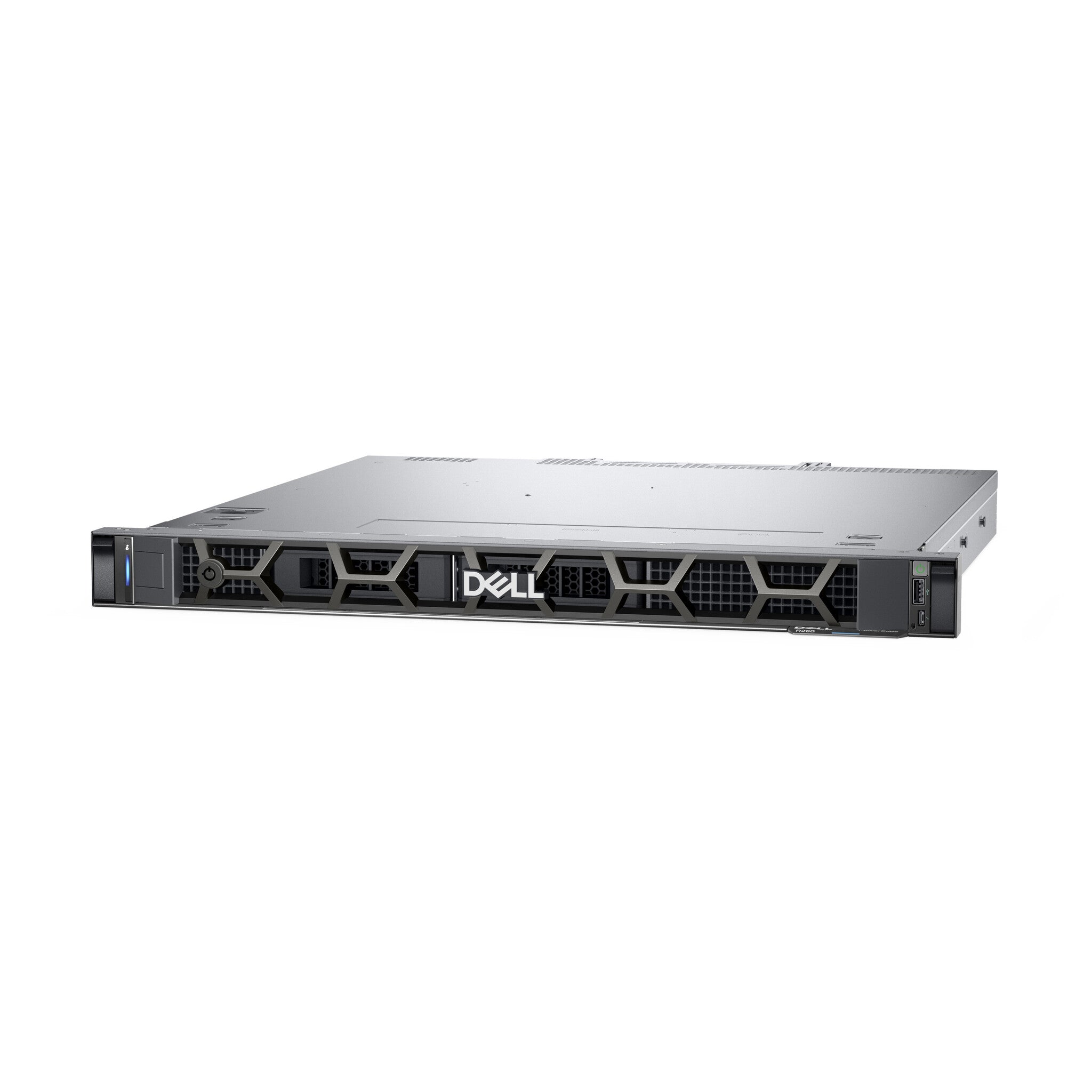

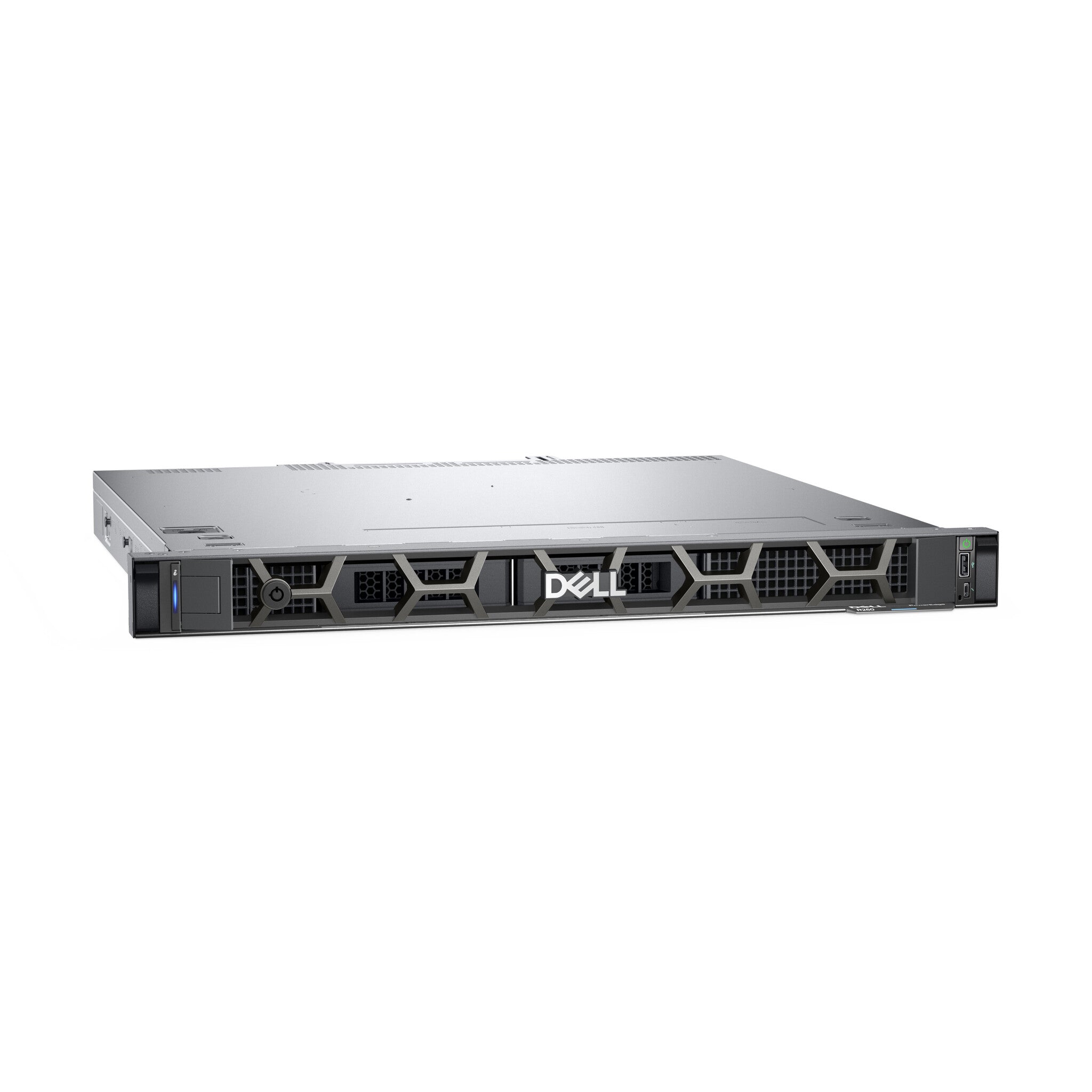

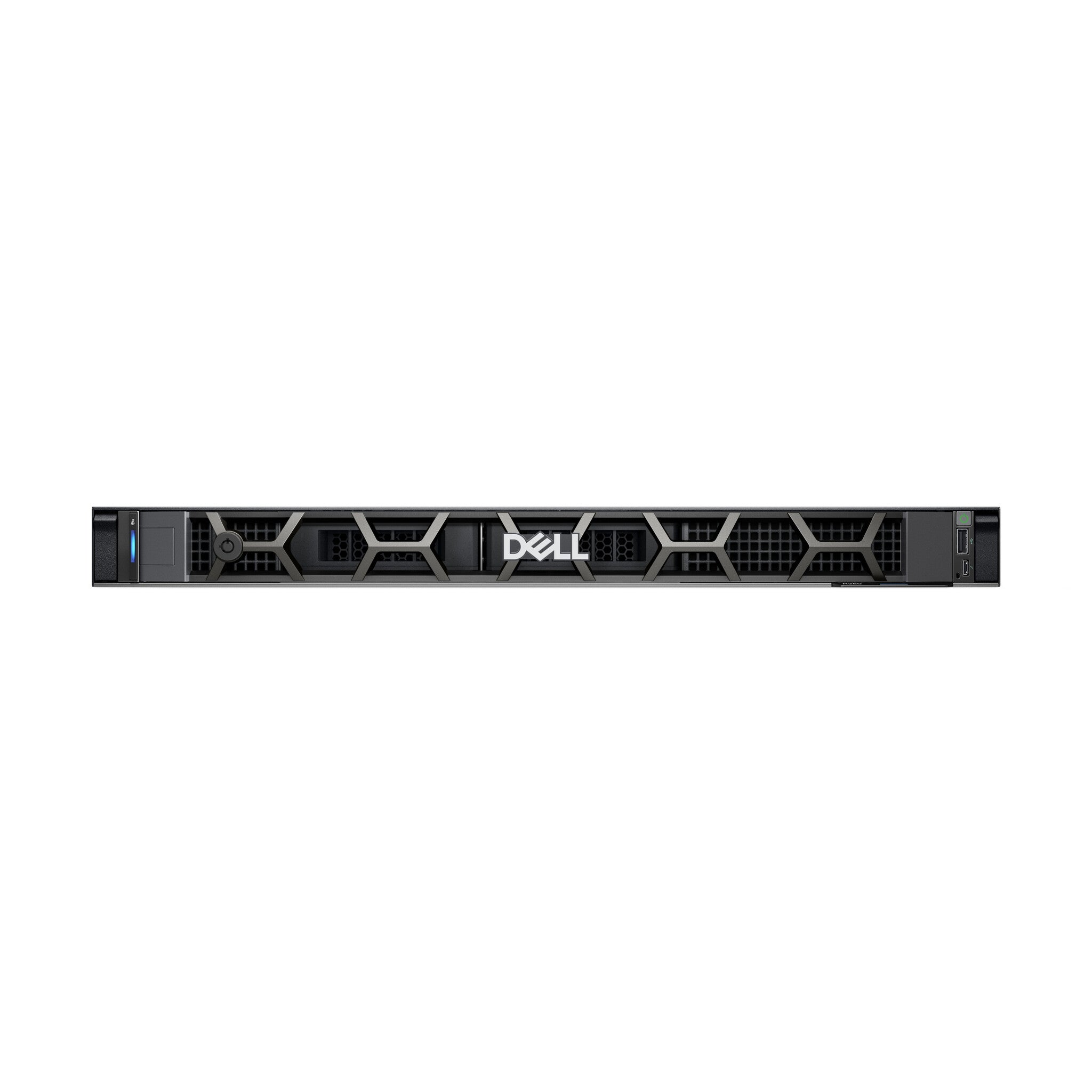

DELL PowerEdge R260 server 480 GB Rack (1U) Intel Xeon 6 6333P 3.1 GHz 16 GB DDR5-SDRAM 700 W
DELL PowerEdge R260 server 480 GB Rack (1U) Intel Xeon 6 6333P 3.1 GHz 16 GB DDR5-SDRAM 700 W
DELL PowerEdge R260 server 480 GB Rack (1U) Intel Xeon 6 6333P 3.1 GHz 16 GB DDR5-SDRAM 700 W
DELL PowerEdge R260 server 480 GB Rack (1U) Intel Xeon 6 6333P 3.1 GHz 16 GB DDR5-SDRAM 700 W
DELL PowerEdge R260 server 480 GB Rack (1U) Intel Xeon 6 6333P 3.1 GHz 16 GB DDR5-SDRAM 700 W
DELL PowerEdge R260 server 480 GB Rack (1U) Intel Xeon 6 6333P 3.1 GHz 16 GB DDR5-SDRAM 700 W
DELL PowerEdge R260 server 480 GB Rack (1U) Intel Xeon 6 6333P 3.1 GHz 16 GB DDR5-SDRAM 700 W
DELL PowerEdge R260 server 480 GB Rack (1U) Intel Xeon 6 6333P 3.1 GHz 16 GB DDR5-SDRAM 700 W

DELL PowerEdge R260 server 480 GB Rack (1U) Intel Xeon 6 6333P 3.1 GHz 16 GB DDR5-SDRAM 700 W

DELL
£3,799.99
Stock Available: 0
  • No OS
  • Intel Xeon 6 6333P (18MB Cache, 3.1GHz)
  • 16GB DDR5-SDRAM (1 x 16) & 480GB SSD
  • iDRAC9, Enterprise 16G

The 1U, single-socket Dell PowerEdge R260 is a short-depth form factor for customers desiring flexibility, affordability and processing power.

Processor
Processor threads 12
Memory types supported by processor DDR5-SDRAM
Memory clock speeds supported by processor 4800 MHz
System bus rate 16 GT/s
Thermal Design Power (TDP) 65 W
Number of processors installed 1
Processor cache 18 MB
Performance cores 6
Processor boost frequency 5.2 GHz
Processor frequency 3.1 GHz
Processor model 6333P
Processor family Intel Xeon 6
Processor manufacturer Intel
Memory
Maximum internal memory 128 GB
Memory data transfer rate 5600 MT/s
Memory slots 4x DIMM
ECC Yes
Memory layout (slots x size) 1 x 16 GB
Buffered memory type Unregistered (unbuffered)
Internal memory type DDR5-SDRAM
Internal memory 16 GB
Storage
Drive writes per day (DWPD) 1
Optical drive type No
Hot-Plug support Yes
Supported RAID controllers PERC H355 Adapter LP
RAID support No
Number of SSDs supported 6
SSD size 2.5"
Supported SSD sizes 2.5"
SSD interface SATA III
SSD capacity 480 GB
Number of SSDs installed 1
Total storage capacity 480 GB
Network
LAN controller Broadcom 5720
Ethernet LAN Yes
Cabling technology 10/100/1000Base-T(X)
Ethernet interface type Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity 1
Serial ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 2.0 ports quantity 2
Ethernet LAN (RJ-45) ports 2
Design
Bezel Yes
Product colour Black
Chassis type Rack (1U)
Performance
Trusted Platform Module (TPM) Yes
Remote administration iDRAC9, Enterprise 16G
Software
Compatible operating systems Canonical Ubuntu Server LTSMicrosoft Windows Server with Hyper-VRed Hat Enterprise LinuxSUSE Linux Enterprise ServerVMware ESXi
Operating system installed No
Power
Power cable current 10 A
Power cable connector 2 C14 coupler
Power cable connector 1 C13 coupler
Power cable length 2 m
Power supply input voltage 200 - 240 V
Number of main power supplies 1
Power supply 700 W
Redundant power supply (RPS) support No
Operational conditions
Non-operating altitude 0 - 12000 m
Operating altitude 0 - 3048 m
Storage relative humidity (H-H) 5 - 95%
Storage temperature (T-T) -40 - 65 °C
Certificates
80 PLUS certification 80 PLUS Titanium
General
Product family PowerEdge
Carbon footprint
Total carbon footprint (kg of CO2e) 950
Total carbon emissions, standard deviation (kg of CO2e) 711
Carbon emissions, manufacturing (kg of CO2e) 304
Carbon emissions, logistics (kg of CO2e) 95
Carbon emissions, energy usage (kg of CO2e) 541.5
Carbon emissions, end-of-life (kg of CO2e) 9.5
PAIA version 1.3.2, 2024
Weight & dimensions
Height 42.8 mm
Width 482 mm
Packaging content
Packaging content 1U/2U 2/4-Post Static Rails,Riser Config 1, Gen4 Riser
Other features
Target workload Read Intensive (RI)
Data transfer rate 6 Gbit/s
Bytes per sector 512e
