DeepCool CH260 Micro Tower Black
Couldn't load pickup availability
- Micro Tower PC Gaming
- micro ATX, Mini-ATX, Mini-ITX
- Supported HDD sizes: 2.5,3.5"
- Number of 2.5" bays: 1 Number of 3.5" bays: 1
- Side window
- Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass
- Black
The CH260 is an expanded version of the classic DeepCool ITX case CH160, it is capable of containing up to M-ATX motherboard and inherited with the high airflow legacy thanks to the full steel mesh panel.
GO MICRO

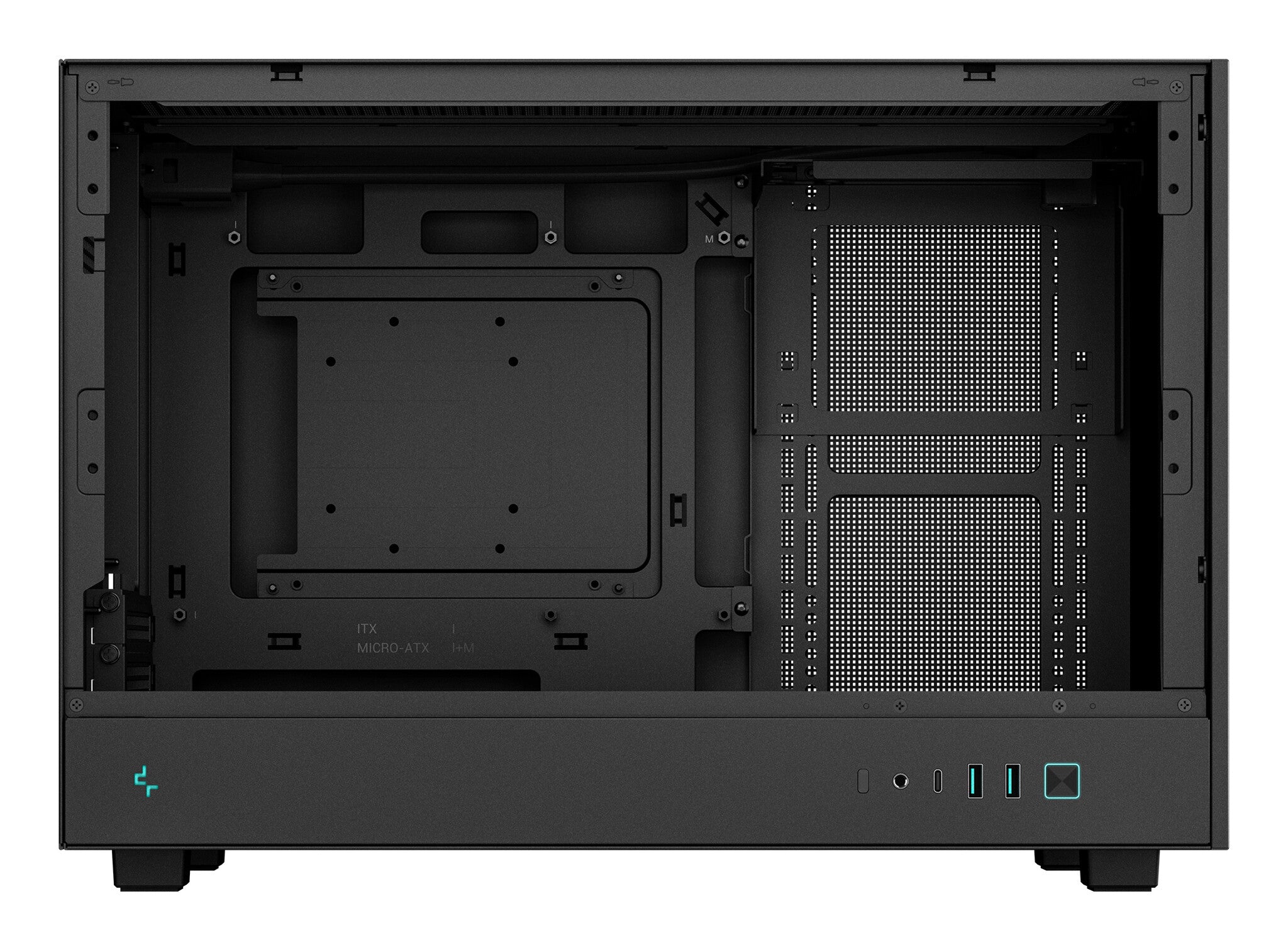

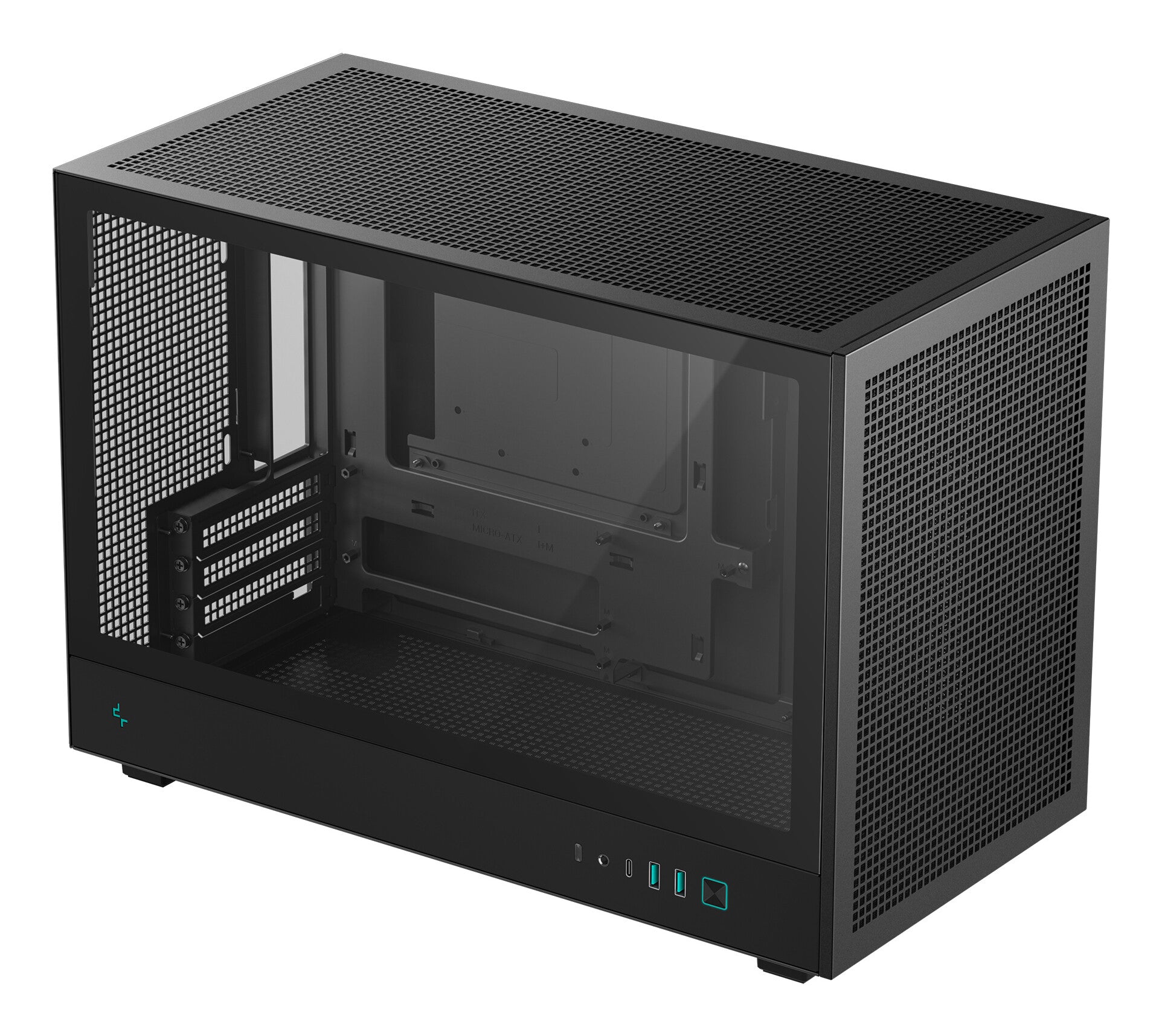

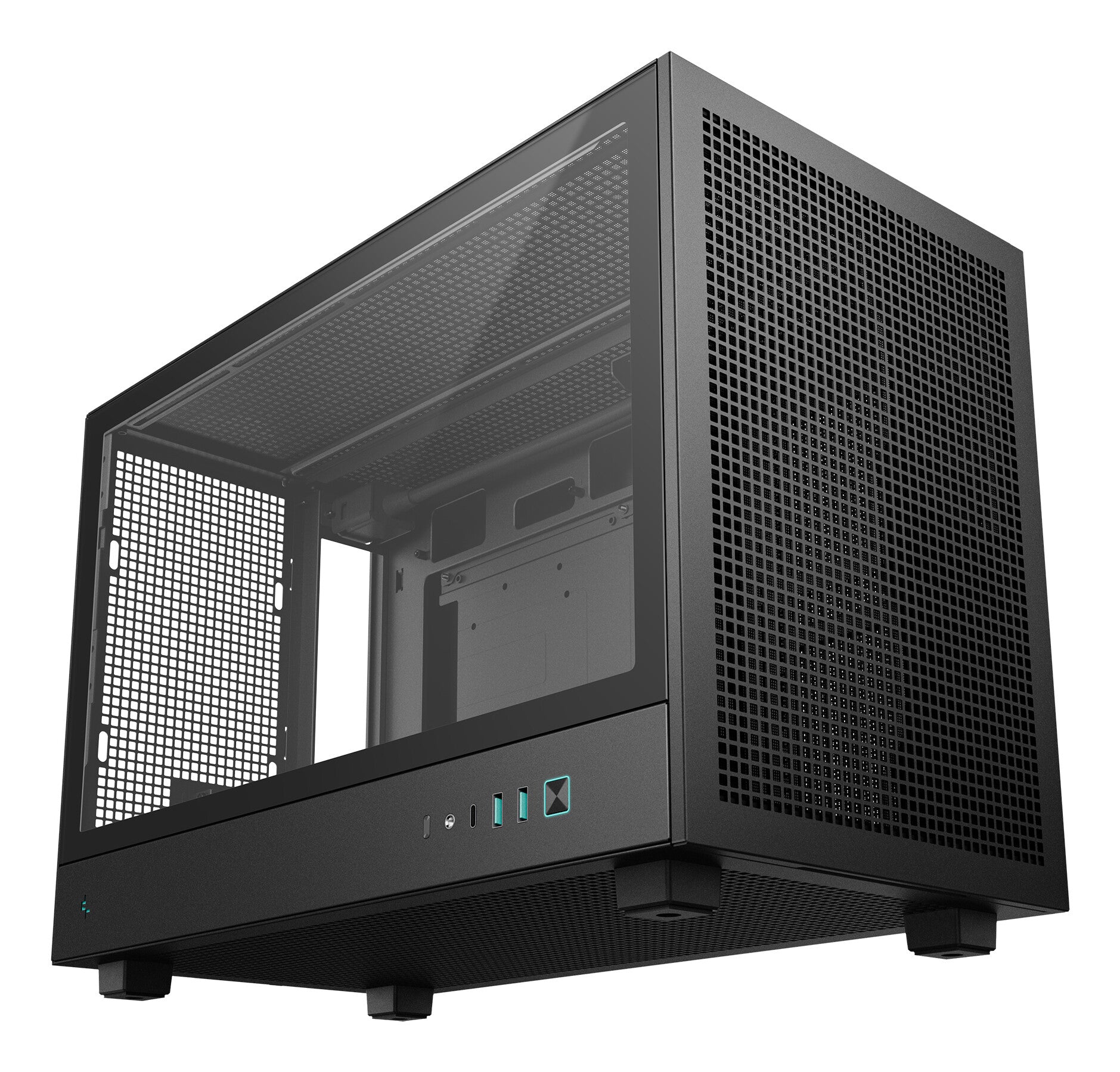

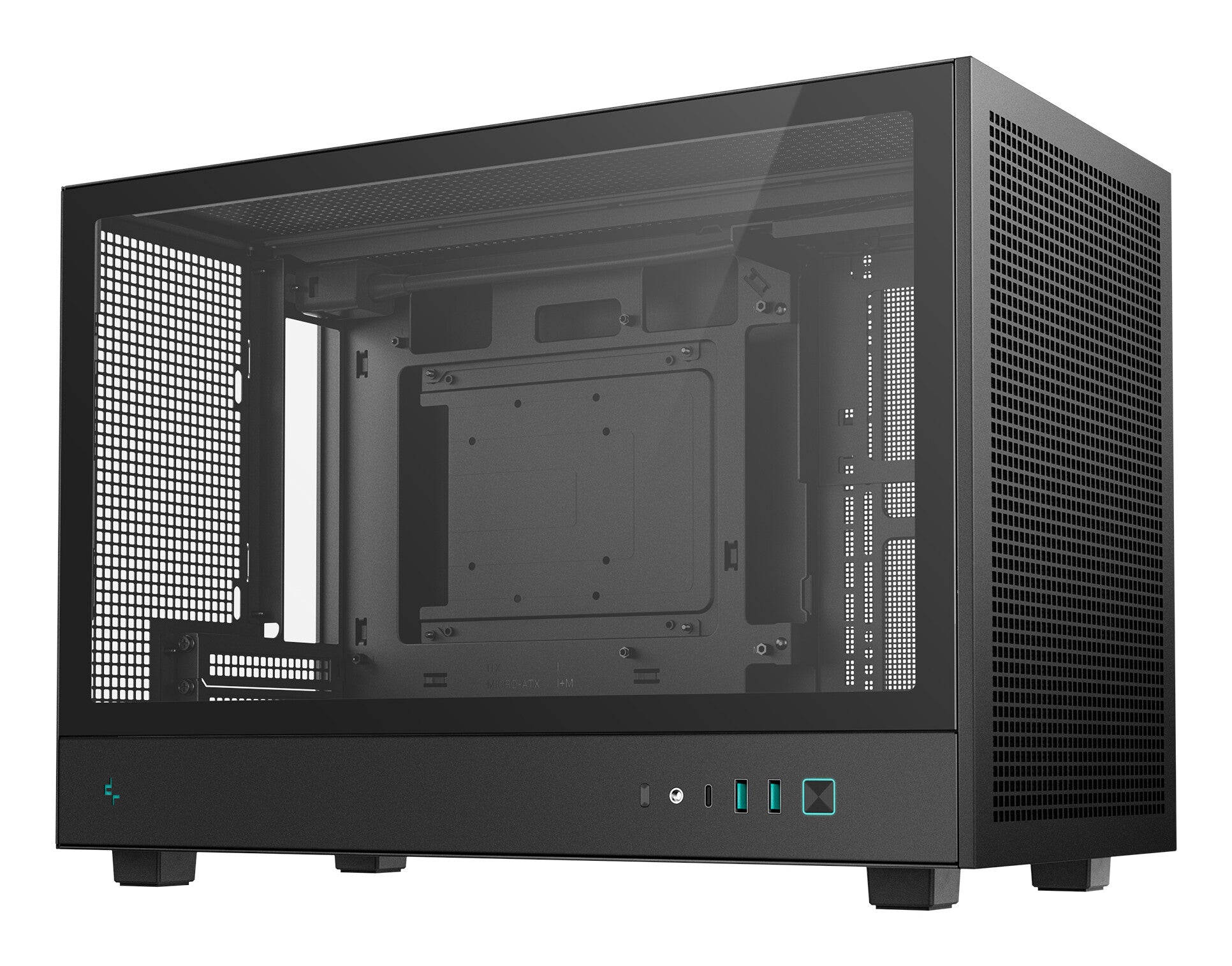

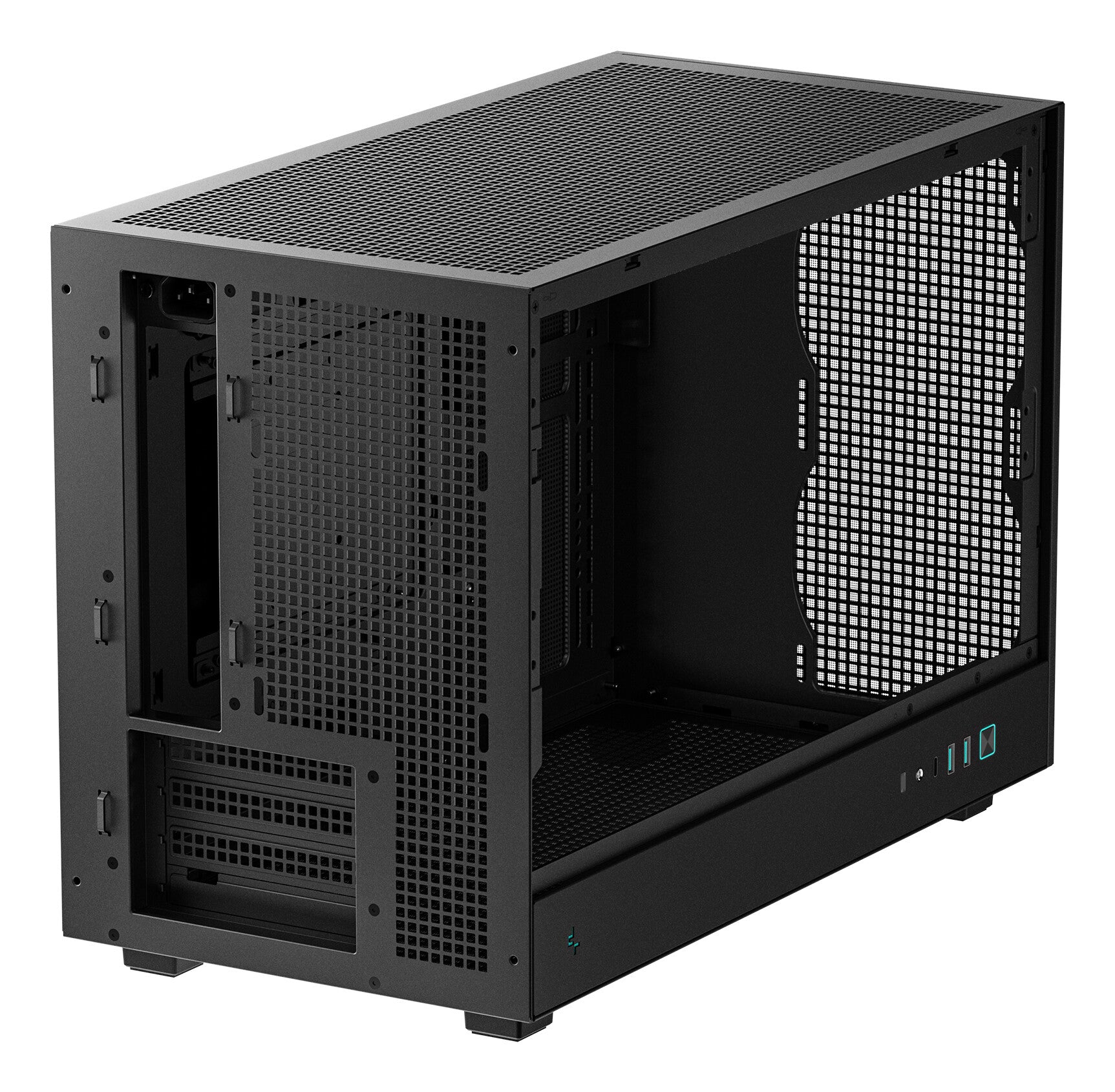

The Micro Form Factor CH260 comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance of 29.6mm in the backplane.
SMALL SIZE OUTSIDE, FULL SIZE INSIDE

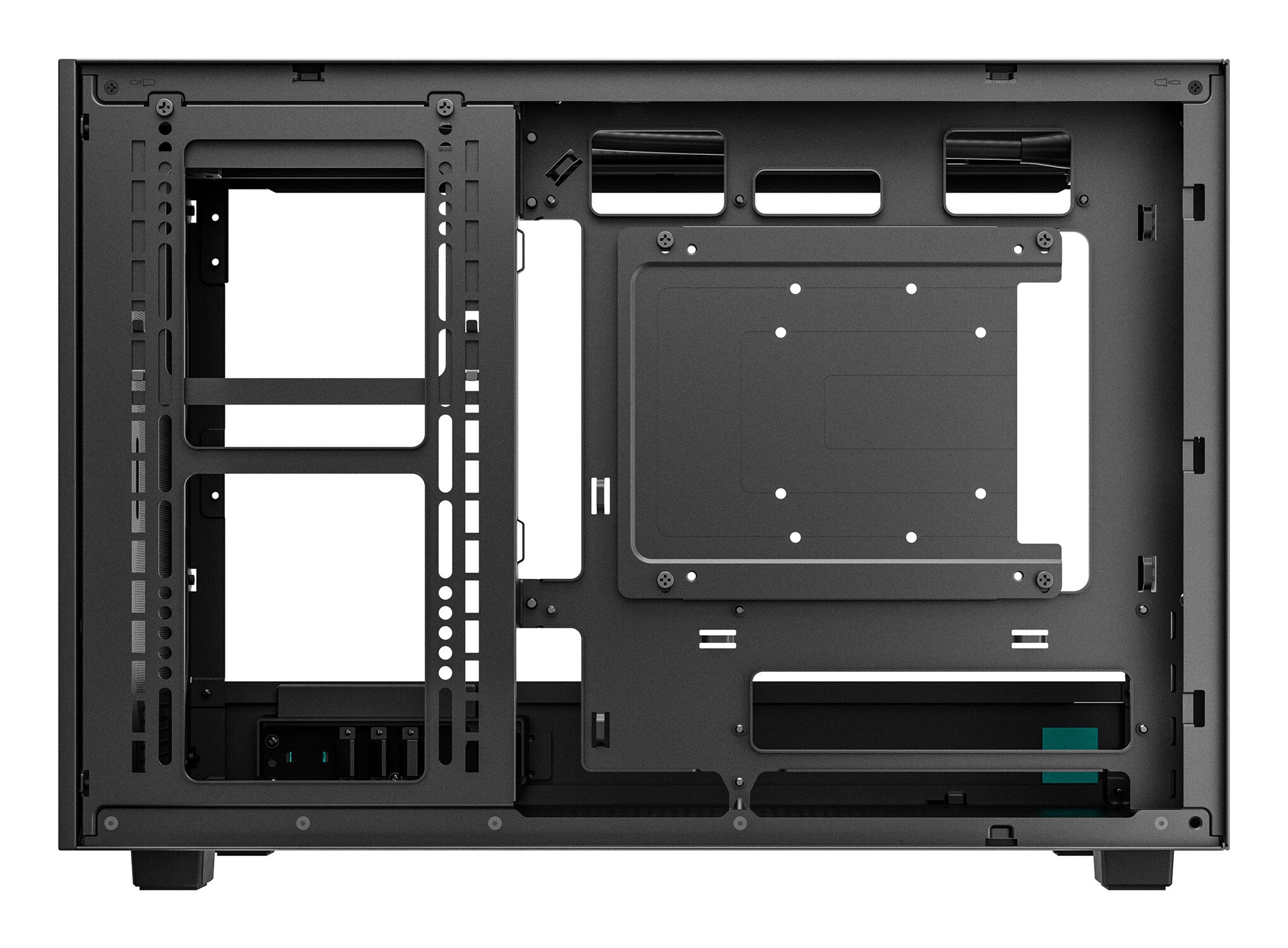

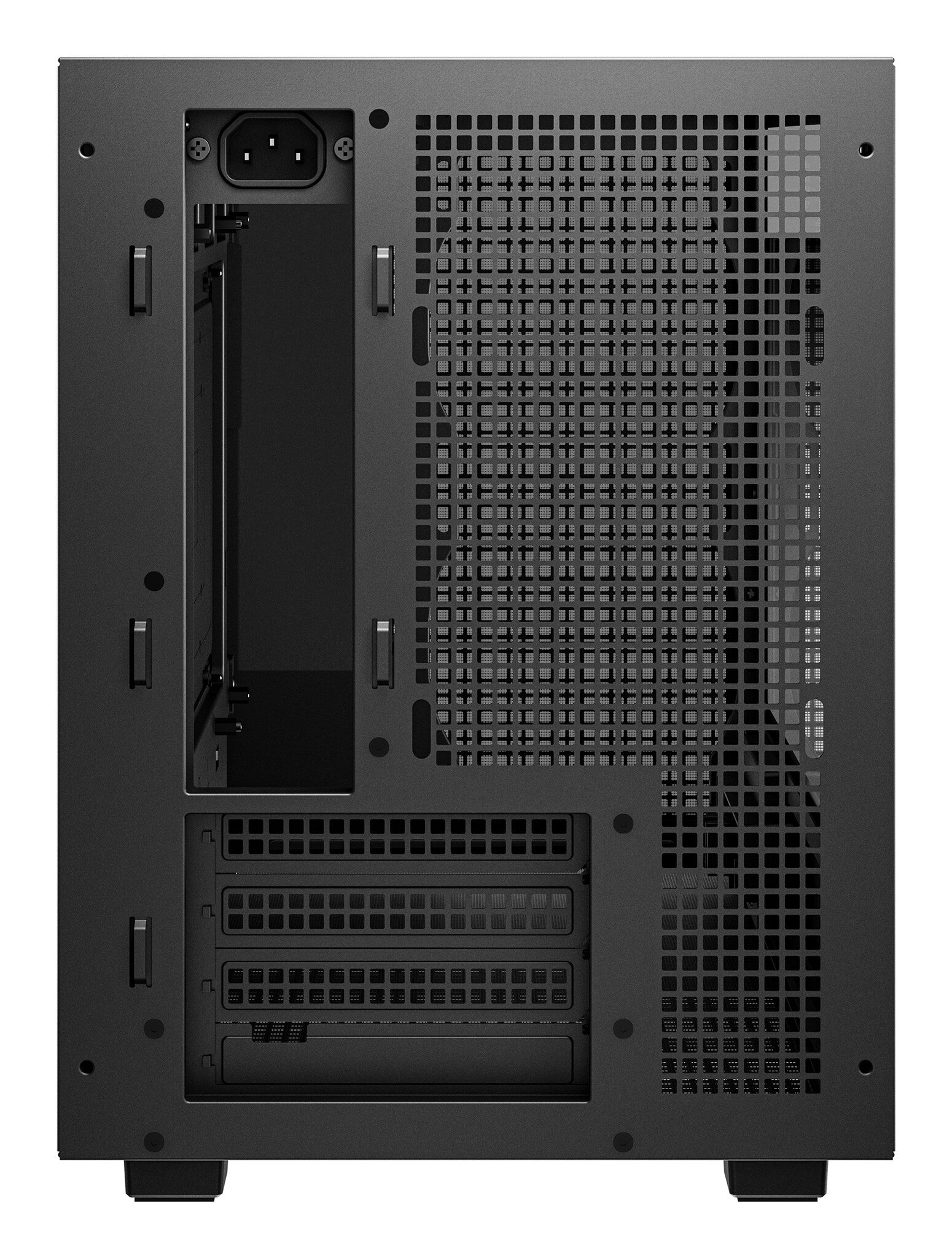

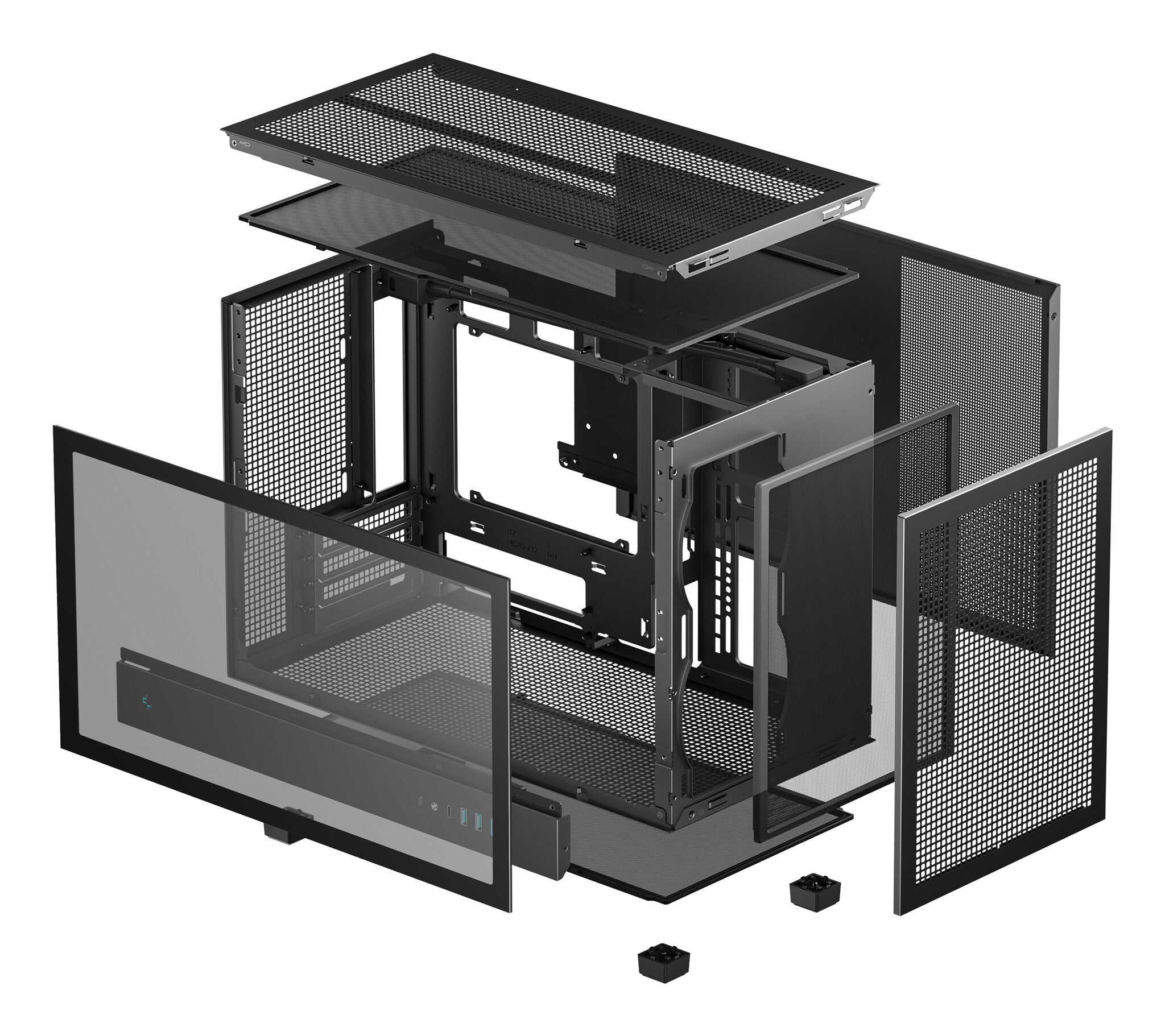

The CH260 provides multiple options in key components compatibility which can support full-size GPU up to 388mm in length or goes even longer to 413mm without front fan placement. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.
UNCOMPROMISED VENTILATION

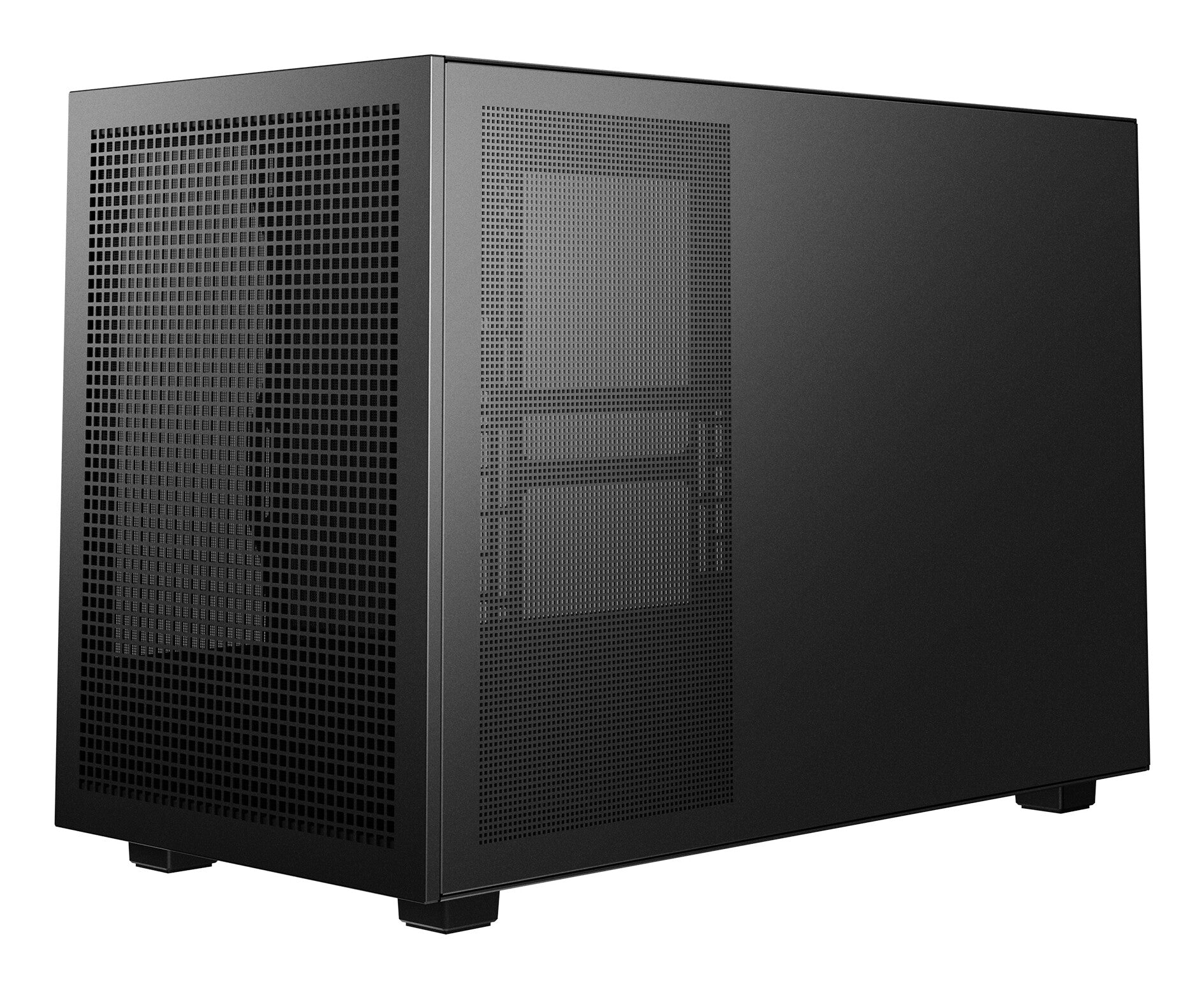

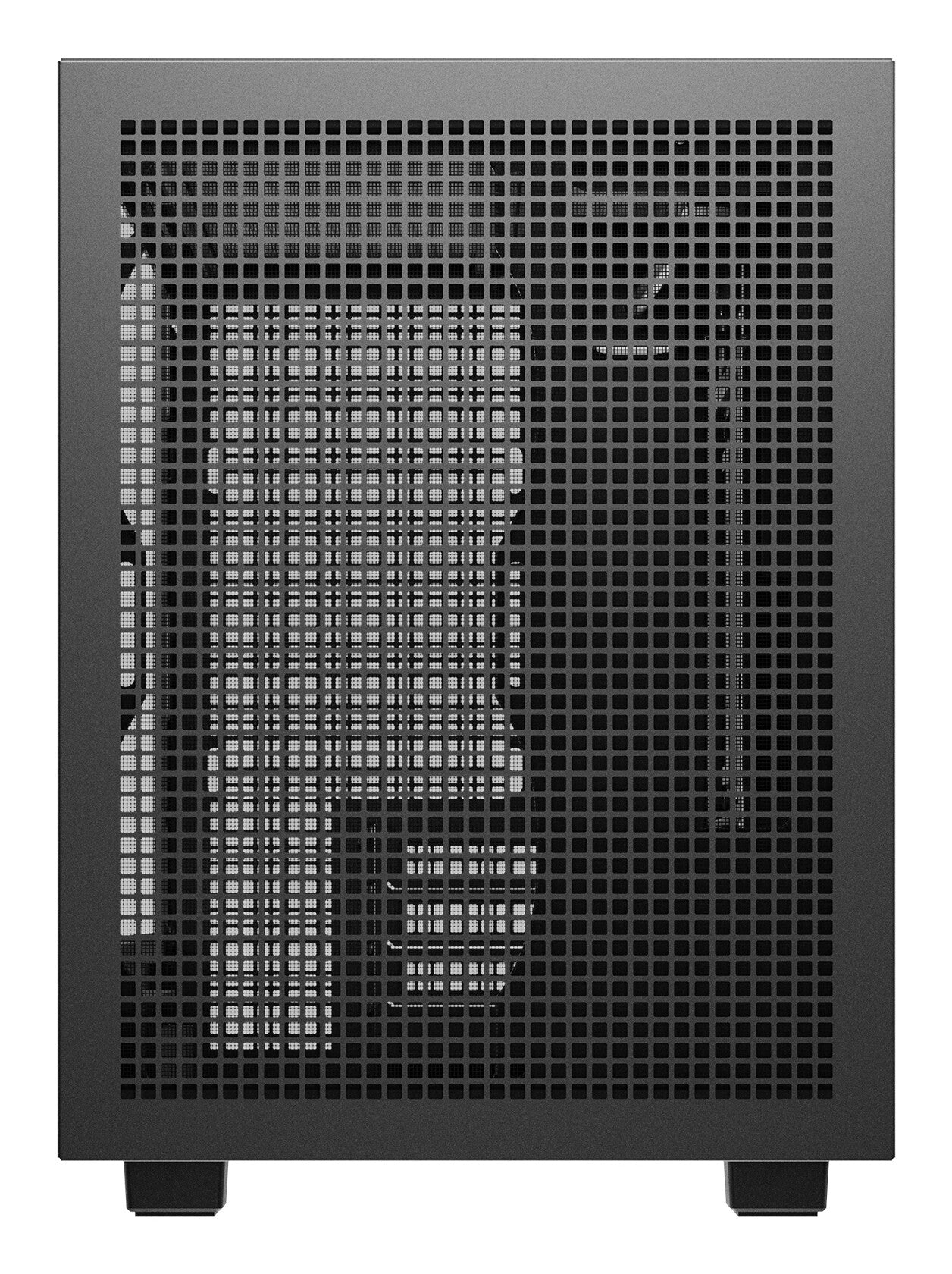

The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on top or a 174mm high tower heat sink on the CPU.
| Design | |
|---|---|
| Maximum graphics card length | 41.3 cm |
| Maximum CPU cooler height | 17.4 cm |
| Suitable for | Gaming |
| Side window | Yes |
| Number of expansion slots | 4 |
| Number of internal 3.5" bays | 1 |
| Number of 2.5" bays | 1 |
| Number of 3.5" bays | 1 |
| Supported motherboard form factors | micro ATX, Mini-ATX, Mini-ITX |
| Product colour | Black |
| Material | Acrylonitrile butadiene styrene (ABS), SPCC, Tempered glass |
| Type | PC |
| Form factor | Micro Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | PS2 |
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 120,240,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Front fans diameters supported | 120 mm |
| Number of front fans supported (max) | 2 |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Weight | 5.3 kg |
| Height | 312.5 mm |
| Depth | 438 mm |
| Width | 225 mm |
