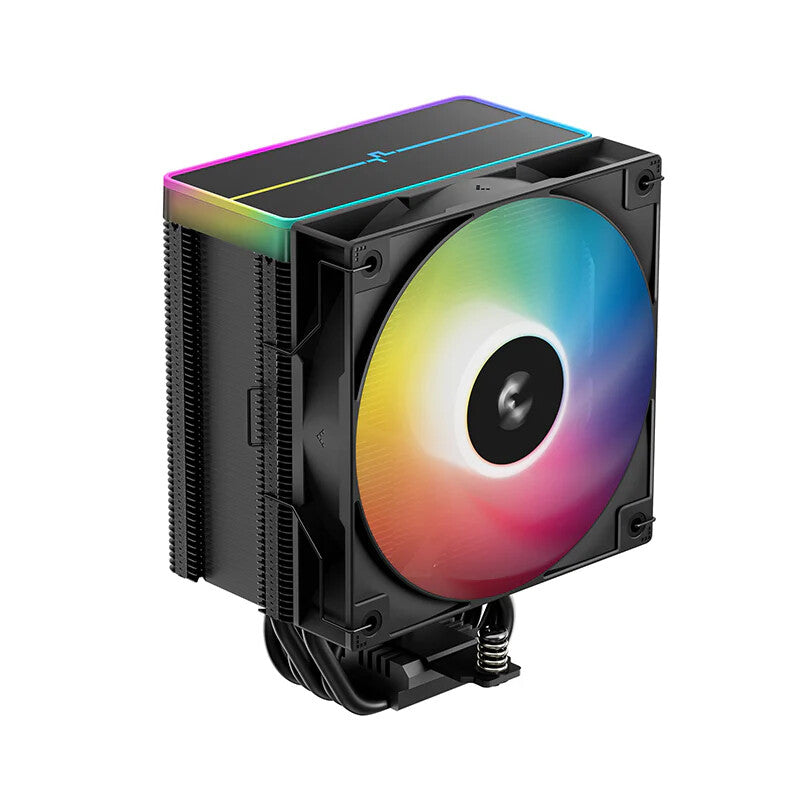

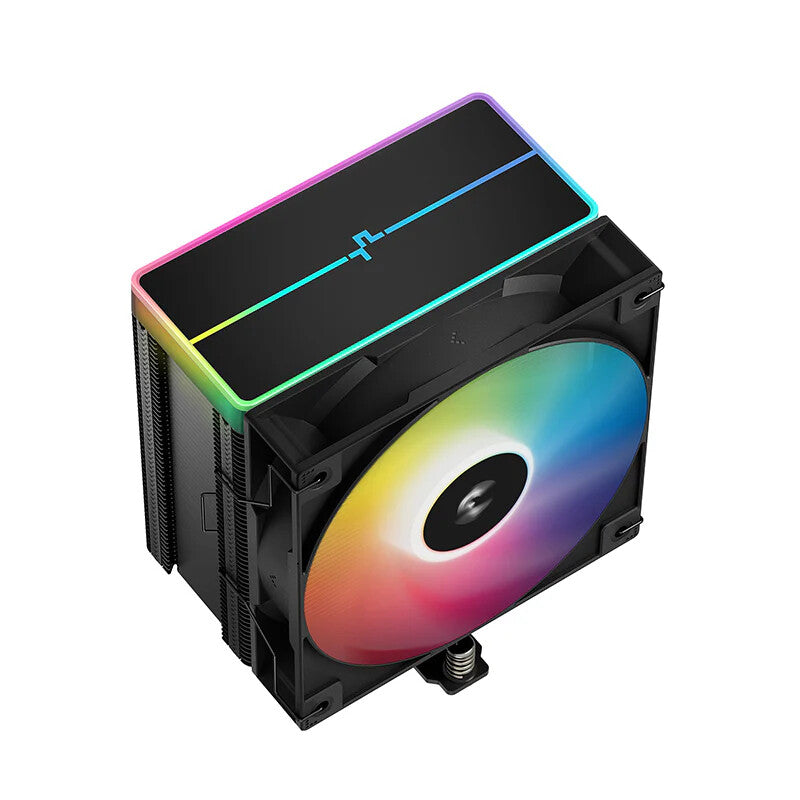

The DeepCool AG500 BK ARGB is a high-performance CPU air cooler engineered to deliver exceptional thermal control for modern desktop processors. With a single-tower design, this cooler features five direct-contact copper heatpipes and a dense fin stack for efficient heat dissipation.

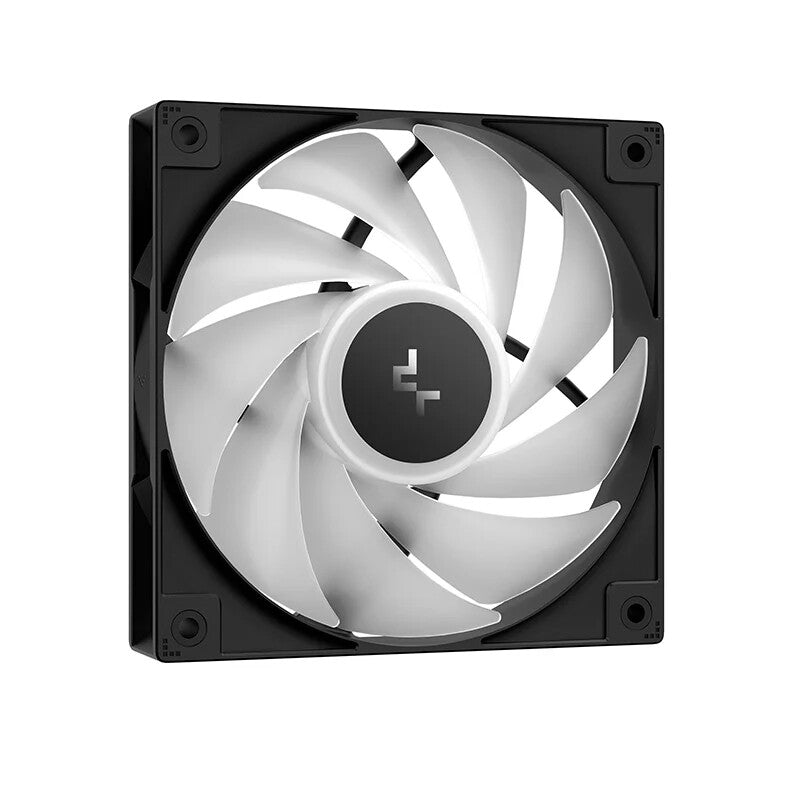

Equipped with a powerful 120mm PWM fan that offers both strong airflow and low acoustic output, the AG500 is ideal for users seeking reliable cooling without excess noise. The fan includes addressable RGB lighting to add vibrant, customizable effects to your build.

A unique offset heatpipe layout improves RAM compatibility, allowing full access to memory slots. The streamlined installation process ensures easy mounting on both Intel and AMD platforms.

Key Features:
High Thermal Performance: Supports up to 240W TDP for powerful CPUs

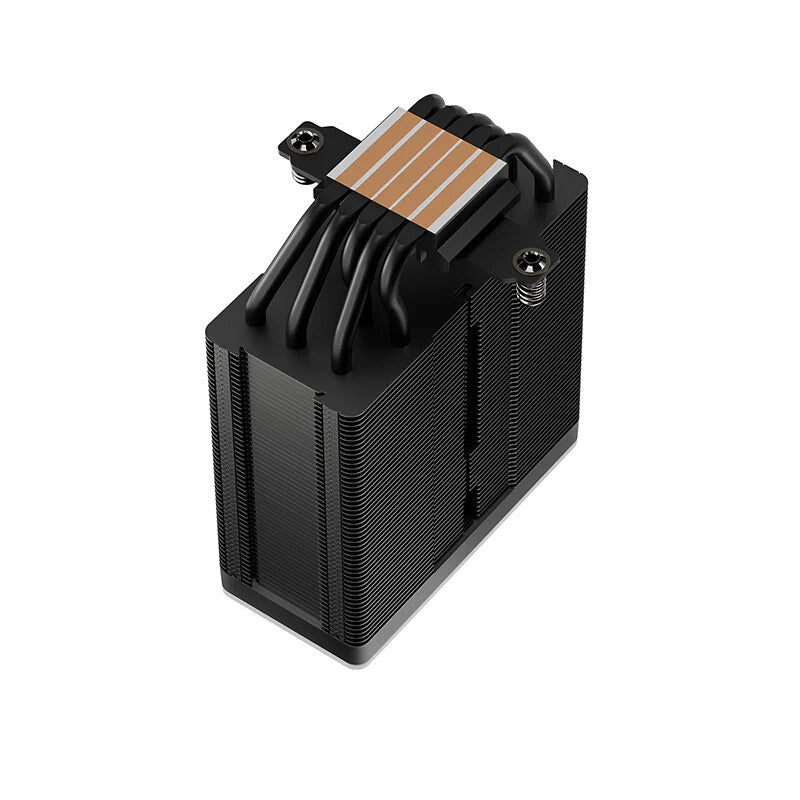

Optimized Heat Dissipation: Five 6mm copper heatpipes with direct contact
Quiet Operation: PWM-controlled 120mm fan with hydro bearing for long-lasting, silent performance
ARGB Lighting: Addressable RGB fan with customizable lighting via compatible headers
Wide Compatibility: Supports a broad range of Intel and AMD sockets
RAM Clearance: Offset design for full RAM slot access
Easy Installation: Tool-free brackets and thermal paste included

Specifications:

General:

Model:
R-AG500-BKAMMN-GJD

Color:
Black

Cooler Type:
Single-tower air cooler

TDP Rating:
240W

Heatsink:

Dimensions:
120 × 93 × 150 mm (L × W × H)

Material:
Aluminum fins with 5 × Ø6 mm copper heatpipes

Fan:

Dimensions:
120 × 120 × 25 mm

Speed:
300–1850 RPM ±10%

Airflow:
Up to 67.88 CFM

Static Pressure:
Up to 2.04 mmAq

Noise Level:
=29.4 dB(A)

Bearing Type:
Hydro Bearing

Connector:
4-pin PWM

Rated Voltage:
12V DC

Rated Current:
0.14 A

Power Consumption:
1.68 W

RGB Lighting:

Lighting Type:
Addressable RGB (ARGB)

Connector:
3-pin (5V-D-G)

Rated Voltage:
5V DC

Power Consumption:
1.05 W

Compatibility:

Intel Sockets:
LGA1851, LGA1700, LGA1200, LGA1151, LGA1150, LGA1155

AMD Sockets:
AM5, AM4

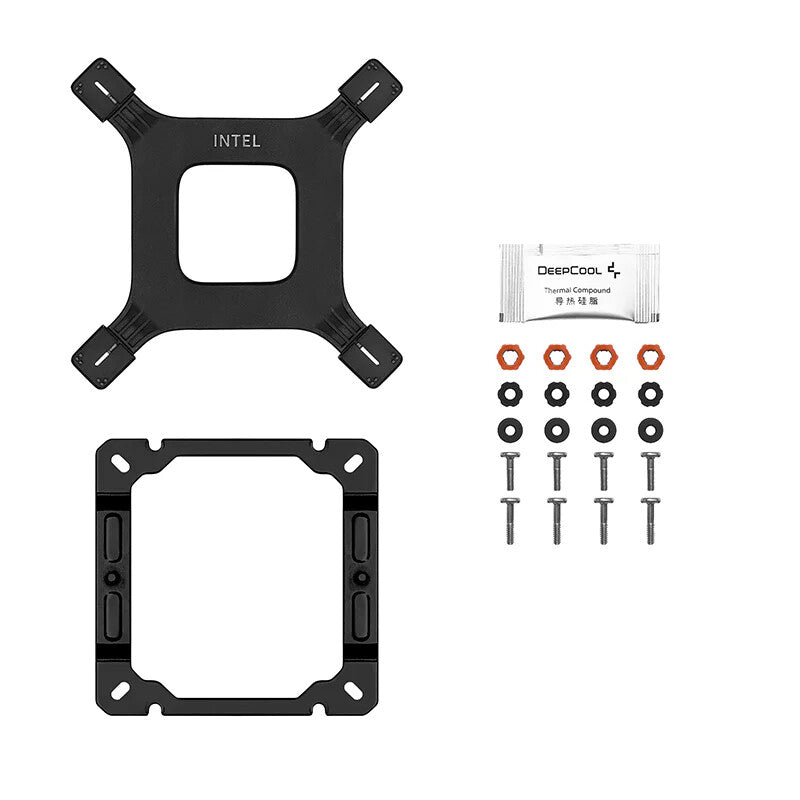

Package Contents:
CPU Cooler
120mm ARGB PWM Fan
Mounting brackets for Intel and AMD
Thermal paste
User manual

Warranty:
3 Years

Performance
Suitable location	Processor
Type	Air cooler
Fan diameter	11.9 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Maximum airflow	67.88 cfm
Maximum air pressure	2.04 mmH2O
Bearing type	Hydraulic
Fan noise level (max)	29.4 dB
Fan speed (min)	300 RPM
Fan speed (max)	1950 RPM

Design
Product colour	Black
Number of fans	1 fan(s)
Number of heat pipes	5
Illumination LED	Yes
LED connector type	3-pin
Fan connector	4-pin

Power
Fan power consumption	1.68 W
LED power consumption (fan)	3.2 W
Fan current	0.14 A
Fan voltage	12 V
LED voltage	5 V

Weight & dimensions
Width	95 mm
Radiator width	6 cm
Radiator depth	12 cm
Radiator height	15.5 cm
Depth	125 mm
Height	160 mm
Weight	857 g
Fan dimensions (W x D x H)	120 x 120 x 25 mm
Heat pipes diameter	6 mm
