£833.99

Stock Available: 0
  • Thermal transfer
  • 203 x 203 DPI
  • Print speed: 254 mm/sec
  • Built-in barcodes: CODABAR (NW-7), EAN128, EAN13, EAN8, PDF417, UPC-E
  • USB port
  • 12.2 kg

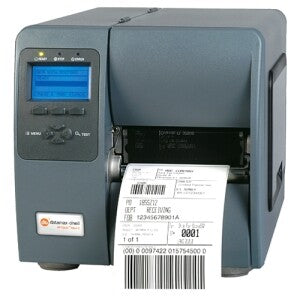

The M-Class is a compact, industrial-strength printer that offers outstanding value with a broad range of features. The smaller footprint is ideal when users need the power of industrial printers but must consider space limitations. The M-Class has proven to be the perfect solution for warehouse, healthcare, logistics and retail applications. The modular design of the M-Class makes maintenance and part replacement easy, and the flexible design allows for a variety of options to be upgraded in the field.

- Form factor with a small footprint for an industrial printer to fit in tight spaces where work space is a premium
- Rugged construction features a precision die-cast aluminum frame
- Real time clock for accurate date-time labeling
- Multi-language menu available in English, Spanish, German, Italian, and French
- 5-button, 128x64 LCD graphical backlit display is easy to read, enabling user-friendly label set-up and configuration
- Field installable options such as cutters, peel & present sensors, and thermal transfer option can be added easily to upgrade a base printer
- Versatile media compatibility supports coated side in or coated side out ribbons without reconfiguring the printer or purchasing additional options resulting in easier ribbon inventory management
- IntelliSEAQ™ printhead: proactive diagnostic tools allow easy access to printhead performance and history
- The M-Class utilizes widely used DPL and supports MCL designer and 123 Print. With the PL-Z and PL-I printer language emulations, users can easily integrate the printer to existing solutions

Printing
Maximum print height 10.8 cm
Print speed 254 mm/sec
Maximum resolution 203 x 203 DPI
Print technology Thermal transfer
Paper handling
Media thickness 0.0635 - 0.254 mm
Maximum roll diameter 20.3 cm
Core diameter 7.62 cm
Media thickness (imperial) 0.0025 - 0.01"
Autocutter No
Ports & interfaces
Optional connectivity Ethernet, Wireless LAN
Standard interfaces USB
RS-232 ports 1
Parallel ports quantity 1
USB 2.0 ports quantity 1
USB port Yes
Performance
Security algorithms WPA2
Image formats supported BMP, IMG, PCX
Number of fonts 10
Fixed length Yes
Built-in barcodes CODABAR (NW-7), EAN128, EAN13, EAN8, PDF417, UPC-E
Flash memory 8 MB
Internal memory 64 MB
Design
Product colour Black
Power
Power requirements 90-132/180-264 VAC, 47-63Hz
General
Product family M-Class
System requirements
Compatible operating systems Windows, NT, XP, Vista
Mac compatibility No
Operational conditions
Operating temperature (T-T) 4 - 35 °C
Weight & dimensions
Weight 12.2 kg
Height 259 mm
Depth 462 mm
Width 257 mm
Packaging content
Drivers included Yes
Logistics data
Harmonized System (HS) code 84433210
Other features
Network ready No
LED indicators Yes
