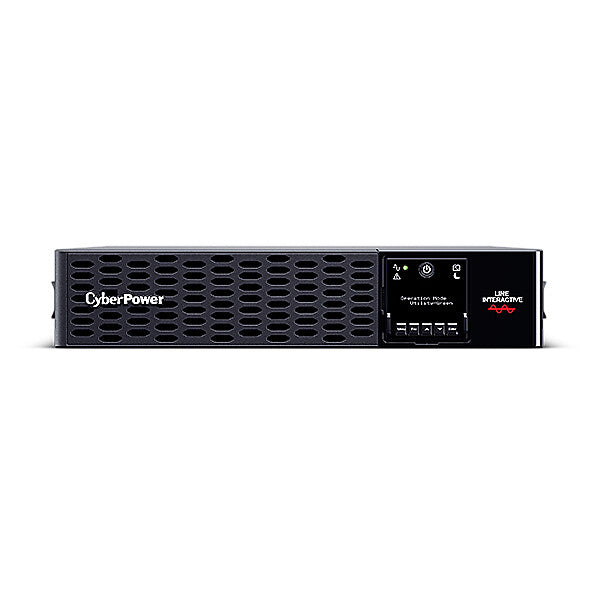

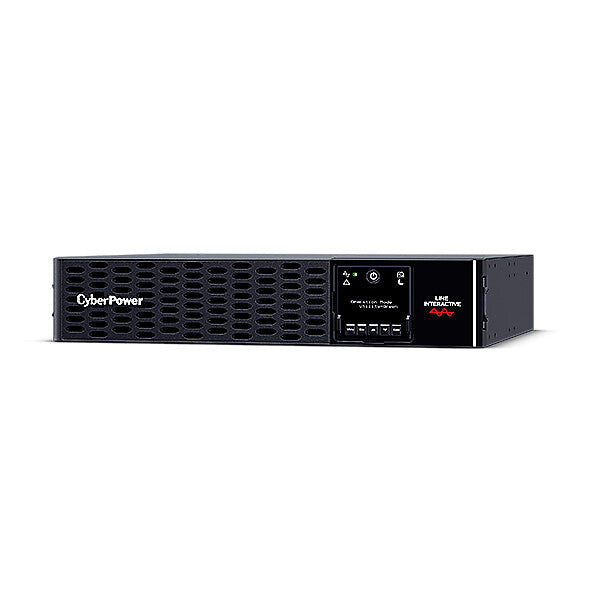

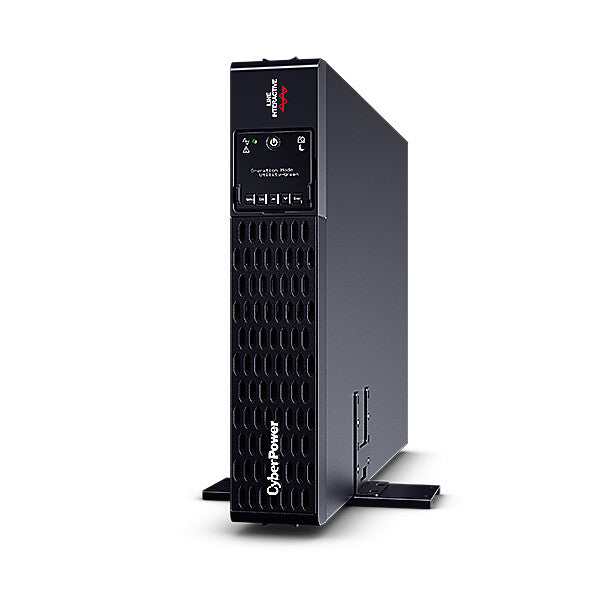

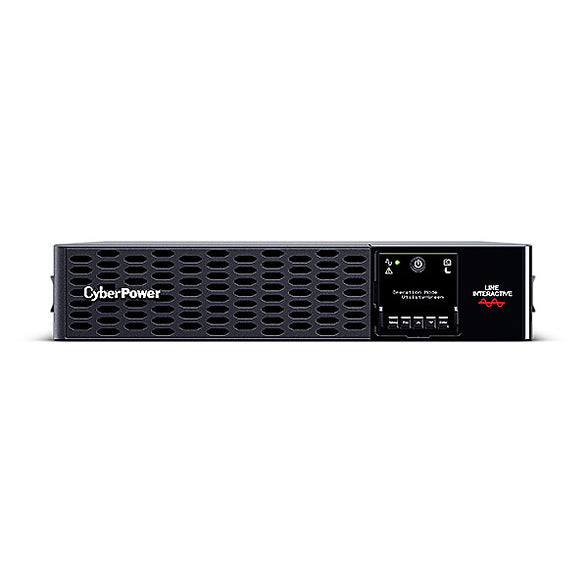

CyberPower PR3000ERTXL2U uninterruptible power supply (UPS) Line-Inter

CyberPower

iFrame

£1,329.25

Stock Available: 4

Reliable Power Quality
Electricity Cost Savings
Device Protection Design
Automatic Voltage Regulation (AVR)
Real-time LCD Readout

CyberPower PR3000ERTXL2U with rackmount design guarantees power backup protection for home theater systems, multimedia devices, IT equipment, computers, workstations, NAS/Storage devices, telecom devices, networking devices, and surveillance systems. The UPS adopts line-interactive topology with Automatic Voltage Regulation (AVR) function, and offers stabilized Pure Sine Wave output to ensure high power quality.

The UPS’s output power factor is 1, which means it is capable of connecting to more critical loads than conventional UPS. It also features Battery Management Technology to help batteries obtain optimal life span by balancing battery string voltage. Two-phase battery charging can charge the battery quickly and safely. The hot-swappable battery packs allow for easy maintenance without power interruption. Its multi-functional matrix LCD supports intuitive operation and quick configuration. The LCD panel is also rotatable to meet installation requirements.

Features
Socket circuit breaker	Yes
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
Management protocols	SNMP/HTTP
Audible alarm(s)	Yes
Web-based management	Yes
Power protection features	Overload, Short circuit
Surge protection	Yes
EMI/RFI noise filtering	Yes
Power Factor Correction (PFC) type	Active
Power factor	1
Number of input phases	1
Response time	4 ms
Transfer time (Line Mode to Battery Mode)	4 ms
Surge energy rating	2430 J
Maximum current	16 A
Automatic Voltage Regulation (AVR)	Yes
Output frequency	50/60 Hz
Output operation voltage (max)	240 V
Output operation voltage (min)	220 V
Input frequency	50/60 Hz
Input operation voltage (max)	288 V
Input operation voltage (min)	159 V
Waveform	Pure sine
Output power	3000 W
Output power capacity	3 kVA
UPS topology	Line-Interactive

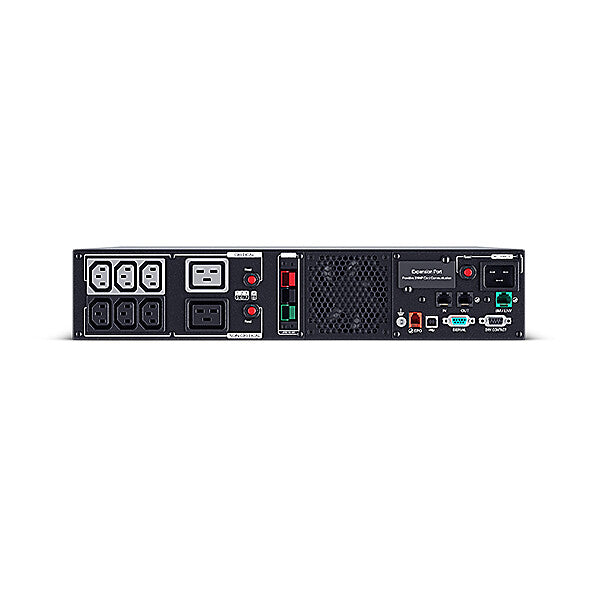

Ports & interfaces
Emergency Power Off (EPO) connector	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN (RJ-45) ports	2
Serial interface type	RS-232
Serial interface	Yes
USB port	Yes
AC outlets quantity	8 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler, C19 coupler

Battery
Replacement battery cartridge	RBP0129
Hot-swap battery	Yes
Battery recharge time	3 h
Typical backup time at half load	7.1 min
Typical backup time at full load	1.7 min
Number of batteries supported	4
Battery technology	Sealed Lead Acid (VRLA)

Design
LED indicators	Error, Operation
Display type	LCD
Cable length	2.4 m
Rack capacity	2U
Housing material	Metal
Product colour	Black
Form factor	Rackmount/Tower

Operational conditions
Non-operating altitude	0 - 15000 m
Operating altitude	0 - 3000 m
Storage relative humidity (H-H)	0 - 95%
Operating relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C

Sustainability
Sustainability certificates	ENERGY STAR

Certificates
Certification	CE , FCC Class A , UL , CISPR 22 Class A , IEC62040-2 , RCM , VCCI , EN 61000-3-2
Compliance certificates	RoHS

Weight & dimensions
Weight	32.8 kg
Height	86.5 mm
Depth	500 mm
Width	433 mm

Packaging data
Package volume	40800 cm³
Package weight	41 kg
Package height	275 mm
Package depth	620 mm
Package width	560 mm

Logistics data
Country of origin	China
Harmonized System (HS) code	8504408590

Other features
Bypass	GreenPower UPS

CyberPower PR3000ERTXL2U uninterruptible power supply (UPS) Line-Interactive 3 kVA 3000 W 8 AC outlet(s)
