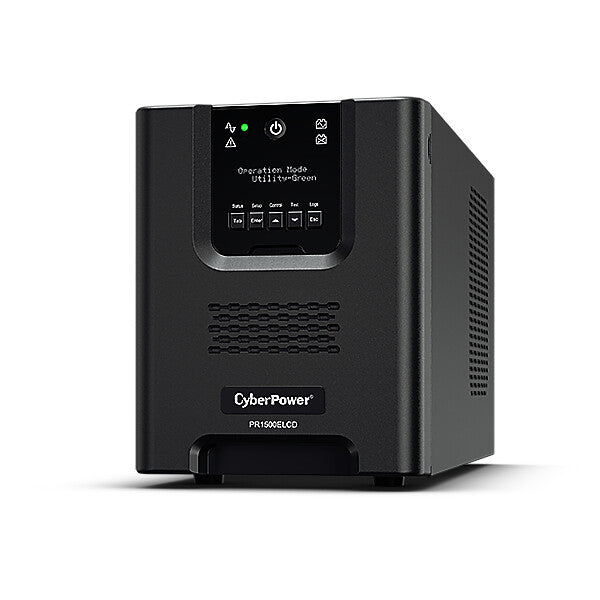

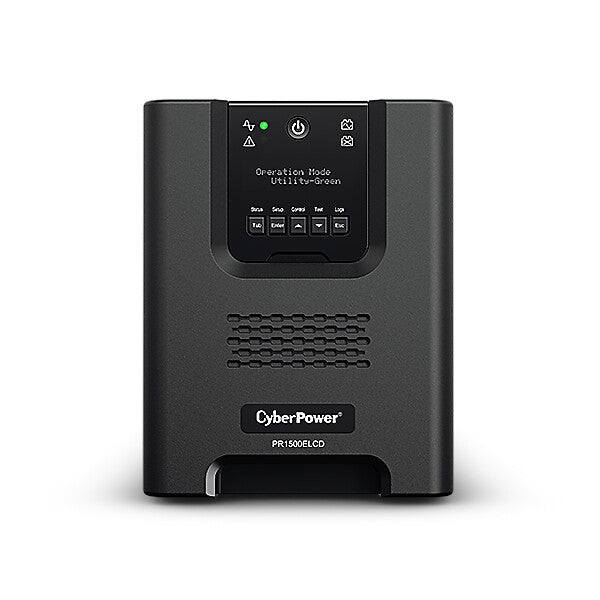

CyberPower PR1500ELCD uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 1350 W 8 AC outlet(s)
Couldn't load pickup availability
- Line-Interactive
- 1.5 kVA 1350 W
- Waveform: Pure sine
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black

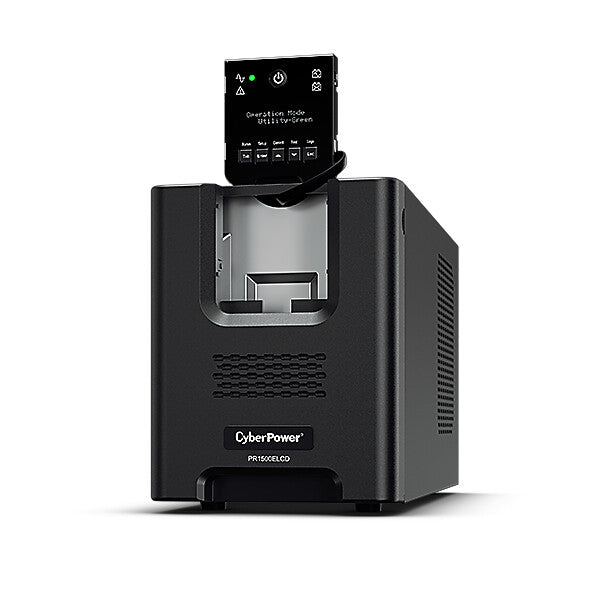

The Professional Tower Series UPS provides advanced level of power protection to servers, telecom equipments, VOIP, internet working hardware and other mission-critical applications. Featuring Pure Sinewave output and Automatic Voltage Regulation (AVR) stabilizes the AC signal and maintains a safe voltage, it allows the UPS to maintain safe power levels for the connected equipment without resorting to battery power. Its detachable, remote-controllable Multifunction LCD Readout can be mounted on the wall or in the control center nearby to provide highest convenience and flexibility under different management scenarios.
The optional SNMP/HTTP Remote Management Capability enables remote management and control of the system through standard web browser. Together with the included PowerPanel® Business Edition management software, it could provide corporate servers and critical workstations comprehensive network power management including unattended-shutdown, event logging, reporting, and notifications.
| Features | |
|---|---|
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Audible alarm(s) | Yes |
| Power protection features | Overload |
| Surge protection | Yes |
| EMI/RFI noise filtering | Yes |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.9 |
| Response time | 4 ms |
| Surge energy rating | 405 J |
| Maximum current | 10 A |
| Automatic Voltage Regulation (AVR) | Yes |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 230 V |
| Output operation voltage (min) | 230 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 301 V |
| Input operation voltage (min) | 151 V |
| Waveform | Pure sine |
| Output power | 1350 W |
| Output power capacity | 1.5 kVA |
| UPS topology | Line-Interactive |

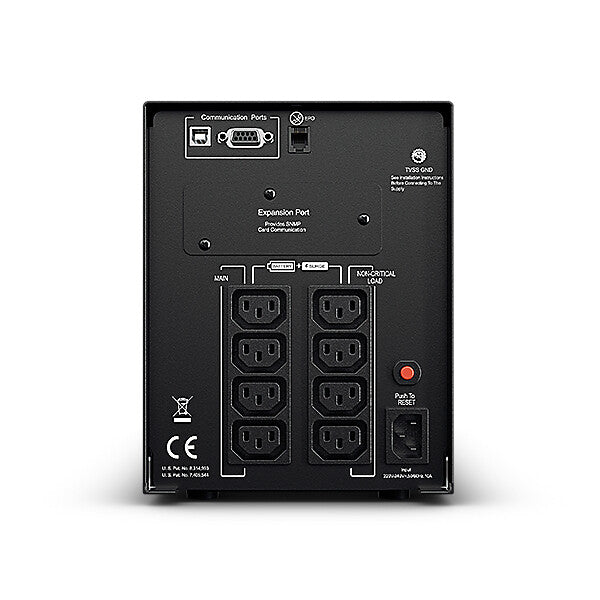

| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Number of output IEC jumpers | 1 |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Hot-swap battery | Yes |
| Battery recharge time | 8 h |
| Typical backup time at half load | 17 min |
| Typical backup time at full load | 5 min |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| LED indicators | Error, Operation |
| Display type | LCD |
| Housing material | Metal |
| Product colour | Black |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Cables included | USB cable |
| Certificates | |
|---|---|
| Certification | CE, EAC, RCM, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 25.1 kg |
| Height | 221 mm |
| Depth | 432 mm |
| Width | 170 mm |
| Packaging data | |
|---|---|
| Package weight | 27 kg |
| Package height | 360 mm |
| Package depth | 579 mm |
| Package width | 316 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 8504408590 |
| Other features | |
|---|---|
| Compatible operating systems | Windows 7 / Vista / XP / 2000, Server 2003 / 2008, Linux |
| Overload protection | Yes |
