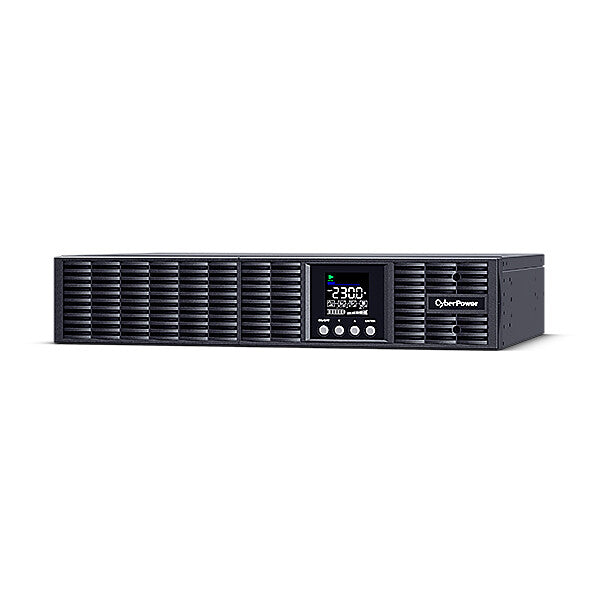

CyberPower OLS1500ERT2UA uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 8 AC outlet(s)
Couldn't load pickup availability
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module Auto-detection
- Critical/Non-critical Load Outlets
- Phone/Fax/Modem/DSL/Network Protection
- Variable Speed Fans
- PowerPanel Management Software

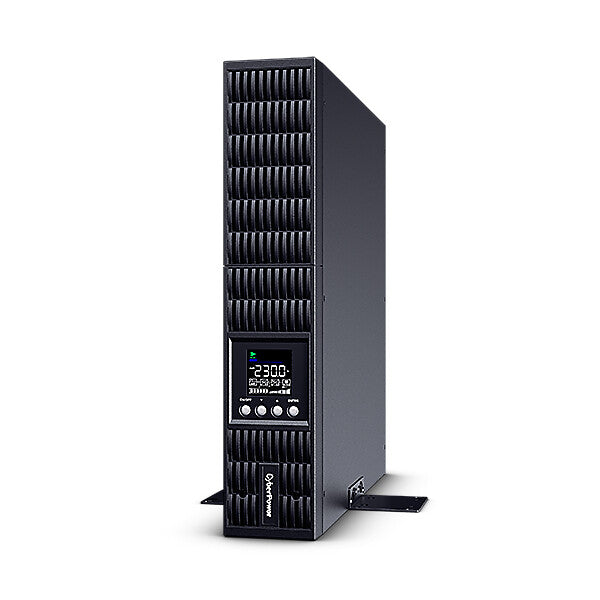

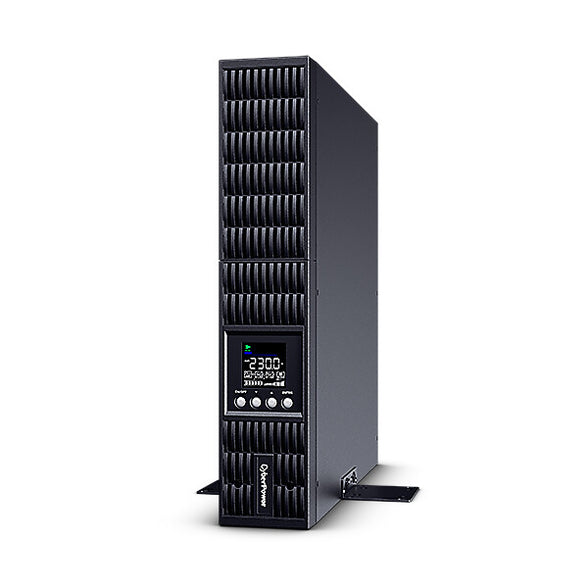

- Rack/Tower Convertible Configurations
- ECO Mode
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- EMI and RFI Filtration
- Color LCD Panel
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
CyberPower OLS1500ERT2UA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment.
The UPS features color LCD panel for users to monitor power system and configure settings easily, and relay-type dry contact to perform local management. This model is designed with extended battery module auto-detection, which can automatically detect the quantity of connected Extended Battery Modules (EBM) to estimate UPS's runtime. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
| Features | |
|---|---|
| Audible alarm modes | Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| Audible alarm(s) | Yes |
| Power protection features | Input fuse, Overload, Short circuit |
| Surge protection | Yes |
| Noise level | 45 dB |
| EMI/RFI noise filtering | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Emergency Power Off (EPO) | Yes |
| Crest factor | 3:1 |
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Efficiency (ECO mode) | 95% |
| Response time | 0 ms |
| Surge energy rating | 363 J |
| Maximum current | 9 A |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 208 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 300 V |
| Input operation voltage (min) | 190 V |
| Waveform | Pure sine |
| Output power | 1350 W |
| Output power capacity | 1.5 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| Emergency Power Off (EPO) connector | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Replacement battery cartridge | BPSE48V40ART2U |
| Charging current | 1.5 A |
| Battery recharge time | 4 h |
| Typical backup time at half load | 15.3 min |
| Typical backup time at full load | 5.3 min |
| Number of batteries supported | 4 |
| Battery voltage | 48 V |
| Design | |
|---|---|
| Display type | LCD |
| Built-in fan | Yes |
| Cable length | 1.5 m |
| Rack capacity | 2U |
| Housing material | Metal |
| Product colour | Black |
| Form factor | Rackmount/Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 1500 m |
| Operating altitude | 0 - 1500 m |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Cables included | USB cable |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 13.8 kg |
| Height | 88 mm |
| Depth | 430 mm |
| Width | 438 mm |
| Packaging data | |
|---|---|
| Package weight | 20.5 kg |
| Package height | 230 mm |
| Package depth | 550 mm |
| Package width | 540 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 8504408590 |
