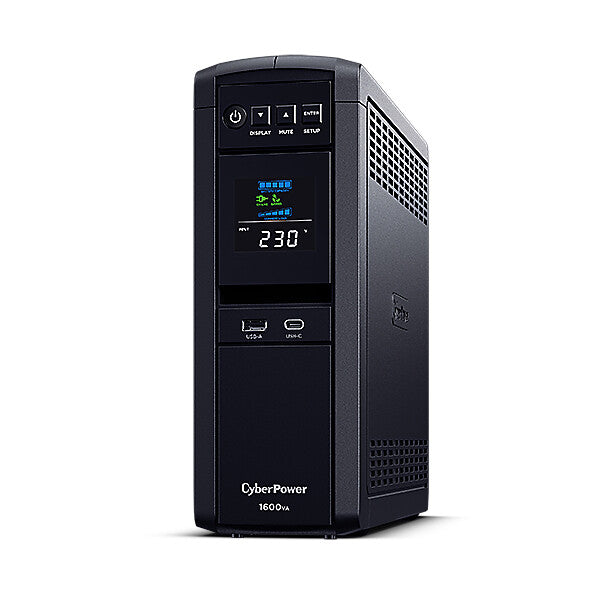

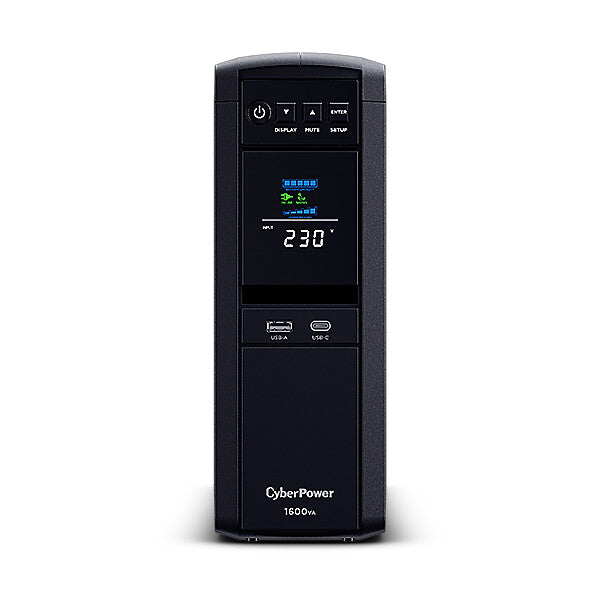

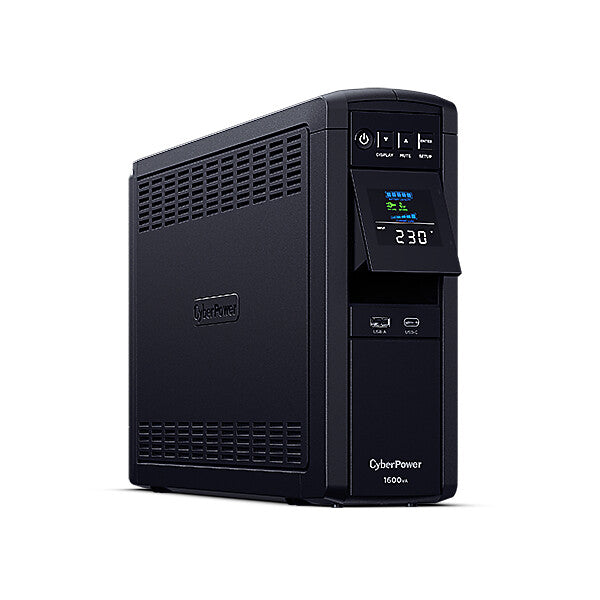

CyberPower CP1600EPFCLCD-UK uninterruptible power supply (UPS) Line-Interactive 1.6 kVA 1000 W 6 AC outlet(s)
Couldn't load pickup availability
- Line-Interactive
- 1.6 kVA 1000 W
- Waveform: Pure sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
CyberPower CP1600EPFCLCD with Pure Sine Wave output safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, this UPS delivers significant energy cost savings over conventional UPS systems.
The UPS provides Automatic Voltage Regulation (AVR) to maintain stable voltage for connected equipment. The product features data line protection with high-speed transmission to safeguard communication equipment against surges/spikes as well as supply 1Gbps speed to transmit data. With tiltable color LCD panel , users can monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and configuration.
| Features | |
|---|---|
| Power source type | AC |
| Detachable power cord | Yes |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Audible alarm(s) | Yes |
| Power protection features | Overload |
| Surge protection | Yes |
| Surge energy rating | 405 J |
| Maximum current | 10 A |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 230 V |
| Output operation voltage (min) | 230 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 271 V |
| Input operation voltage (min) | 169 V |
| Waveform | Pure sine |
| Output power | 1000 W |
| Output power capacity | 1.6 kVA |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Serial ports quantity | 1 |
| USB port type | USB Type A/USB Type-C |
| USB port | Yes |

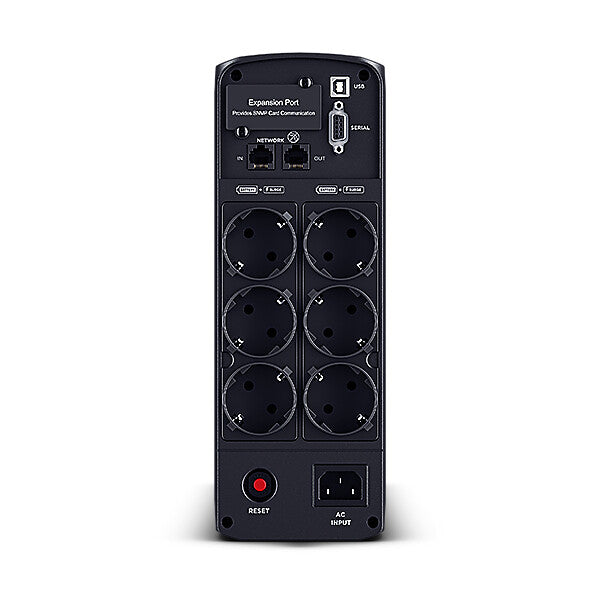

| AC outlets quantity | 6 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | Type F |
| Battery | |
|---|---|
| Replacement battery cartridge | RBP0142 |
| Battery recharge time | 8 h |
| Typical backup time at half load | 9.7 min |
| Typical backup time at full load | 2.6 min |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| LED indicators | Operation |
| Display type | LCD |
| Cable length | 1.83 m |
| Product colour | Black |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 11 kg |
| Height | 280 mm |
| Depth | 355 mm |
| Width | 100 mm |
| Packaging data | |
|---|---|
| Package weight | 13 kg |
| Package height | 370 mm |
| Package depth | 466 mm |
| Package width | 195 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 8504408590 |
