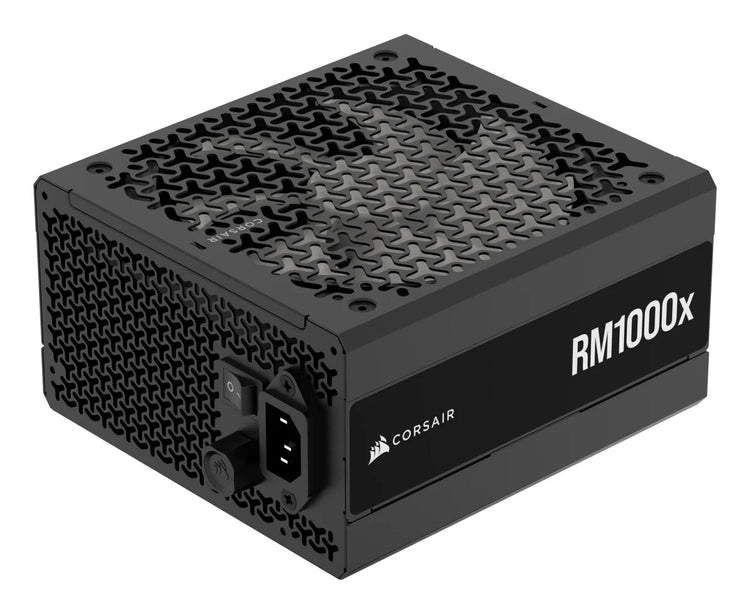

Corsair RM1000x power supply unit 1000 W 24-pin ATX ATX Black
iFrame
£172.99
Couldn't load pickup availability
- Fully modular, Type-5 connectors
- Cybenetics Gold-certified
- ATX 3.1 compliant, supporting PCIe 5.1
- Zero RPM Fan Mode for near-silent operation at lower loads
Power your next build with a CORSAIR RMx Series fully modular PSU for quiet, Cybenetics Gold-certified efficient performance.
| Power | |
|---|---|
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5V) | 25 A |
| Max output current (+12V) | 83.3 A |
| Max output current (+3.3V) | 25 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 9.6 W |
| Combined power (+5V) | 150 W |
| Combined power (+12V) | 1000 W |
| Combined power (+3.3V) | 150 W |
| Maximum input current (@220V) | 5 A |
| Maximum input current (@110V) | 12 A |
| Input current | 12 - 5 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 1000 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| ATX Power connector (24-pin) | Yes |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (6+2 pin) | 4 |
| EPS power connector (4+4 pin) | Yes |
| Number of PATA power connectors | 6 |
| Number of SATA power connectors | 12 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Silent mode | Yes |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Product colour | Black |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 3.65 kg |
| Height | 86 mm |
| Depth | 160 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
