£99.50

Stock Available: 254
  • Fully-modular design for next-level customization
  • InfiniRail™ Fan Mounting System for easier building
  • Includes three RS120 ARGB performance fans
  • Dual 360mm radiator support
  • GPU anti-sag stabilization arm
  • Compatible with reverse connector motherboards

GET READY FOR YOUR NEXT BUILD
NEXT-GEN GPUs ARE COMING

Check which of our components will work with the next-generation of GPUs out of the box.

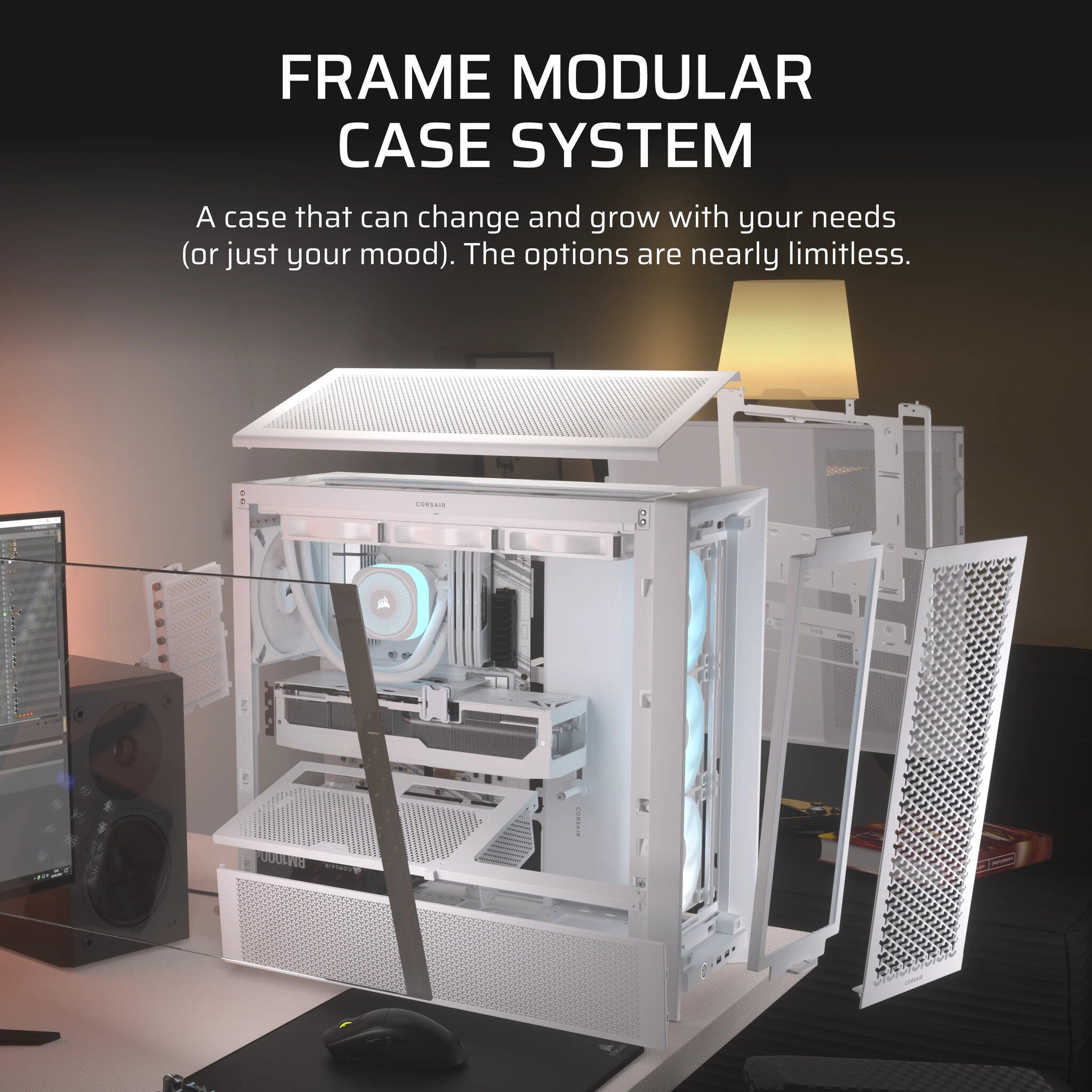

BUILD YOUR WAY
ENDLESS MODULAR POSSIBILITIES

The revolutionary FRAME Modular Case System redefines customization. Want to upgrade the motherboard tray to billet aluminum? Want to replace your front I/O panel for more USB ports? Now you can.

This case evolves with your needs, offering near limitless options for upgrades and changes.

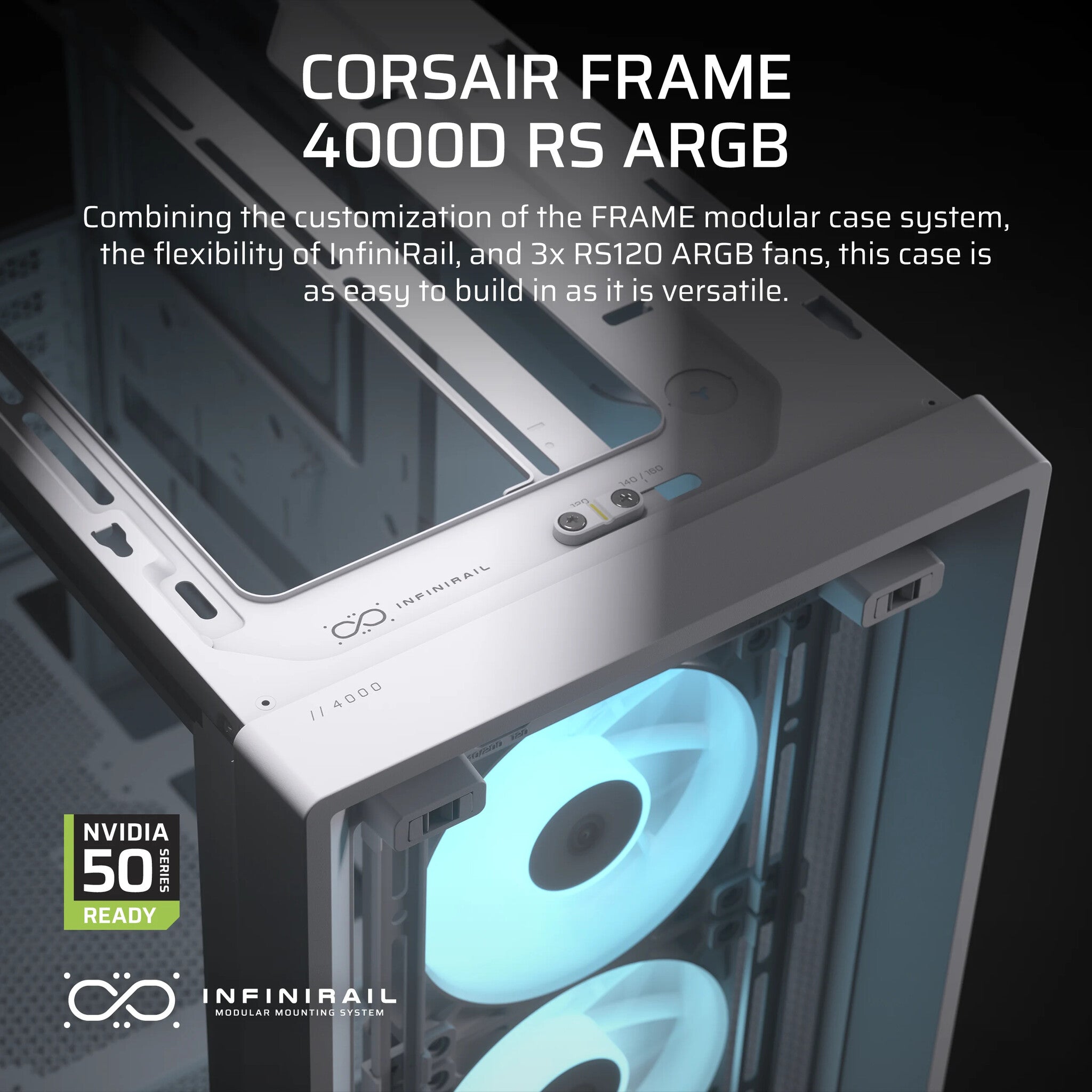

FAN FOCUSED

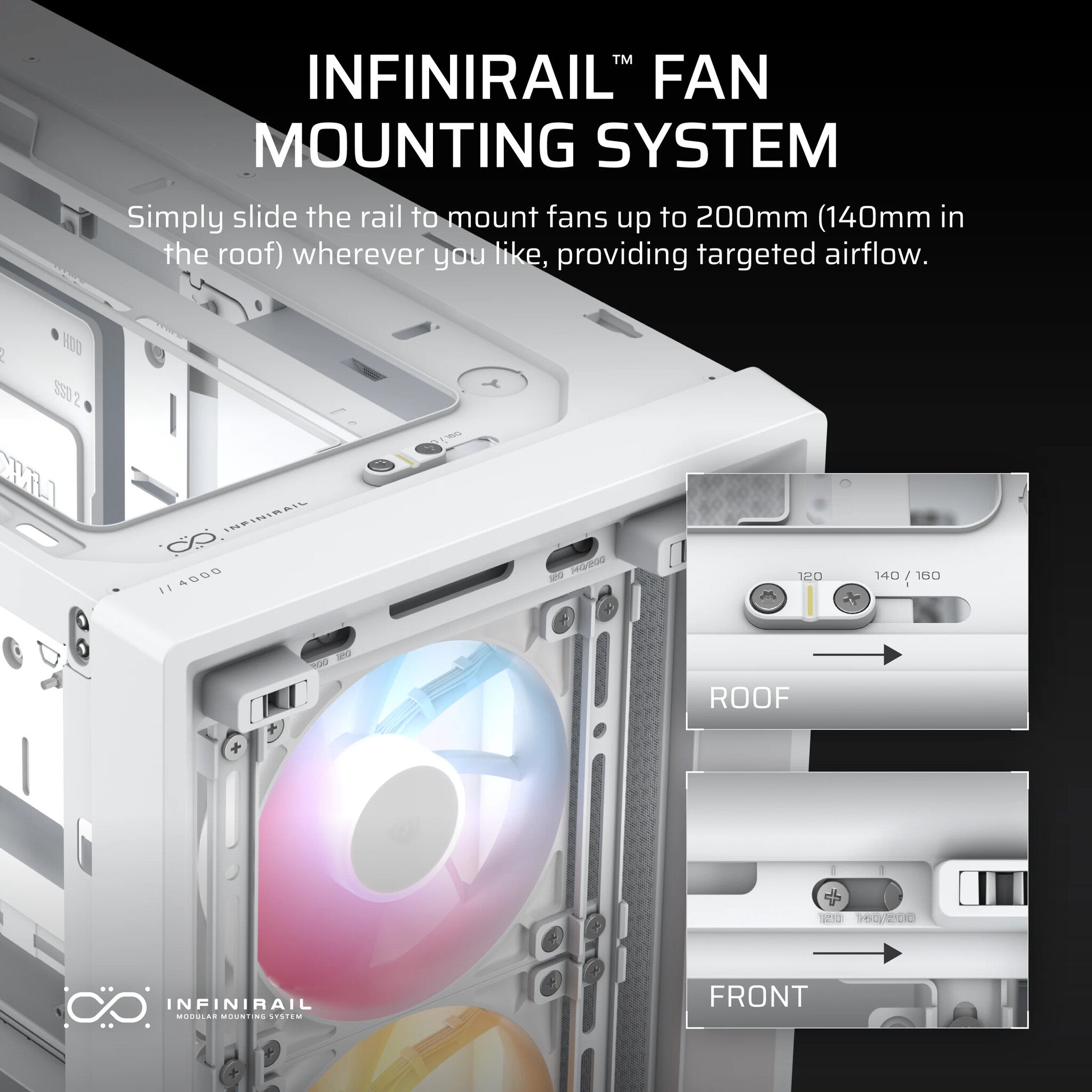

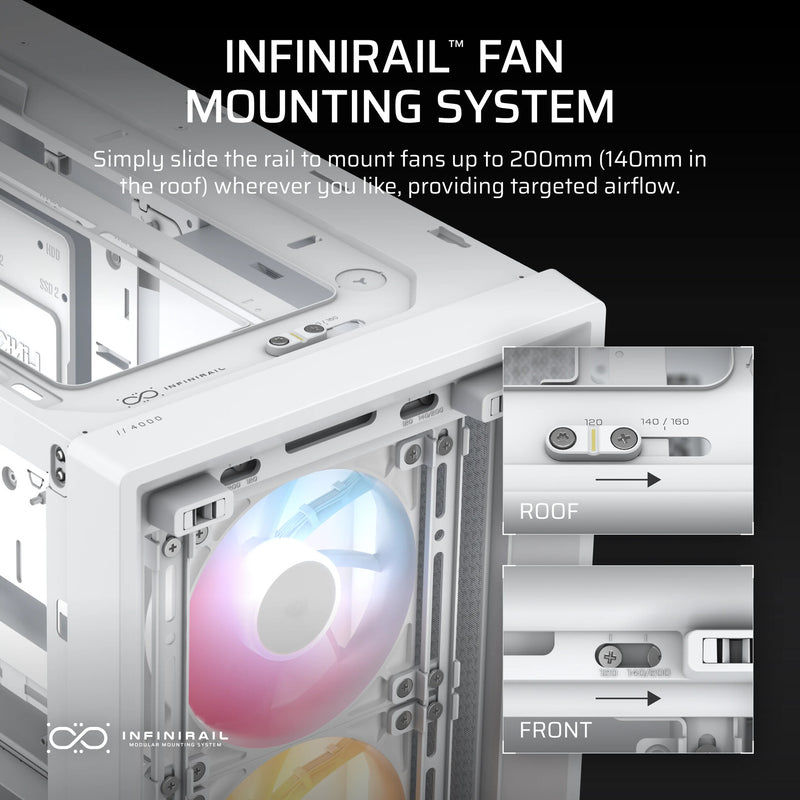

INFINIRAIL FAN MOUNTING SYSTEM

This steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail to mount fans up to 200mm (140mm in the roof) exactly where you need them, ensuring targeted airflow without limitations of fixed mounting points.

BUILD AND CHILL
DUAL 360mm RADIATOR SUPPORT

Boost your cooling with three dedicated mounting locations for 360mm radiators – front, roof, and side. You can mount up to 10x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.

AIR BENDING

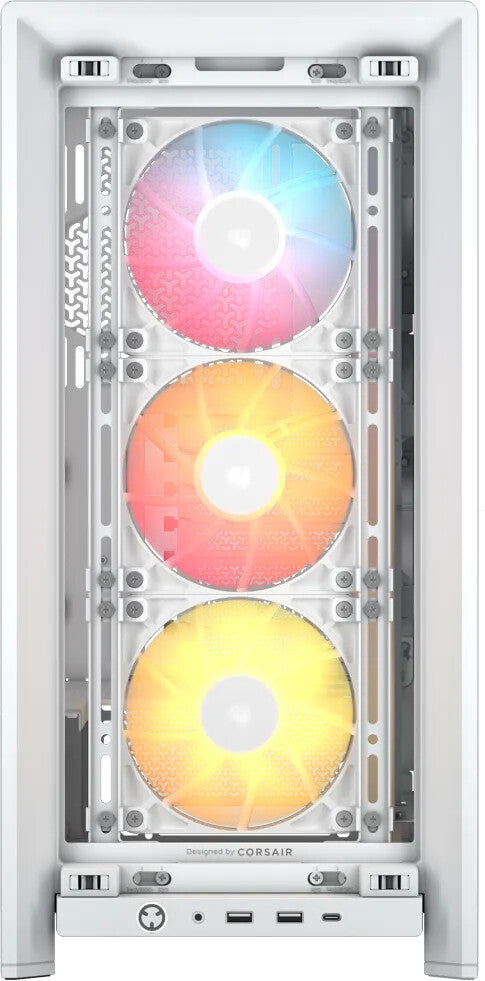

THREE RS120 ARGB FANS INCLUDED

RS120 ARGB PWM daisy-chainable fans for simply great cooling - no separate controller needed.

Controlled through one 4-pin PWM connector and one +5V ARGB connector on your compatible motherboard.

FUTURE PROOF
GET IN THE FRAME

Ensure your build has excellent airflow with careful cable routing and support for the latest motherboards and graphics cards.

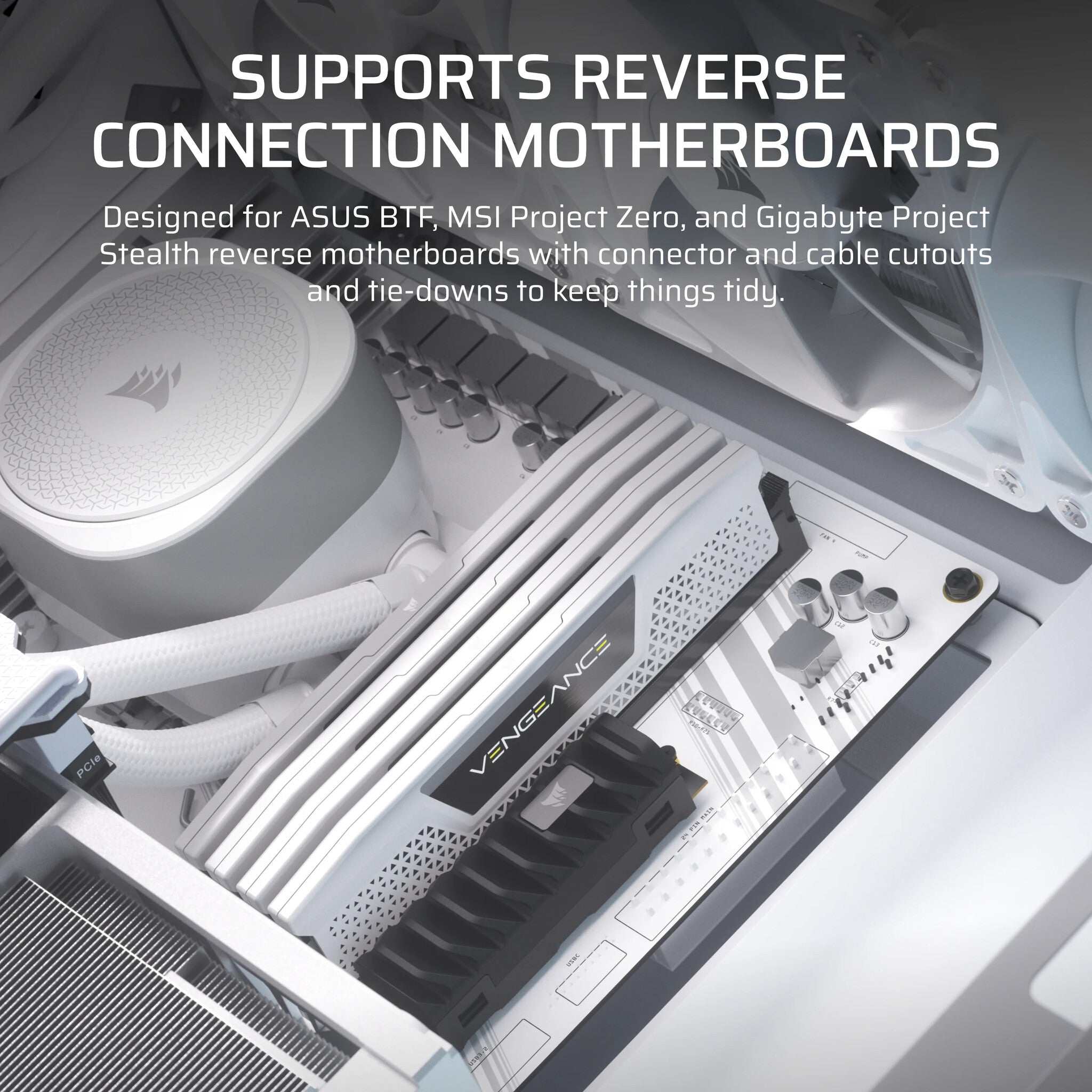

NO VISIBLE CABLES 
Fully compatible with reverse-connector motherboards from Asus, MSI, and Gigabyte, allowing for unobstructed airflow and a super-clean build.

SAG-FREE GRAPHICS CARDS
Every CORSAIR FRAME 4000D includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.

CABLE SHROUD
Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.

WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 12x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators.

The FRAME 4000D has more than enough space to accommodate and cool your most ambitious build.

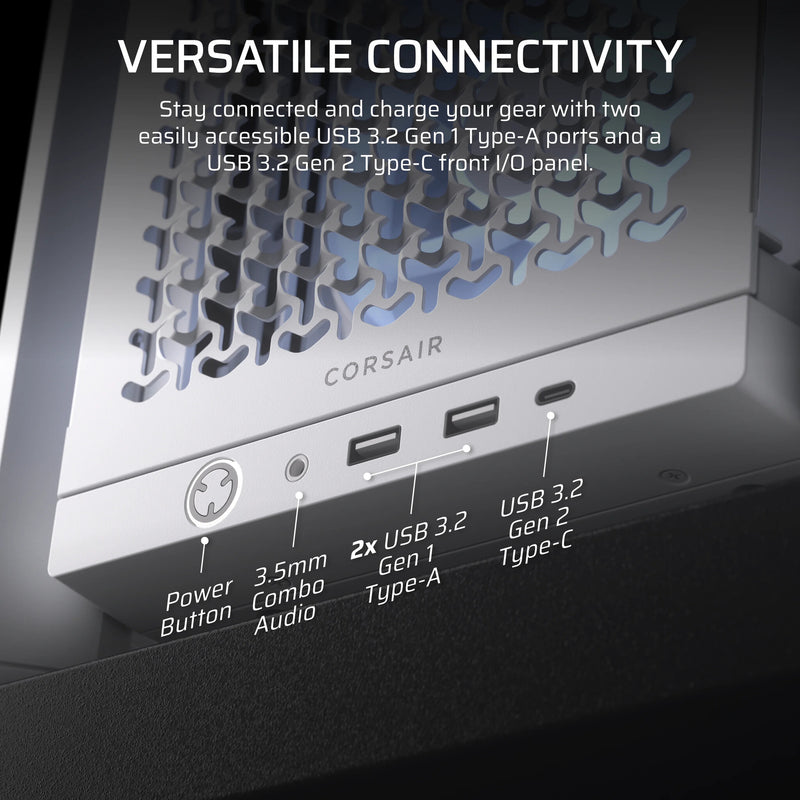

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.

Design
Maximum graphics card length 37 cm
On/off button Yes
Cable management Yes
Anti-dust filter Yes
Tempered glass panel(s) Yes
Illumination location Case fans
Illumination colour Multi
Illumination Yes
Suitable for Gaming
Side window Yes
Number of expansion slots 7
Number of 2.5" bays 2
Number of 3.5" bays 2
Supported motherboard form factors ATX, EATX, micro ATX, Mini-ITX
Product colour White
Material Plastic, Steel, Tempered glass
Type PC
Form factor Midi Tower
Power supply
Supported power supply form factors ATX
Power supply included No
Ports & interfaces
Combo headphone/mic port Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Cooling
Top radiator sizes supported 240,280,360 mm
Rear radiator sizes supported 120,140 mm
Side radiator sizes supported 240,280,360 mm
Front radiator sizes supported 240,280,360 mm
Liquid cooling capability Yes
Bottom fans diameters supported 120 mm
Number of bottom fans supported (max) 2
Top fans diameters supported 120,140 mm
Number of top fans supported (max) 3
Rear fans diameters supported 120,140 mm
Number of rear fans supported (max) 1
Side fans diameters supported 120,140 mm
Number of side fans supported (max) 3
Front fans diameters supported 120,140,200 mm
Number of front fans supported (max) 3
Front fans installed 3x 120 mm
Storage
SSD form factor 2.5"
Supported HDD sizes 2.5,3.5"
Technical details
Warranty period 2 year(s)

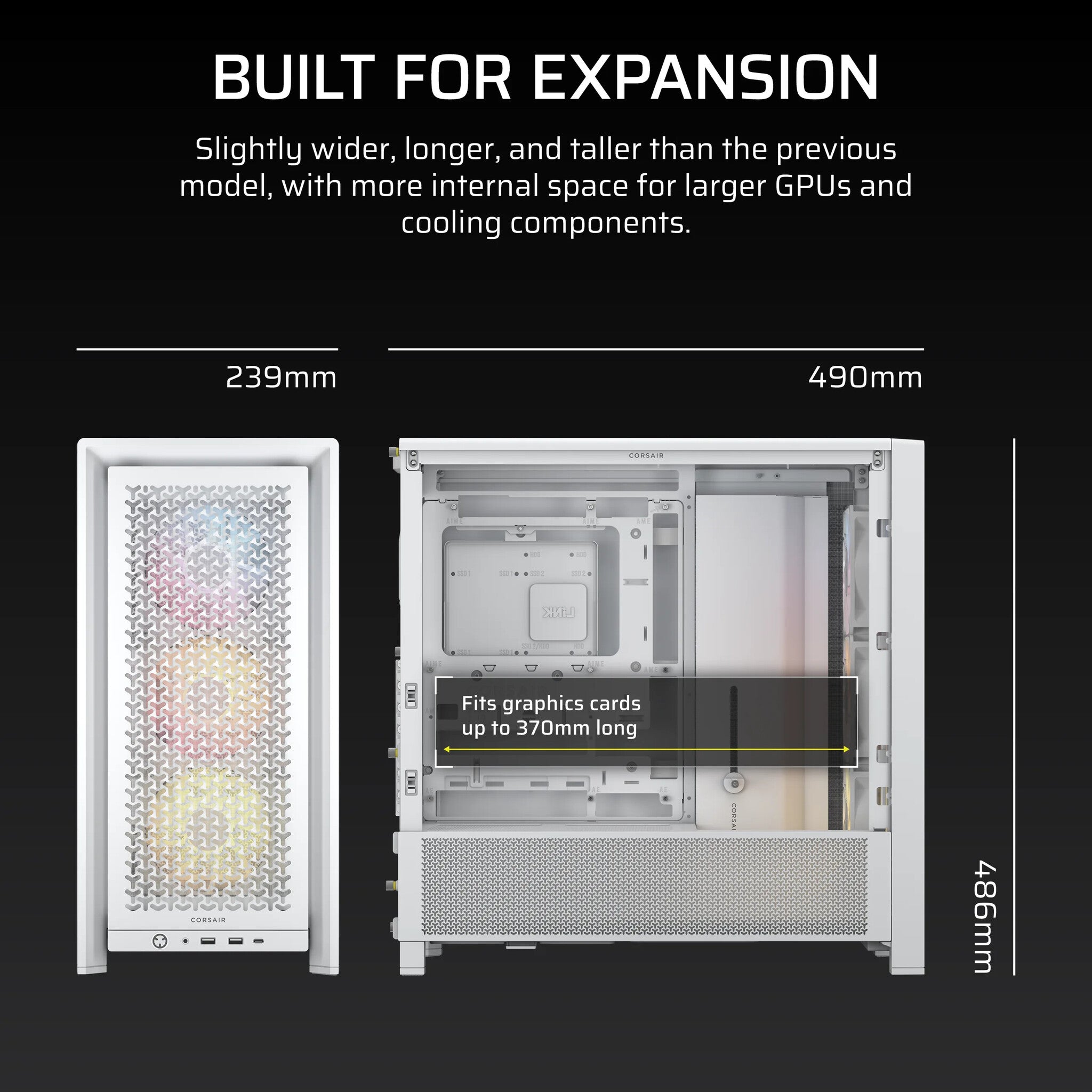

Weight & dimensions
Weight 10.4 kg
Height 486 mm
Depth 490 mm
Width 239 mm
