Cooler Master X Silent Edge Platinum 1100 230V power supply unit 1100 W 24-pin ATX ATX Black

Cooler Master
£216.99
Stock Available: 5
  • 1100 W 200 - 240 V 50/60 Hz
  • Motherboard power connector: 24-pin ATX
  • PC ATX 80 PLUS Platinum
  • Passive
  • Black

Precise Silent Power
Engineered with a fanless design and industrial IC components, X Silent Edge Platinum features out Heat Pipe.

Dissipation Patent, ensuring quietness for even the most noise-sensitive environments.

Innovative Design

NO FAN, NO DUST
Equipped with a heat pipe and an innovative modular thermal structure, our design enhances thermal efficiency, essential for the low-temperature rise of key components and the ultra-quiet fanless operation.

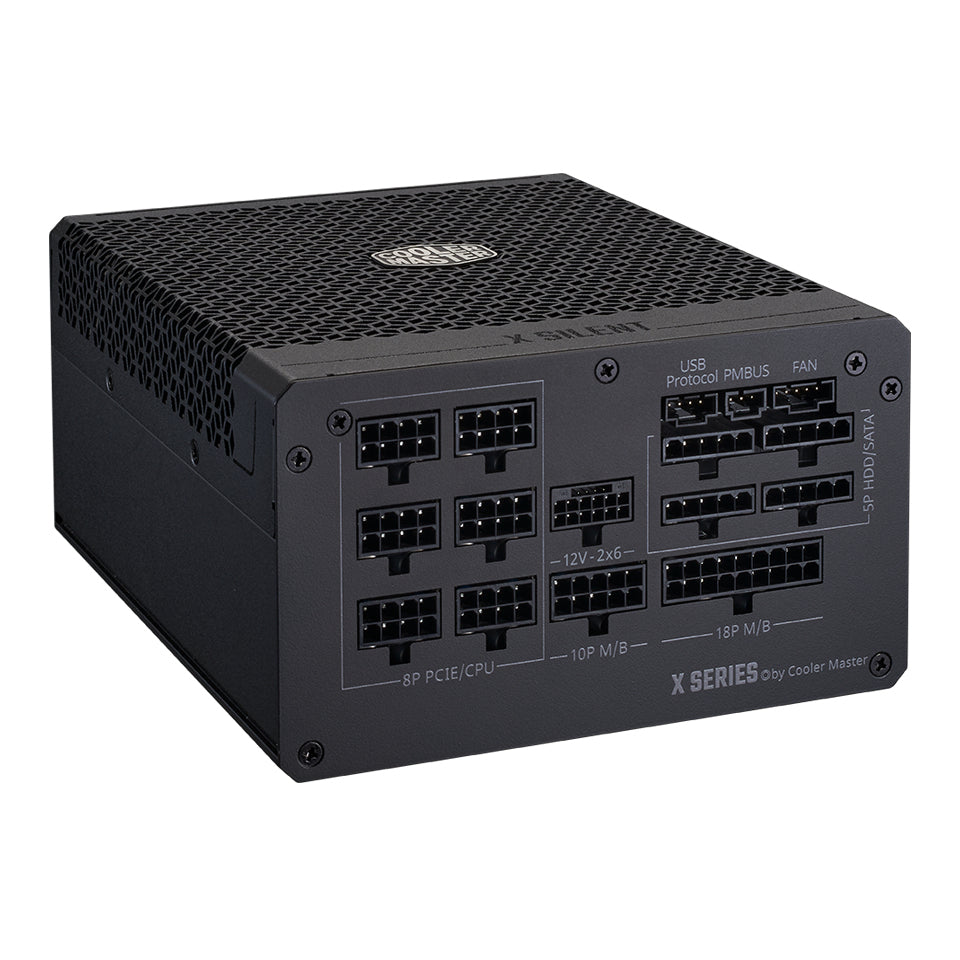

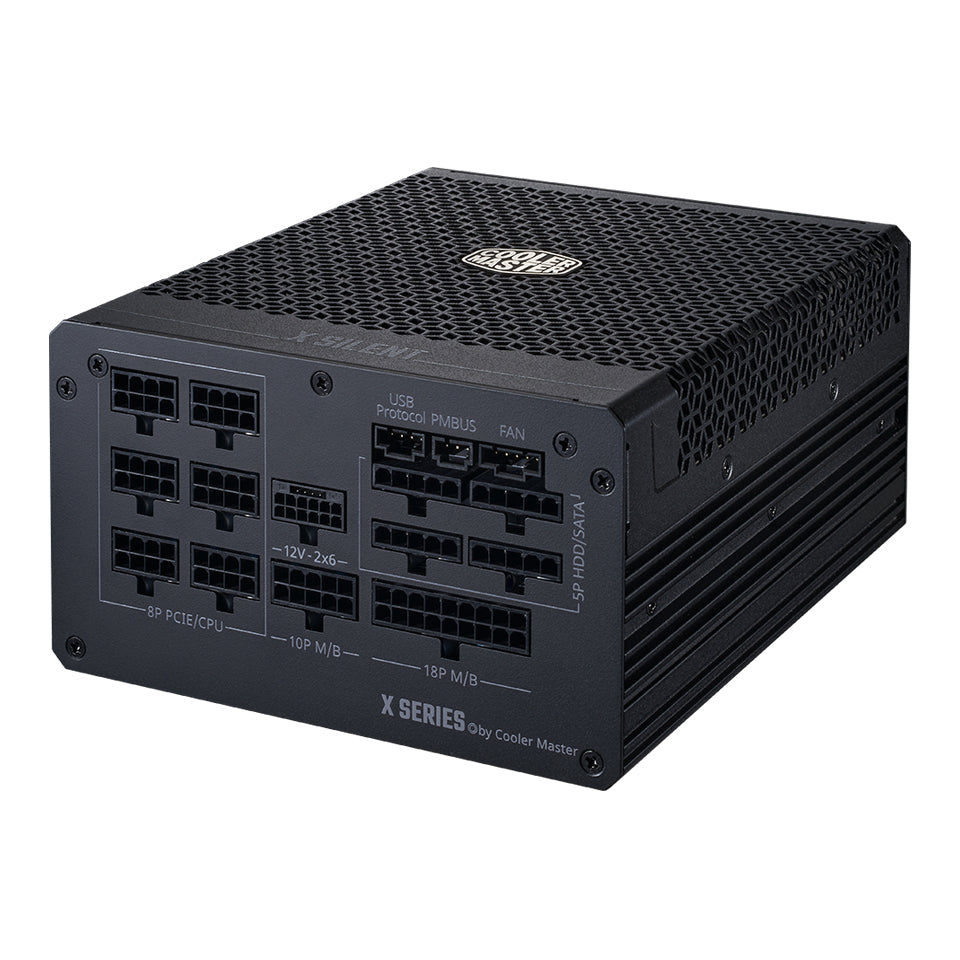

Ports & Slots

Fully Modular Cabling & Extra Functions
Modular cabling minimizes clutter, while the additional ports provide extra functionality.

Cooling System

HEAT DISSIPATION
Our Private Aluminum Thermal Mold effectively dissipates heat, and the Innovative Heat Pipe Thermal Tech uniformly regulates unit temperature. This ensures superior thermal control, enhancing efficiency and longevity in demanding environments.

Power Efficiency

Active Bridge Rectifier Boosts Efficiency 2%
The Active Bridge Rectifier, equipped with the Infineon CoolMOS, marks a significant advancement in power efficiency. This innovative combination not only conserves electricity, but also significantly reduces power loss, outperforming traditional bridge diodes. It's an ideal solution for users seeking eco-friendly, high-efficiency power supply units.

ATX 3.1 Support & a Durable 90° Cable
Includes ATX 3.1 support and a 90° 12V-2×6 connector featuring more reliability, higher electrical durability, improved safety, and capable of bringing up to 600W to your GPU.

Power
Total power 1100 W
AC input voltage 200 - 240 V
AC input frequency 50/60 Hz
Input current 6.1 A
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 120 W
Combined power (+12V) 1099.2 W
Combined power (+5V) 120 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 91.6 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power Good signal delay range 100 - 150 ms
Efficiency 94%
Hold time 16 ms
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Ports & interfaces
Motherboard power connector 24-pin ATX
Motherboard power cable length 65 cm
Number of SATA power connectors 12
SATA power cable length 500,650,800,950 mm
Peripheral (Molex) power connectors (4-pin) 4
Peripheral (Molex) power cable length 740,620,500,860 mm
EPS power connector (8-pin) Yes
EPS power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 4
PCI Express power connectors (12+4 pin) cable length 650 mm
PCI Express power connectors (12+4 pin) 1
PCI Express power cable length 55 cm
ATX Power connector (24-pin) Yes
Cabling type Fully-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Platinum
ATX version 3.1
Silent mode Yes
Mean time between failures (MTBF) 100000 h
Design
Product colour Black
Cooling type Passive
Number of fans 0 fan(s)
On/off switch Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Certificates
Compliance certificates BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), KC, RCM, REACH, UKCA, cUL
Certification ErP 2014 Lot 3
Weight & dimensions
Width 150 mm
Depth 180 mm
Height 86 mm
Weight 4.5 kg
Packaging data
Package width 382 mm
Package depth 224 mm
Package height 126 mm
Package weight 5.2 kg
Package type Box
Case or master carton quantity 2 pc(s)
Case or master carton dimensions (W x D x H) 396 x 265 x 250 mm
Logistics data
Master (outer) cases per pallet 120 pc(s)
Master (outer) case width 396 mm
Master (outer) case length 265 mm
Master (outer) case height 250 mm
Products per master (outer) case 2 pc(s)
Other features
EPS cable length 65 cm
