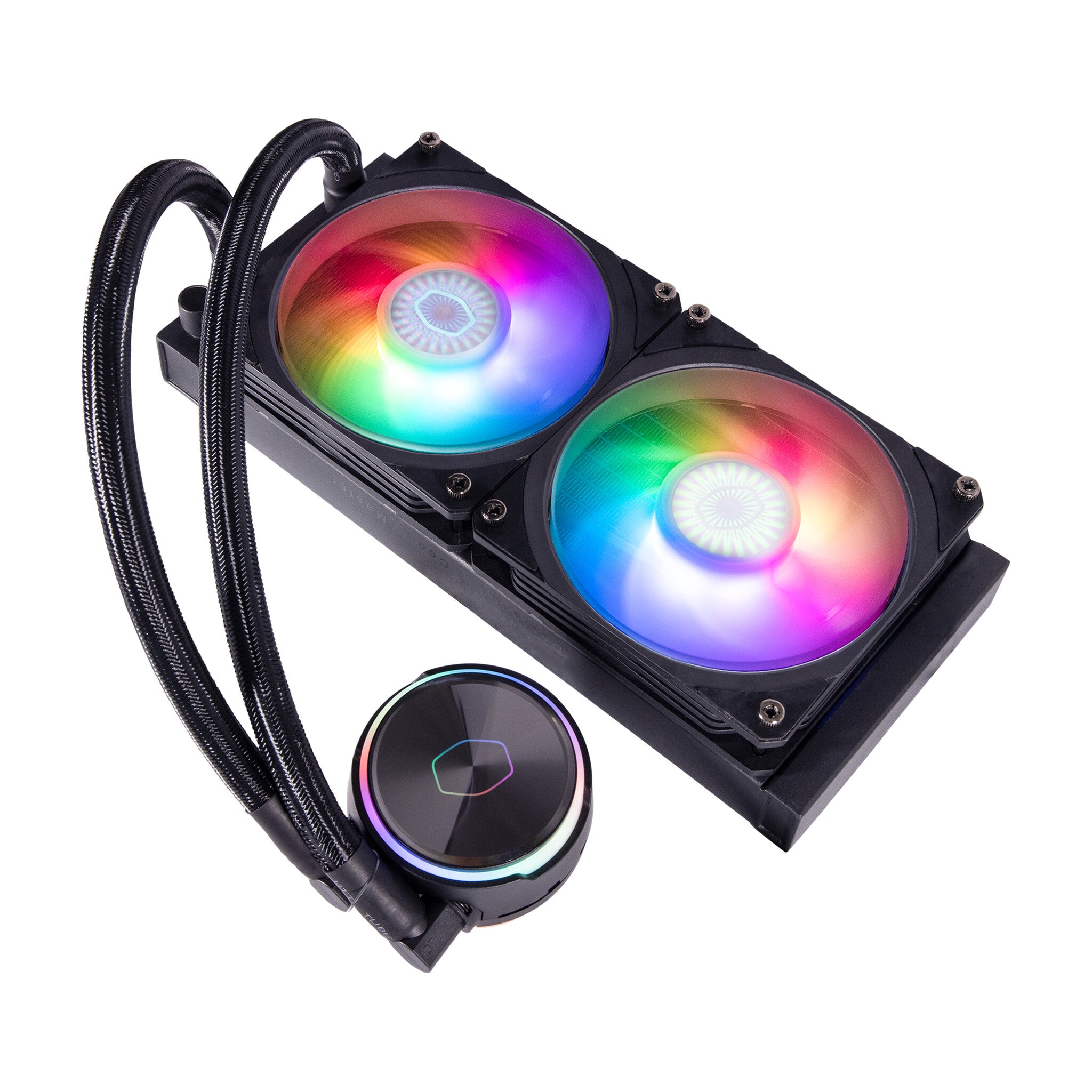

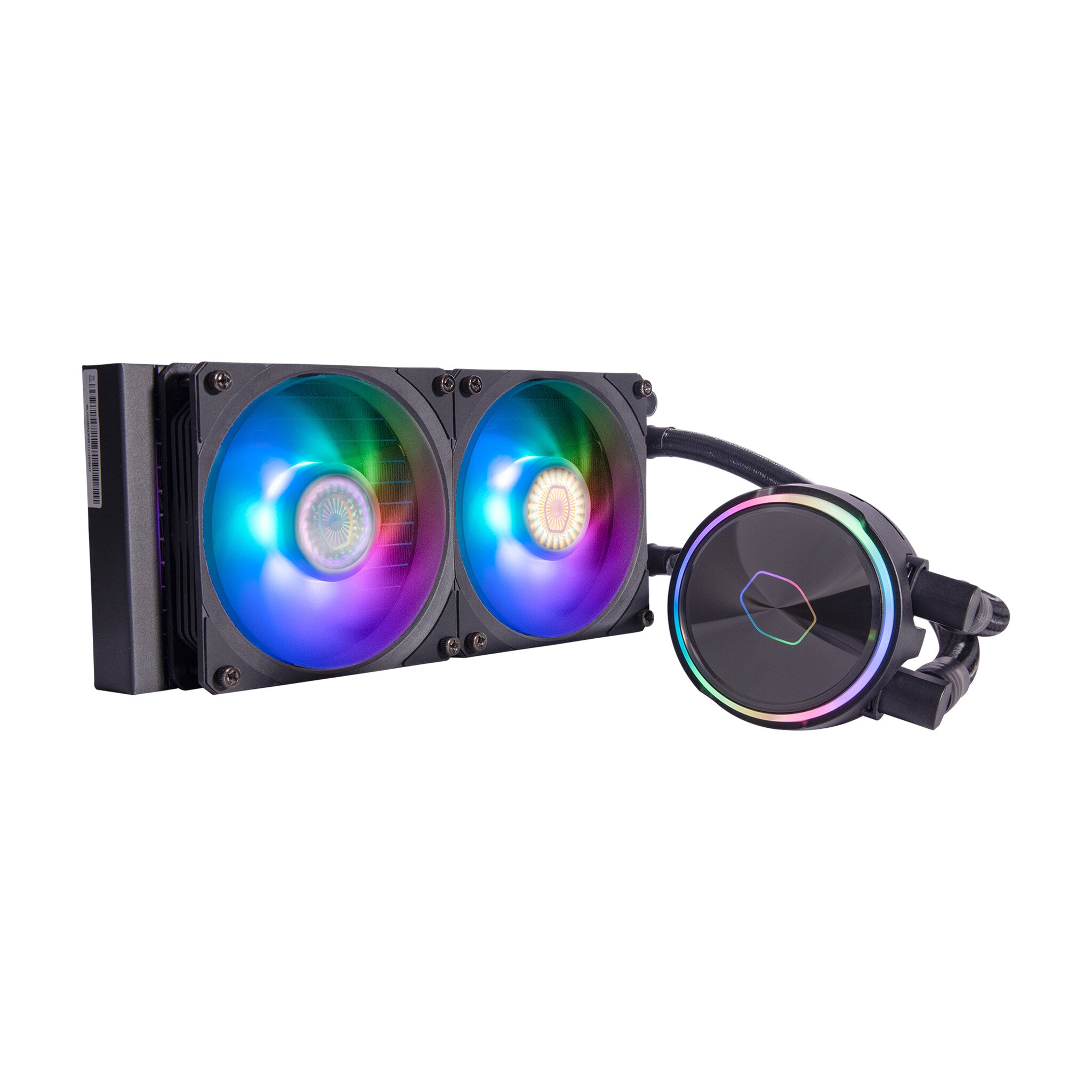

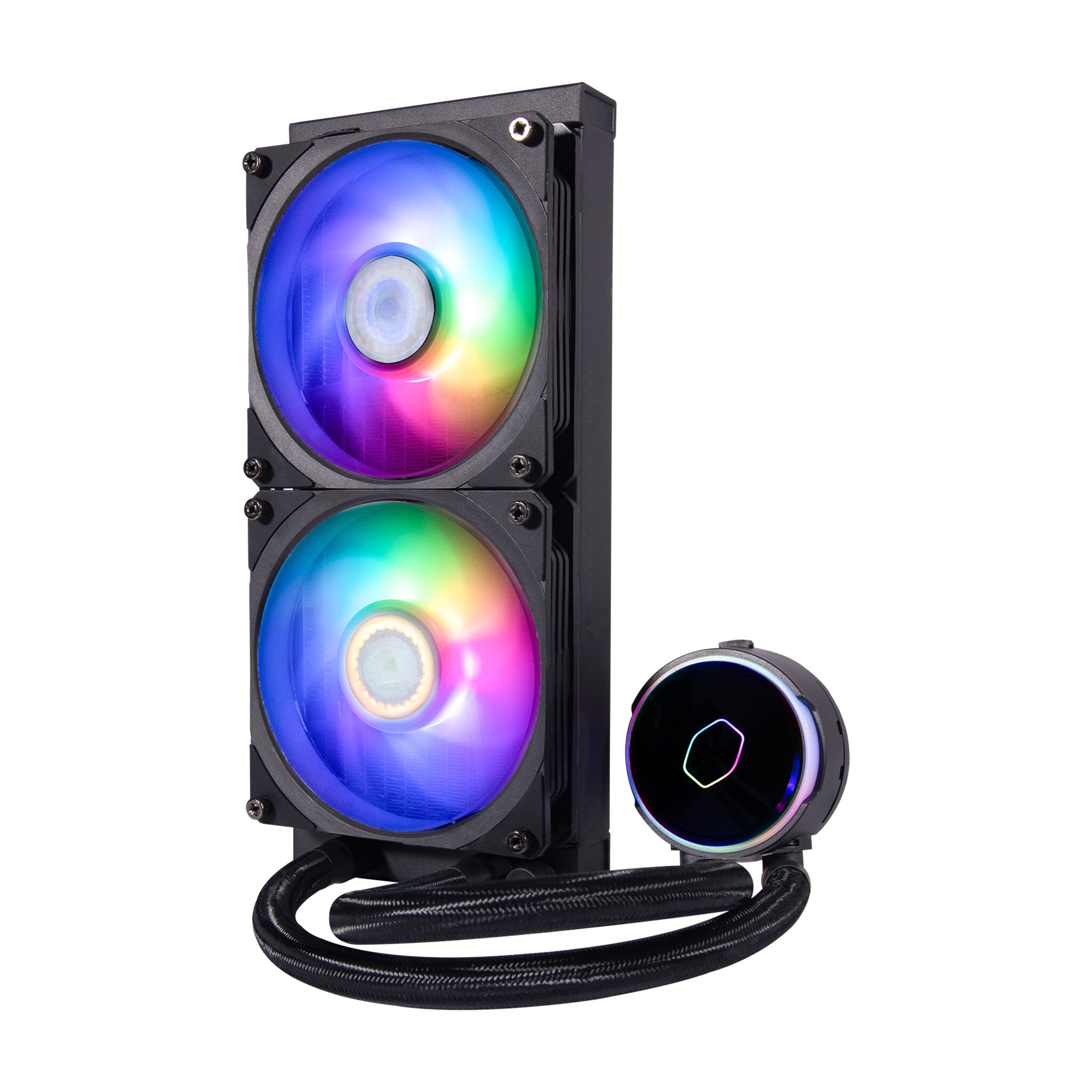

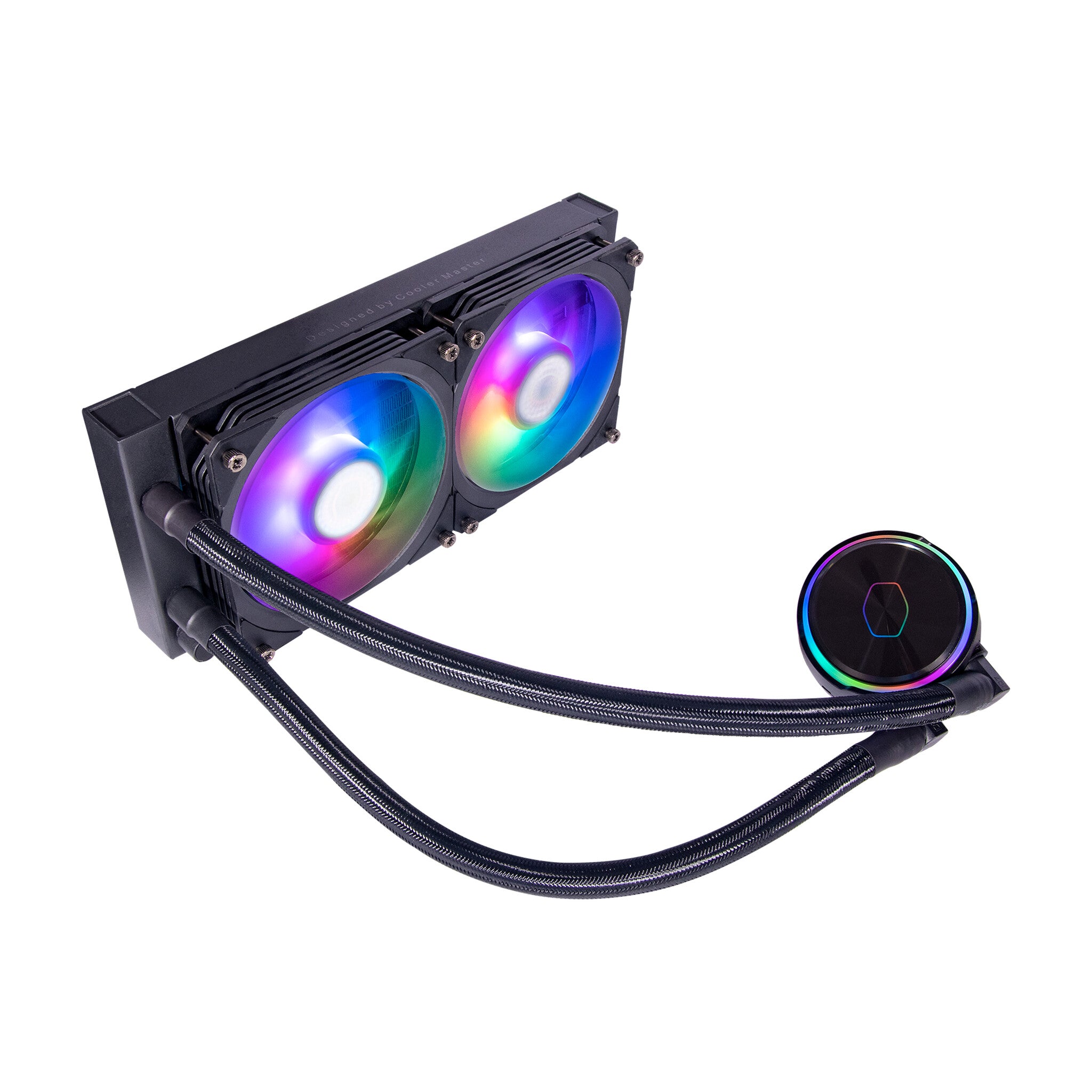

Cooler Master MasterLiquid PL240 Flux Processor Liquid cooling kit 12 cm Black
Couldn't load pickup availability
- Premium Dual Chamber Pump
- Fine Tuned Performance Ratio
- Superior Heat Exchange
- Low Profile Radiator
- Redesigned Flux Series Fan
- Dual Loop ARGB Pump
Cooling Uncompromised
Cooler Master's Flux Series is the materialization of revolutionary cooling performance. With enhancements from the pump to the radiator and fans, the Flux Series delivers precisely tuned performance for superior heat dissipation and cooling capabilities.
Premium Dual Chamber Pump
New Dual Chamber Pump more compact than before while delivering the perfect volume of flow to pressure for impressive cooling performance.
Fine Tuned Performance Ratio

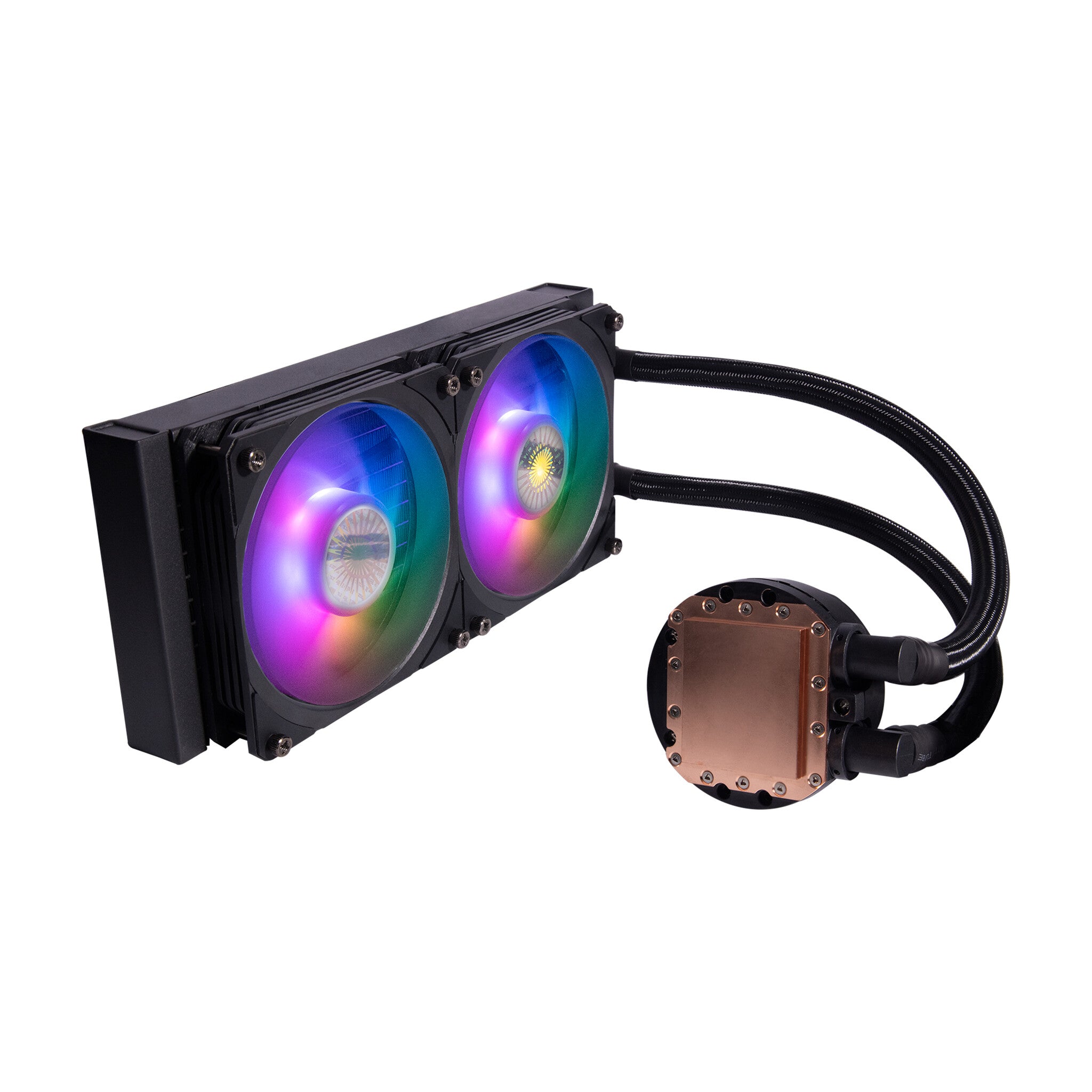

Precision engineered ultra-thin spaded fins maximize microchannels to accurately target heat spots. Enlarged copper base surface area with optimized base thickness further accelerates heat transfer.
Ultimate Heat Exchange
High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.
Slim & Sleek Radiator
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.
Redesigned Flux Series Fan
Unique air balance fan featuring interconnecting blades specifically designed for the Flux Series. Strengthened structure provides better stability for steady high speed operation. Angled inner fan frame rim boosts air intake, with frame gap generating increased air pressure for improved cooling.
Dual Loop ARGB Pump
Dual loop pump ARGB with independent lighting customization showcases your visual creativity without sacrificing cooling capability.
Addressable Gen 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master’s MasterPlus+ software to customize individual LED colors, effects, brightness and more – all from an intuitive, convenient interface.
| Performance | |
|---|---|
| Pump's mean time to failure (MTTF) | 210000 h |
| Pump connector | 4-pin |
| Pump noise level | 15 dB |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.96 mmH2O |
| Maximum airflow | 72.37 cfm |
| Noise level (high speed) | 32 dB |
| Rotational speed (max) | 2300 RPM |
| Rotational speed (min) | 0 RPM |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket TR4 |
| Fan diameter | 12 cm |
| Type | Liquid cooling kit |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| Illumination LED | Yes |
| Radiator material | Aluminum |
| Product colour | Black |
| Power | |
|---|---|
| Safety current | 0.3 Ah |
| Pump voltage | 12 V |
| Fan voltage | 12 V |
| Rated current | 0.15 A |
| Pump power consumption | 6 W |
| Weight & dimensions | |
|---|---|
| Package weight | 2.58 kg |
| Package height | 147 mm |
| Package depth | 348 mm |
| Package width | 285 mm |
| Fan dimensions (W x D x H) | 120 x 25 x 120 mm |
| Weight | 1.43 kg |
| Pump height | 4 cm |
| Pump depth | 7.5 cm |
| Pump width | 8.9 cm |
| Radiator height | 2.72 cm |
| Radiator depth | 12 cm |
| Radiator width | 27.7 cm |
| General | |
|---|---|
| Product family | MasterLiquid |
| Other features | |
|---|---|
| Country of origin | China |
| Logistics data | |
|---|---|
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case height | 372 mm |
| Master (outer) case length | 585 mm |
| Master (outer) case width | 460 mm |
| Harmonized System (HS) code | 84733080 |
