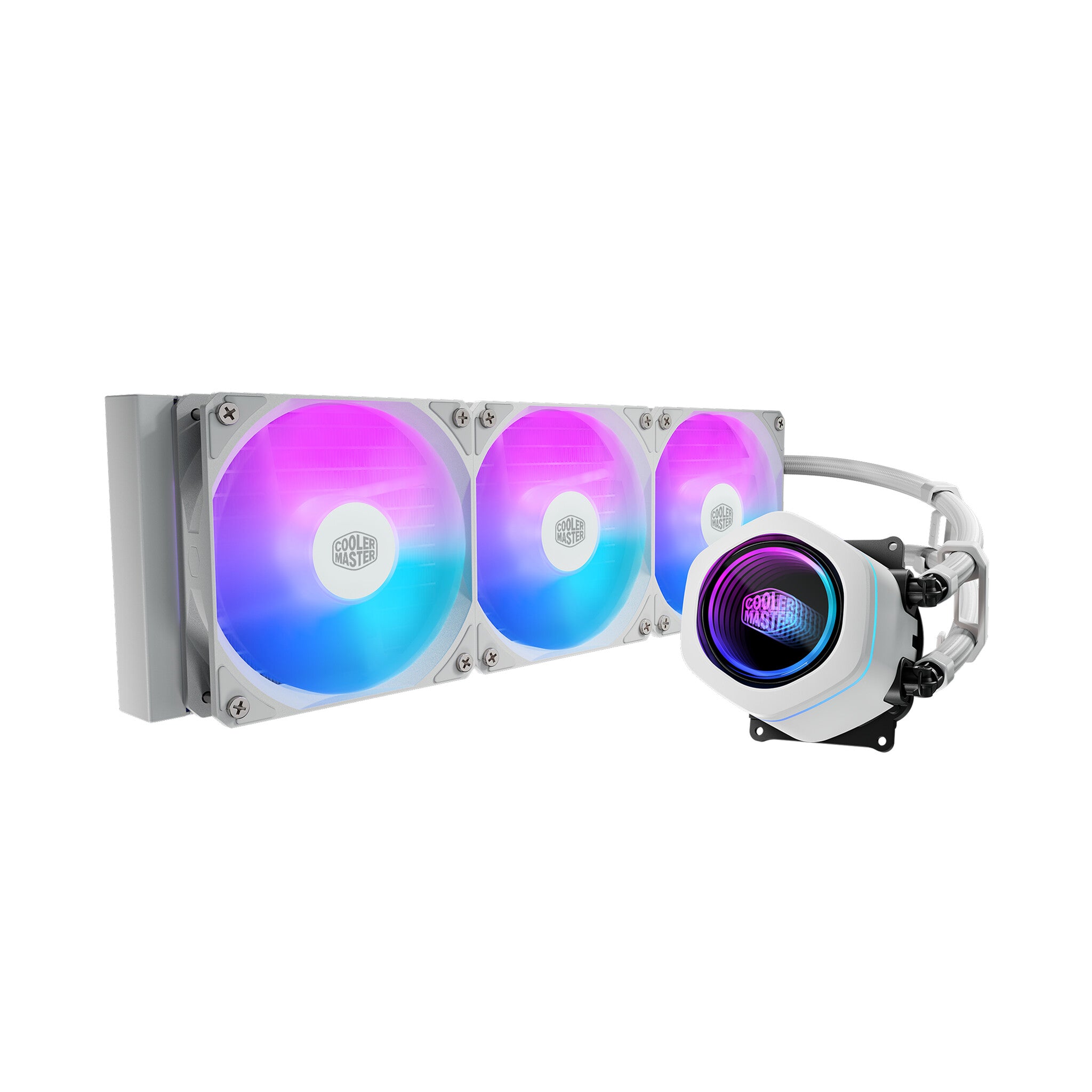

Cooler Master MasterLiquid Core Nex Processor Liquid cooling kit 12 cm White 1 pc(s)
Couldn't load pickup availability
- Dual Chamber Pump
- Innovative Design
- Flexible Pump Orientation
- Easy Installation
- Universal Socket Support
- Optimum Tubing Length
360 Degrees of Cool
MasterLiquid Core Nex Series
Introducing the redesigned MasterLiquid Core Nex Series from Cooler Master. Built on the trusted foundation of the MasterLiquid series, the Core Nex brings improved cooling performance with its upgraded dual chamber pump and wider CPU compatibility for flexible PC builds. With the infinity mirror pump cover design, upgraded fans, and optimized tubing for easy installation, the MasterLiquid Core Nex Series is a smart and stylish cooling solution for mainstream users looking to step up their setup.
Innovative Design
An infinity mirror pump cover design brings stylish lighting and a modern touch to your build
Flexible Pump Orientation
Featuring a rotatable pump cover that allows users to customize the orientation for the perfect look.
Dual chamber pump
Patented design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.
Improved Quality
Fully automated production and assembly of the pump with fully recorded production history.
Dual Chamber Pump
Our patented dual chamber design delivers a compact cooler with efficient and reliable performance.
Optimum Tubing Length
400 mm tubing allows for effortless cooler installation in any orientation.
Easy Installation
With pre-installed fans, streamlined cabling, pre-applied thermal paste, and pre-mounted brackets, setup is quick, clean, and effortless
Universal Socket Support
Broad compatibility with both Intel and AMD CPU sockets
| Performance | |
|---|---|
| Suitable location | Processor |
| Type | Liquid cooling kit |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1851, LGA 1700, LGA 1200 (Socket H5), LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket AM4, Socket AM5 |
| Rotational speed (min) | 650 RPM |
| Rotational speed (max) | 1750 RPM |
| Maximum airflow | 71.9 cfm |
| Airflow | 122.4 m³/h |
| Maximum air pressure | 1.86 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Rifle bearing |
| Fan noise level (max) | 27.2 dB |
| Pump noise level | 25 dB |
| Pump connector | 3-pin + 4-pin |
| Quantity per pack | 1 pc(s) |
| Pump motor speed (max) | 3200 RPM |
| Pump's mean time to failure (MTTF) | 35000 h |
| Fan's mean time to failure (MTTF) | 40000 h |
| Design | |
|---|---|
| Product colour | White |
| Radiator material | Aluminum |
| Number of fans | 3 fan(s) |
| Illumination LED | Yes |
| Illumination colour | Red, Green, Blue |
| Fan connector | 7-pin |
| Display type | Not applicable |
| Power | |
|---|---|
| Rated voltage | 12 V |
| Fan power consumption | 3.12 W |
| Pump power consumption | 7.2 W |
| Pump voltage | 12 V |
| Safety current | 0.37 Ah |
| Rated current | 0.26 A |
| Weight & dimensions | |
|---|---|
| Radiator width | 12 cm |
| Radiator depth | 39.4 cm |
| Radiator height | 2.72 cm |
| Tube length | 40 cm |
| Pump width | 7.85 cm |
| Pump depth | 8.36 cm |
| Pump height | 6.29 cm |
| Weight | 1.65 kg |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package width | 229 mm |
| Package depth | 450 mm |
| Package height | 142 mm |
| Package weight | 2.73 kg |
| General | |
|---|---|
| Product family | MasterLiquid |
| Logistics data | |
|---|---|
| Master (outer) case width | 465 mm |
| Master (outer) case length | 475 mm |
| Master (outer) case height | 310 mm |
| Products per master (outer) case | 4 pc(s) |
