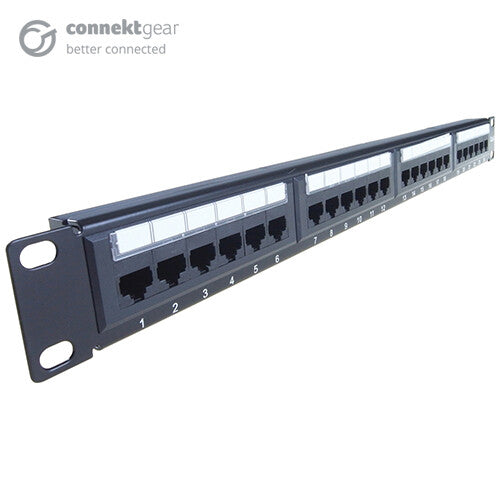

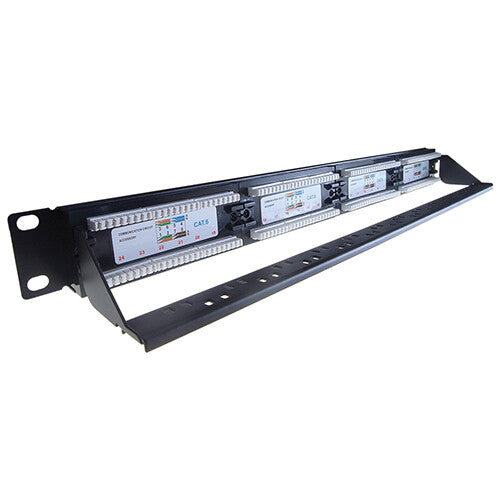

connektgear 24 Port Patch Panel (Cat6) IDC Punch Down 19 inch + Lacing Bar
iFrame
£23.99
Couldn't load pickup availability
- CAT 6 TIA & ISO standard
- Screen printed port numbering on the front of the panel
- Removable cards held in clear plastic holders on the front of the panel for personalised Identification
- Pre-printed port numbering labels on the back of the panel
- High quality pressed steel front panel construction
- Includes cages nuts and cable ties
-
| Network | |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Ports quantity | 24 |
| Connector(s) | RJ-45 |
| Connector contacts plating | Gold |
| Cable types supported | Cat6 |
| Multi-mode fiber (MMF) supported | No |
| Single-mode fiber (SMF) supported | No |
| AWG wire size | 22/26 |
| Design | |
|---|---|
| Product colour | Black |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Thermoplastic polyester (PBT) |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Cable connection | RJ45 Male |
| Cable management | Yes |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Certification | REACH |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Width | 480 mm |
| Height | 44 mm |
| Depth | 33 mm |
| Weight | 700 g |
| Packaging content | |
|---|---|
| Number of cable ties | 4 |
| Cable tie(s) included | Yes |
| Packaging data | |
|---|---|
| Package width | 500 mm |
| Package depth | 98 mm |
| Package height | 55 mm |
| Package weight | 82.5 g |
| Package type | Box |
| Logistics data | |
|---|---|
| Country of origin | China |
