Cisco Small Business C2960X24TS-L, Refurbished Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
£1,004.99
Couldn't load pickup availability
- Managed L2/L3 Web-based management SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45
- Cat5e 10G support 10BASE-T, 100BASE-T, 1000BASE-T
- MAC address table: 16000 entries Switching capacity: 216 Gbit/s
- 3 Access Control List (ACL)
- 1U Rack mounting Stackable
- Power supply included

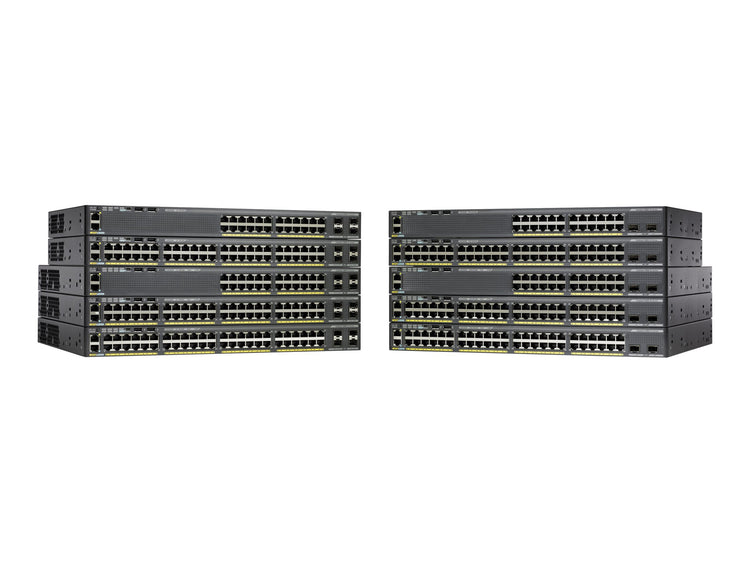

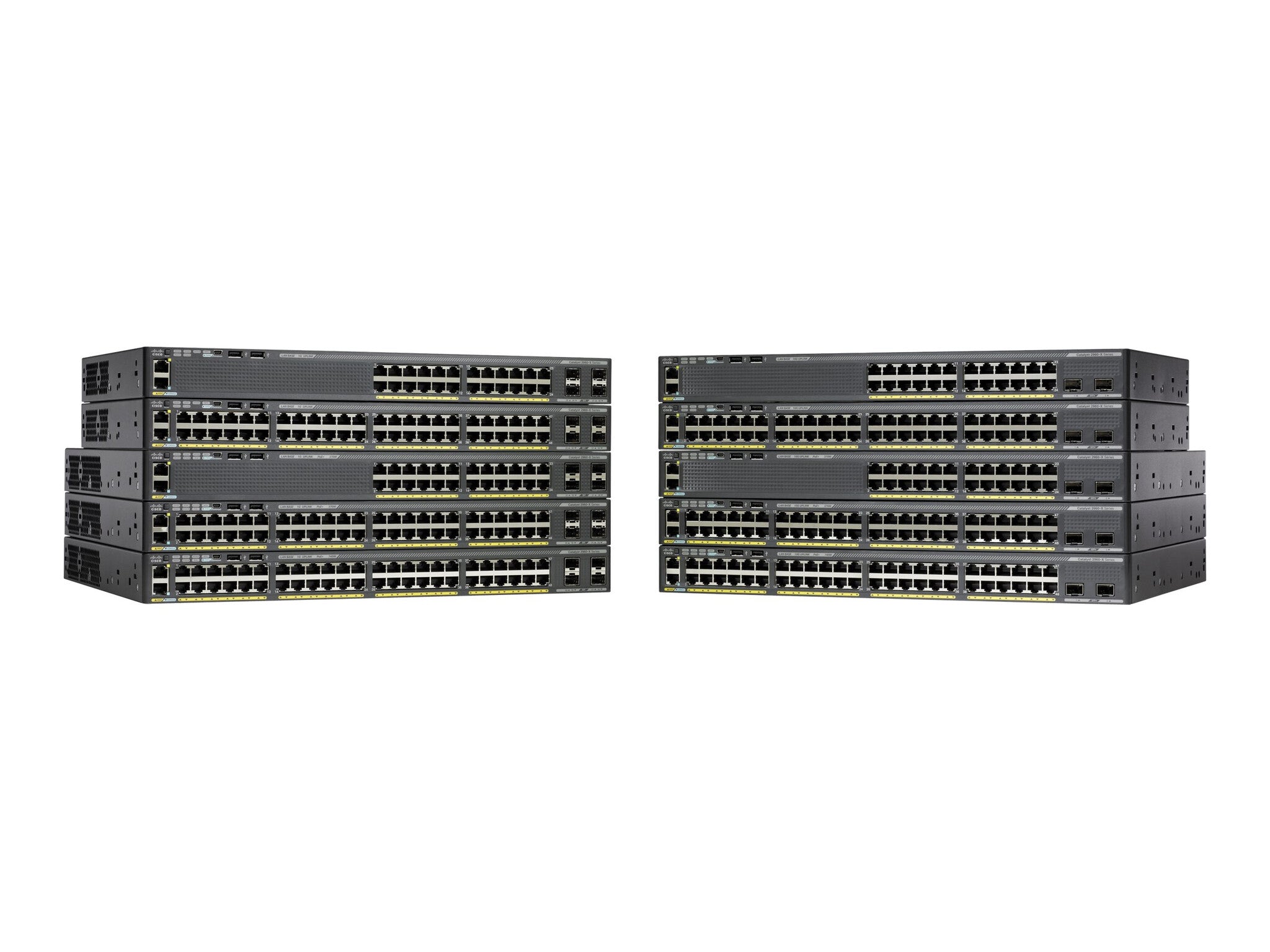

Catalyst 2960-X 24 GigE, 4 x 1G SFP, LAN Base REMANUFACTURED
Cisco Catalyst 2960-X series switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations.
| Management features | |
|---|---|
| MIB support | BRIDGE-MIB, CISCO-CDP-MIB, CISCO-CLUSTER-MIB, CISCO-CONFIG-MAN-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENVMON-MIB, CISCO-FLASH-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-MIB, CISCO-HSRP-EXT-MIB, CISCO-IGMP-FILTER-MIB, CISCO-IMAGE-MIB, CISCO-IP-STAT-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MEMORY-POOL-MIB, CISCO-PAGP-MIB, CISCO-PING-MIB, CISCO-PROCESS-MIB, CISCO-RTTMON-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, ENTITY-MIB, ETHERLIKE-MIB, IF-MIB, IGMP-MIB, IPMROUTE-MIB, OLD-CISCO-CHASSIS-MIB, OLD-CISCO-FLASH-MIB, OLD-CISCO-INTERFACES-MIB, OLD-CISCO-IP-MIB, OLD-CISCO-SYS-MIB, OLD-CISCO-TCP-MIB, OLD-CISCO-TS-MIB, OSPF-MIB (RFC 1253), PIM-MIB, RFC1213-MIB, RFC1253-MIB, RMON-MIB, RMON2-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-TARGET-MIB, SNMPv2-MIB, TCP-MIB, UDP-MIB |
| System event log | Yes |
| ARP inspection | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Power connector | AC-in jack |
| USB 2.0 ports quantity | 2 |
| Console port | RJ-45 |
| SFP module slots quantity | 4 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Network | |
|---|---|
| Number of VLANs | 1023 |
| VLAN support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Spanning tree protocol | Yes |
| IP routing | Yes |
| Full duplex | Yes |
| Cable types supported | Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| 10G support | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Number of static routes | 1000 |
| Number of queues | 8 |
| Throughput | 71.4 Mpps |
| Switching capacity | 216 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Security algorithms | SNMP, SSH |
| Authentication | MAC-based authentication, Port-based authentication |
| SSH/SSL support | Yes |
| BPDU filtering/protection | Yes |
| IP-MAC-Port binding | Yes |
| Static port security | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) rules | 3 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
|---|---|
| Number of multicast groups filtered | 1000 |
| Multicast support | Yes |
| Protocols | |
|---|---|
| Routing protocols | HSRP, IP, RIP-1, RIP-2, RIPng |
| Switching protocols | UDP, TCP, RADIUS/TACACS+ |
| Management protocols | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Design | |
|---|---|
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 564910 h |
| Noise level | 48 dB |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Memory type | DRAM |
| Processor frequency | 600 MHz |
| Processor model | AppliedMicro APM8639 |
| Built-in processor | Yes |
| Physical stacking (units) | 8 |
| Power | |
|---|---|
| Power consumption (typical) | 36.9 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 120 - 230 V |
| Number of power supply units | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 4000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4 kg |
| Height | 25.4 mm |
| Depth | 279 mm |
| Width | 431.8 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Manual | Yes |
| Cables included | AC |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| General | |
|---|---|
| Product family | Small Business |
| Product series | Catalyst 2960 |
| Certificates | |
|---|---|
| Certification | 47CFR Part 15 (CFR 47), AS/NZS CISPR22, CISPR22, EN55022, ICES003, VCCI, EN61000-3-2, EN61000-3-3, KN22, CNS13438 |
