Overview
- Day-0 automation through Power On Auto Provisioning (POAP), drastically reducing provision time
- Industry-leading integrations for leading DevOps configuration management applications, such as Ansible. Extensive Native YANG, and industry-standard OpenConfig model support through RESTCONF/NETCONF/gNMI
- REST API interacting with Data Management Engine (DME)
- Model-driven telemetry enhances network observability
- Third-party application-hosting using Cisco Application Framework (CAF)

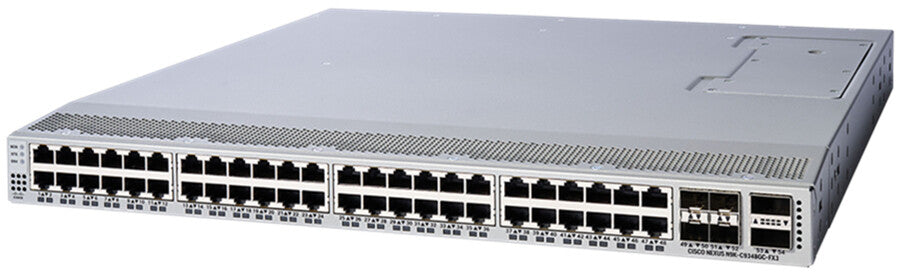

The Cisco Nexus 9348GC-FX3PH Switch (Figure 5) is a 1RU switch that supports 696 Gbps of bandwidth and over 517 Mpps. The 40 1GBASE-T downlink ports on the 9348GC-FX3PH can be configured to work as 10-Mbps, 100-Mbps, or 1-Gbps ports. The last 8 downlink ports can be configured to work as 10-Mbps or 100-Mbps only. The 4 ports of SFP28 can be configured as 1/10/25-Gbps, and the 2 ports of QSFP28 can be configured as 40- and 100-Gbps ports, or a combination of 10, 25, 40,and 100-Gbps connectivity, offering flexible migration options. The last 8 ports are only half-duplex functionality and are limited to 10Mbps and 100Mbps speeds only. Supports power over ethernet. For details refer to Table 4.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3 |
| Cloud-managed | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 48 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Number of management ports | 2 pc(s) |
| Fiber ports quantity | 6 |
| Fiber optic connector | QSFP28, SFP28 |
| USB 2.0 ports quantity | 1 |
Show all 32 specificationsShow fewer specifications
Network
| 10G support | Yes |
|---|
Data transmission
| Switching capacity | 696 Gbit/s |
|---|---|
| Throughput | 517 Mpps |
| Packet buffer memory | 40 MB |
Design
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| Product colour | Grey |
| DIN rail mounting | Yes |
| Number of fans | 3 fan(s) |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943 |
Performance
| Built-in processor | Yes |
|---|---|
| Noise level | 81.6 dB |
| Mean time between failures (MTBF) | 329090 h |
Power
| Power source | AC/DC |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 226 W |
| Power consumption (max) | 242 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Weight & dimensions
| Width | 439 mm |
|---|---|
| Depth | 499 mm |
| Height | 44 mm |
General
| Product family | Nexus |
|---|
