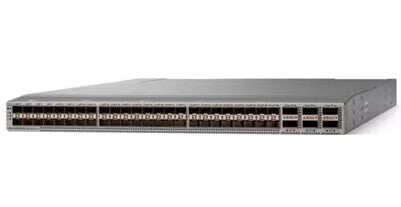

Cisco Nexus C36180YC-R Managed L2/L3 1U Silver
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £12,730.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed L2/L3 Web-based management
- Quality of Service (QoS) support
- Console port: RS-232
- 10G support
- MAC address table: 750000 entries Switching capacity: 1800 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC/DC
The Cisco Nexus® C36180YC-R is a high-speed, high-density, 1, 10, 25, 40, or 100 Gigabit Ethernet switch designed for data center aggregation. The large buffers and routing table sizes of the Cisco Nexus C36180YC-R also make this switch an alternative for a wide range of applications, such as IP storage, Demilitarized Zone (DMZ), big data, and edge routing. The switch comes in a compact 1-Rack-Unit (1RU) form factor and provides extensive Layer 2 and Layer 3 functions. It is part of the R-Series family and runs the industry-leading NX-OS operating system software.
The comprehensive programmability features enable organizations to run today’s applications while also preparing them for demanding and changing application needs. The Cisco Nexus C36180YC-R supports both forward and reverse (port-side exhaust and port-side intake) airflow schemes with AC and DC power inputs.
The Cisco Nexus C36180YC-R is a Small Form-Factor Pluggable (SFP) and Quad SFP (QSFP) switch with 48 SFP and 6 QSFP28 ports. Each SFP port can operate at 1, 10, or 25 Gigabit Ethernet and each QSFP28 can operate at 100 or 40 Gigabit Ethernet or in a breakout cable configuration. 6 QSFP28 ports can supports the IEEE 802.1ae MAC Security (MACSec) standard.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
Ports & interfaces
| SFP module slots quantity | 48 |
|---|---|
| USB Type-A ports quantity | 1 |
| Number of management ports | 1 pc(s) |
| Console port | RS-232 |
| QSFP28 ports quantity | 6 |
| Power connector | AC-in jack |
Show all 50 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1AE, IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.1ab |
|---|---|
| 10G support | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Number of VLANs | 4096 |
Data transmission
| MAC address table | 750000 entries |
|---|---|
| Switching capacity | 1800 Gbit/s |
| Forwarding rate | 1670 Mpps |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 8192 MB |
Security
| Access Control List (ACL) | Yes |
|---|---|
| Access Control List (ACL) ingress | 7000 |
Multicast features
| Multicast support | Yes |
|---|---|
| Multicast MAC address table | 128000 entries |
Design
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | Yes |
Performance
| Built-in processor | Yes |
|---|---|
| Internal memory | 32768 MB |
| Flash memory | 128000 MB |
Power
| Power source | AC/DC |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation | 2631 BTU/h |
Weight & dimensions
| Width | 439 mm |
|---|---|
| Depth | 682 mm |
| Height | 44 mm |
| Weight | 12.3 kg |
General
| Product family | Nexus |
|---|
