£97,526.99

Stock Available: 0
  • L2/L3
  • Basic switching RJ-45 Ethernet ports quantity: 56
  • 10G support
  • Access Control List (ACL)
  • Rack mounting
  • AC

As the world adapts to newer ways of operation, we see tremendous growth in internet usage driven by an increasing rate of digitization along with a rush to adopt a cloud-first approach. Meeting up with this demand would require significant investment from organizations. A robust and scalable solution offering best-in-class capabilities at a lower operating cost is what they need in order to expand their infrastructure and establish intelligent connections.

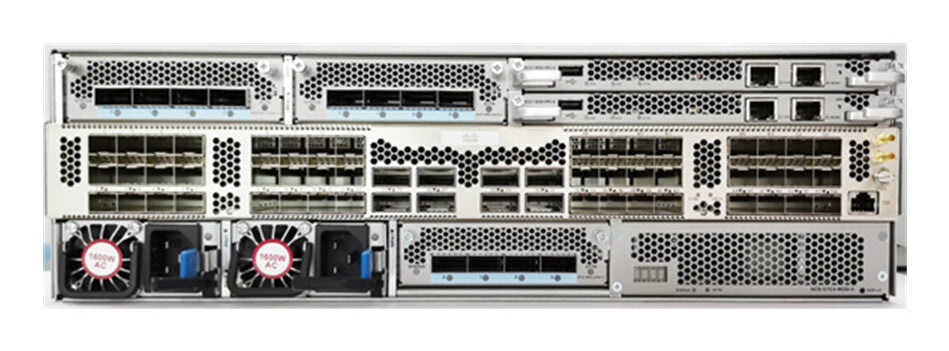

The Cisco® Network Convergence System 57C3 Series Routers (hereinafter referred to as the NCS 57C3) are designed for cost-effective delivery of next-generation networking services. These are high-capacity and low-power-consuming devices available in a 3-rack-unit compact form factor. The chassis along with the Modular Port Adapters (MPAs) provide options of using different types of interfaces ranging from 1GE to 400GE along with industry-leading MACSec encryption and Class C Timing support. These devices also provide Control Plane redundancy, thereby enabling high availability and reliability.

The Cisco NCS 57C3 Series Routers are well equipped for a range of applications such as Carrier Ethernet Aggregation, Subscriber Services, Business Ethernet, Mobile Edge, Campus, Peering and Core roles. Powered by the industry-leading Cisco IOS® XR Software, the NCS 57C3 supports a rich and comprehensive set of features like QoS, IP/MPLS, Segment Routing, SRv6, and Ethernet VPN (EVPN).

Management features
Switch layer L2/L3
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 56
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity 8
2.5G Ethernet (copper) ports quantity 48
Network
Networking standards IEEE 802.1Q, IEEE 802.1ad, IEEE 802.3ad
10G support Yes
Zero Touch Provisioning (ZTP) Yes
Ethernet LAN data rates 100,10 Mbit/s
VLAN support Yes
Optical fiber
Switching optical modules type 100 Gigabit Ethernet
Security
Access Control List (ACL) Yes
Protocols
Virtual Router Redundancy Protocol (VRRP) Yes
Routing protocols VRRP
Design
Rack mounting Yes
Product colour Grey
Power
Power source AC
AC input voltage 90 - 240 V
AC input frequency 50/60 Hz
Power consumption (typical) 445 W
Power consumption (max) 675 W
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 85%
Storage relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3000 m
Weight & dimensions
Width 438 mm
Depth 294.4 mm
Height 130.5 mm
Weight 11.2 kg
Packaging content
Manual Yes
