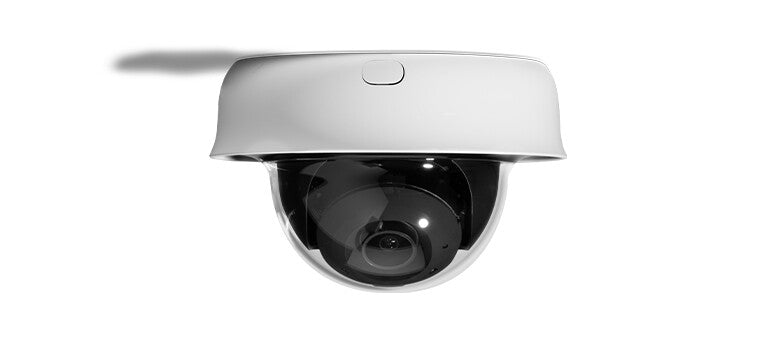

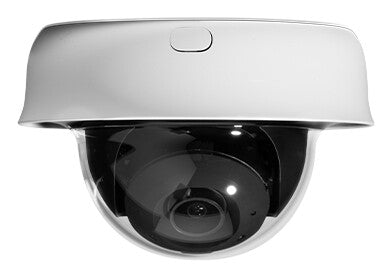

Cisco Meraki MV23 Dome IP security camera Indoor 1920 x 1080 pixels Ceiling
£1,461.99
Couldn't load pickup availability
- 512GB high write endurance SSD
- 8.4MP sensor with Smart Codec encoding
- 36-112° varifocal lens
- IR illumination up to 30 m
- 802.11ac wireless
Indoor varifocal lens dome camera with up to 60 days of retention
Crystal-clear 4K video recording with up to 60 days of intelligently optimized retention
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Day/night mode | Yes |
| Antenna type | Internal |
| Antenna gain level (max) | 4.4 dBi |
| Plug and Play | Yes |
| Design | |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| IK code | IK08 |
| Camera | |
|---|---|
| Minimum illumination | 0.01 lx |
| Angle of rotation | 90° |
| Lens viewing angle, horizontal | 112° |
| Lens viewing angle, vertical | 36° |
| Lens viewing angle, diagonal | 138° |
| Tilt angle range | 0 - 65° |
| Pan range | 0 - 354° |
| Camera shutter speed | 1/30 - 1/32000 s |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 2688 x 1520 pixels |
| Lens system | |
|---|---|
| Number of lenses | 1 |
| Optical zoom | 3x |
| Focal length range | 3 - 9 mm |
| Minimum aperture number | 1.2 |
| Maximum aperture number | 2.3 |
| Night vision | |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 8.4 MP |
| Video formats supported | H.264 |
| Video compression formats | H.264 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 20 fps |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |
| Networking standards | IEEE 802.11ac |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Cabling technology | 10/100/1000Base-T(X) |
| Frequency band | 5 GHz |
| Storage | |
|---|---|
| SSD capacity | 512 GB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | RJ-45 |
| Security | |
|---|---|
| Security algorithms | 256-bit AES, AES, EAP-TTLS, TKIP, WPA, WPA2-Enterprise, WPA2-PSK |
| Video motion detection | Yes |
| Management features | |
|---|---|
| Cloud services supported | Meraki |
| Reset button | Yes |
| Power | |
|---|---|
| Power source type | PoE |
| Power consumption (max) | 12.95 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| General | |
|---|---|
| Product family | Meraki |
| Weight & dimensions | |
|---|---|
| Height | 97 mm |
| Diameter | 14.9 cm |
| Weight | 706 g |
| Weight (with stand) | 842 g |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Quick installation guide | Yes |
