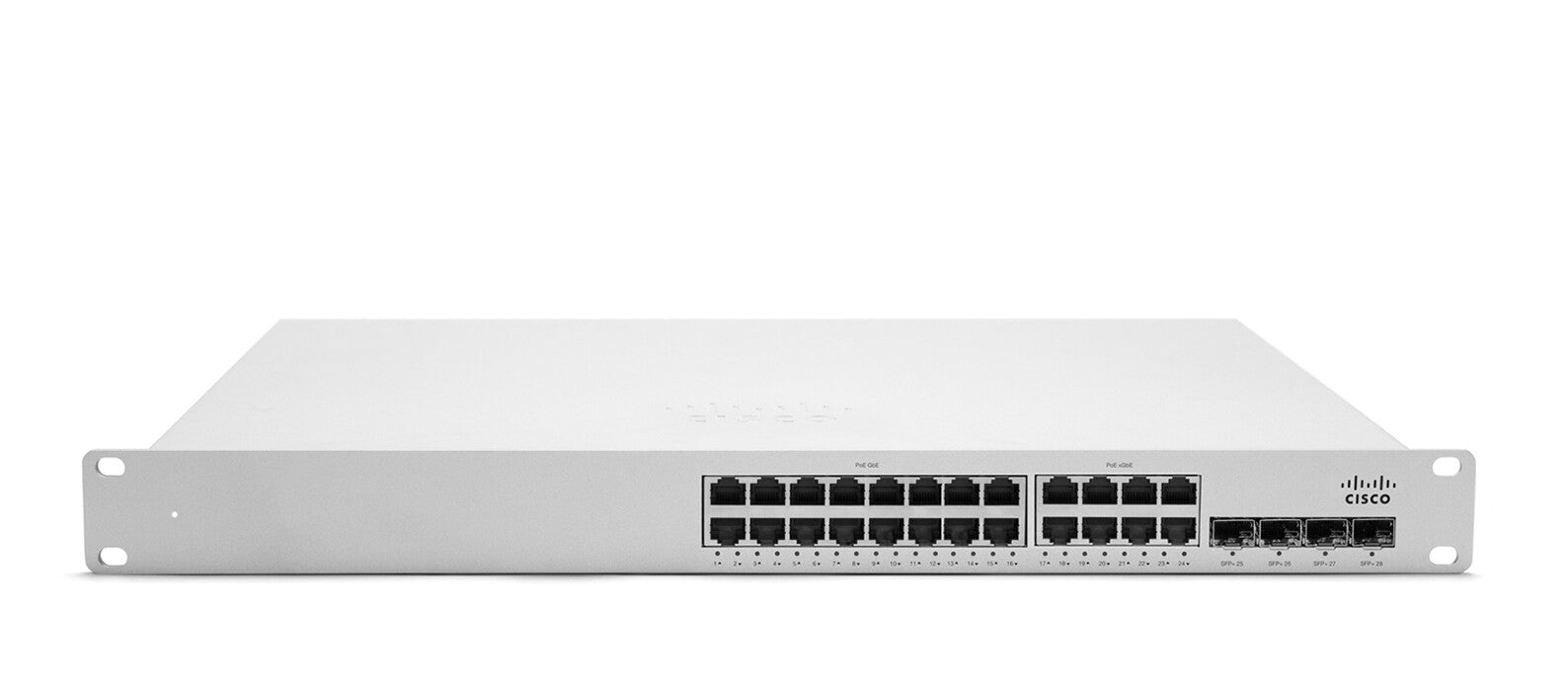

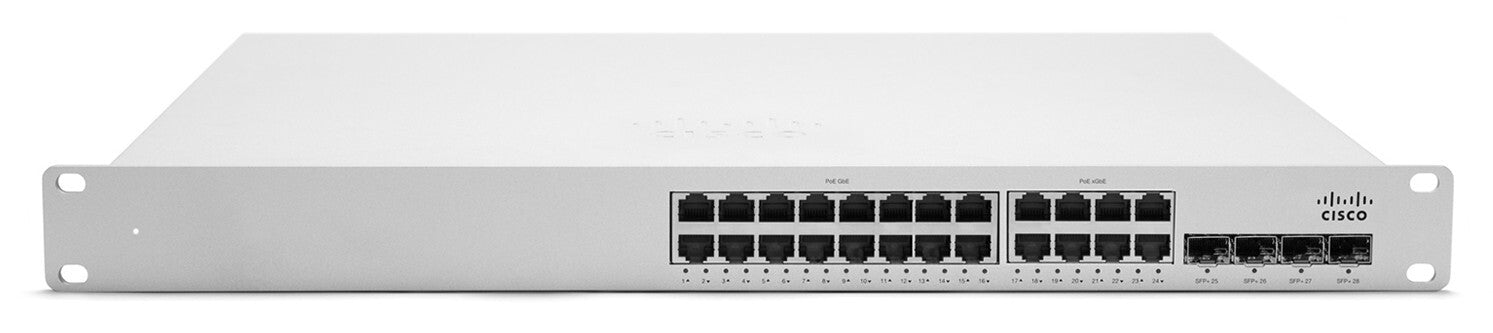

Cisco Meraki MS350-24X Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Cisco Meraki MS350-24X Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Cisco Meraki MS350-24X Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Cisco Meraki MS350-24X Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Cisco Meraki MS350-24X Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White

Cisco
£6,214.99
Stock Available: 0
  • Managed L3 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 16
  • 10G support
  • MAC address table: 512000 entries Switching capacity: 272 Gbit/s
  • 1U Rack mounting Stackable
  • Power supply included Power over Ethernet (PoE)

Switch ports/stacking ports
- 8 × mGig port
- 16 × 1G port model
- 4 × 10G SFP+ uplinks
- Stack up to 8 units
- 160 Gbps of physical stacking

Power/PoE
- Unpowered model
- MS350-24P includes 370W
- Up to 30W per 1G port
- Up to 60W per mGig port
- Modular power supply/fans

Hardware platform
- Reliable platform with 24/7 Meraki Support
- 1RU rack mountable
- Voice and video QoS
- Non-blocking switch fabric

Cloud management
- Email alerts for switch management
- Remote troubleshooting tools
- Manage ports from a GUI-based dashboard
- Zero-touch provisioning
- Per-port and per-client usage statistics
- Secure, user-scheduled firmware updates

Switching capabilities
- Layer 3
- Warm spare redundancy (VRRP)
- OSPF Routing
- MAC forwarding entries, up to 512K
- DHCP Server, DHCP Relay
- 802.1X Authentication
- DHCP Snooping
- STP Enhancements
- IPv4 and IPv6 ACLs

Management features
System event log Yes
ARP inspection Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L3
Switch type Managed
Ports & interfaces
SFP+ module slots quantity 4
Gigabit Ethernet (copper) ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 16
Network
Number of VLANs 4094
VLAN support Yes
Link aggregation Yes
Flow control support Yes
Auto MDI/MDI-X Yes
Auto-negotiation Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Full duplex Yes
Policy-based routing Yes
Port mirroring Yes
10G support Yes
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad
Data transmission
Jumbo frames 9600
Jumbo frames support Yes
Forwarding rate 202.38 Mpps
Switching capacity 272 Gbit/s
MAC address table 512000 entries
Security
Security algorithms 802.1x RADIUS
Authentication Port-based authentication
Authentication type RADIUS
Persistent MAC Learning (Sticky MAC) Yes
Whitelist Yes
IGMP snooping Yes
DHCP features DHCP server, DHCP snooping
Multicast features
Multicast support Yes
Protocols
Routing protocols CDP
Switching protocols DSCP-to-CoS, RSTP, STP, CDP, LLDP
Design
Product colour White
Form factor 1U
Stackable Yes
Rack mounting Yes
Performance
Mean time between failures (MTBF) 321515 h
Firmware upgradeable Yes
Power
Power consumption (max) 867 W
Power consumption (typical) 215 W
AC input frequency 47/63 Hz
AC input voltage 100 - 240 V
Power supply included Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port 60 W
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -5 - 50 °C
Weight & dimensions
Weight 6.6 kg
Height 44.4 mm
Depth 594.7 mm
Width 484.6 mm
General
Product family Meraki
Certificates
Certification CSA-US, FCC, IC, CE, RCM, RoHS
Logistics data
Harmonized System (HS) code 85176990
