Cisco IW-ANT-OMV-2567-N= network antenna Omni-directional antenna 7 dBi
Couldn't load pickup availability
- Omni-directional antenna Grey
- 7 dBi
- 6 GHz
- 50 Ω
- Vertical polarization Male

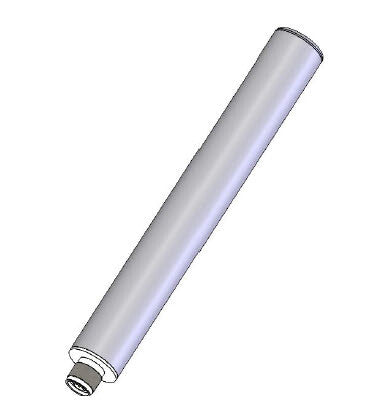

The Cisco 2.4/5/6 GHz Tri-Band Omnidirectional Antenna (IW-ANT-OMV-2567-N), is especially designed to complement interior or exterior mounted wireless network systems. The integrated male N(m) connector is embedded in the antenna base cap for direct mounting to the chosen
AP. The ingress protection rating of this antenna element permits either upright or inverted orientation in outdoor locations. The antenna may also be pole-mounted when separation from the APisrequired for ptimum positioning.
The IW-ANT-OMV-2567-N is a self-identifying antenna having circuitry that enablessupported Cisco access points(APs) to self-identify the antenna. This antenna has a built-in EEPROM that the APsread to automatically configure the antenna type and the gain in the wireless controller.
| Performance | |
|---|---|
| Vertical beam width (5 GHz) | 22° |
| Vertical beam width (2.4 GHz) | 37° |
| Bandwidth note | 5490 - 6875 MHz |
| Impedance | 50 Ω |
| Antenna gain (2.4 GHz) | 4 dBi |
| Antenna gain (5 GHz) | 7 dBi |
| Frequency band | 6 GHz |
| Antenna gain level (max) | 7 dBi |
| Features | |
|---|---|
| Power handling | 2 W |
| Purpose | Outdoor |
| International Protection (IP) code | IP67 |
| Product colour | Grey |
| Polarization | Vertical polarization |
| Connector gender | Male |
| Antenna type | Omni-directional antenna |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 137 g |
| Height | 286.8 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
