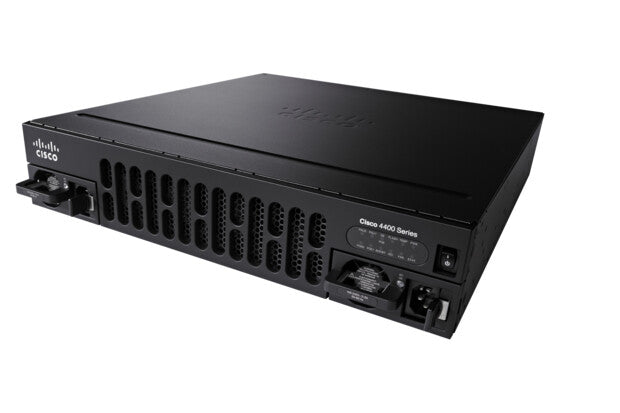

Cisco · MPN: ISR4331/K9-RF
£2,596.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £865.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Ethernet WAN
  • IEEE 802.1ag, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ah
  • Gigabit Ethernet
  • Web-based management

Cisco 4000 Family Integrated Services Routers (ISRs) form an intelligent WAN platform that delivers the performance, security, and convergence capabilities that today’s branch offices need.

The Cisco 4000 Family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With new levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet.

The Cisco 4000 Family contains five platforms: the 4451-X, 4431, 4351, 4331, and 4321 ISRs.

Cisco 4000 Family ISRs provide you with Cisco® Intelligent WAN (IWAN) software features and a converged branch infrastructure. Along with superior throughput, these capabilities form the building blocks of next-generation branch-office WAN solutions.

Cisco Intelligent WAN (IWAN)
Cisco IWAN is a set of intelligent software services that allow you to reliably and securely connect users, devices, and branch office locations across a diverse set of WAN transport links. IWAN-enabled routers like the ISR 4000 dynamically route traffic across the “best” link based on up-to-the-minute application and network conditions for great application experiences. You get tight control over application performance, bandwidth usage, data privacy, and availability of your WAN links - control that you need as your branches conduct greater volumes of mission-critical business.

Cisco Converged Branch Infrastructure
The Cisco 4000 Series ISRs consolidate many must-have IT functions, including network, compute, and storage resources. The high-performance, integrated routers run multiple concurrent IWAN services, including encryption, traffic management, and WAN optimization, without slowing your data throughput. And you can activate new services on demand through a simple licensing change.

Specifications

WAN connection

Ethernet WANYes

Network

Networking standardsIEEE 802.1ag, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ah
Ethernet interface typeGigabit Ethernet
Ethernet LANYes
Cabling technology10/100/1000Base-T(X)
Ethernet LAN data rates10,100,1000 Mbit/s
Full duplexNo
Show all 43 specificationsShow fewer specifications

Wireless LAN features

Dual-bandNo

Management features

Web-based managementYes
Quality of Service (QoS) supportYes
Reset buttonYes

Ports & interfaces

Ethernet LAN (RJ-45) ports5
USB version2.0
USB ports quantity2
RS-232 ports2
DC-in jackYes

Protocols

Routing protocolsBGP, EIGRP, IS-IS, OSPF

Security

FirewallYes
Firewall securityFirewall, IPSec VPN, EZVPN, DMVPN, FlexVPN

Features

Flash memory4000 MB
Internal memory4000 MB
Maximum memory card size16 GB
SafetyUL 60950-1, CAN/CSA C22.2 No. 60950-1, EN 60950-1, AS/NZS 60950-1, IEC 60950-1, GB-4943

Design

Product colourBlack
Rack mountingYes
Rack capacity1U
LED indicatorsYes
On/off switchYes

Power

Power consumption (typical)42 W
Power supply250 W
Power source typeAC, DC
AC input voltage100 - 240 V
AC input frequency47 - 63 Hz
Input current3 A

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 85%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3050 m
Non-operating altitude0 - 4750 m

Weight & dimensions

Width438.1 mm
Depth438.1 mm
Height44.5 mm
