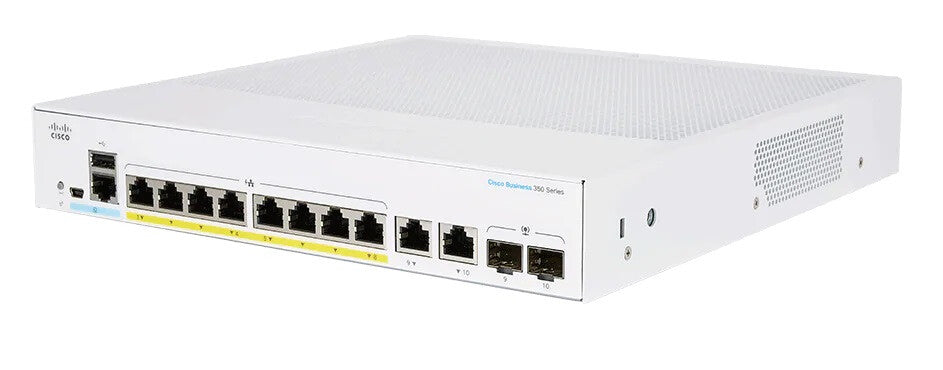

Cisco CBS250-8P-E-2G Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver
Couldn't load pickup availability
- Managed L2/L3 Web-based management SNMP
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RJ-45/Mini-USB
- Cat5e 10BASE-T, 100BASE-TX, 1000BASE-T
- MAC address table: 8000 entries Switching capacity: 20 Gbit/s
- 512 Access Control List (ACL)
- 1U Rack mounting
- Power supply included Power over Ethernet (PoE)
In today's hyperconnected world, reliable access to network resources is critical to all businesses. However, you also need to invest wisely to stay competitive, knowing how to separate the essential from the extraneous and get the most value for your dollar. While building a solid foundation for your business network infrastructure is essential, it doesn’t mean you need the most advanced feature set on the market.
For businesses requiring high performance, advanced security, and rich manageability from the network, fully managed switches are an excellent choice. However, they also typically come with high price tags. Smart switches provide the right level of network features and capabilities for growing businesses at an affordable price, so you’ll have more dollars to put toward growing your business.
With Cisco® Business 250 Series Smart Switches, you can achieve enterprise-grade network performance and security without paying for advanced network features that you will not use. When you need a reliable solution to share online resources and connect computers, phones, and wireless access points, Cisco Business 250 Series Smart Switches provide the ideal solution at an affordable pricing point.
The Cisco Business 250 Series is the next generation of affordable smart switches that combine powerful network performance and reliability with a complete suite of the network features you need for a solid business network. These powerful Gigabit Ethernet switches, with Gigabit or 10 Gigabit Ethernet uplinks, provide multiple management options, sophisticated security capabilities, and fine-tuned Quality of Service (QoS) and Layer 3 static routing features far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches. And with an easy-to-use web user interface and Power over Ethernet Plus (PoE+) capability, you can deploy and configure a complete business network in minutes.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| System event log | Yes |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1af, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e |
| Port mirroring | Yes |
| IP routing | Yes |
| Active link detection | Yes |
| Cable length detection | Yes |
| Rate limiting | Yes |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 255 |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| Number of queues | 8 |
| Static route | Yes |
| Number of static routes | 32 |
| Number of IP interfaces | 16 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 1.5 MB |
| Security | |
|---|---|
| DHCP features | DHCP relay, DHCPv6 client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| IGMP snooping | Yes |
| Password protection | Yes |
| Queue scheduling algorithms | SP, Weighted Round Robin (WRR) |
| Authentication type | IEEE 802.1x, RADIUS |
| Authentication | Guest VLAN, Port-based authentication |
| Security algorithms | HTTPS, SSH, SSL/TLS |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | MLD v1/2 |
| Protocols | |
|---|---|
| Management protocols | SNMP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL) |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Silver |
| Reset button | Yes |
| LED indicators | Yes |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 1706649 h |
| Power | |
|---|---|
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 67 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 275.91 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 268 mm |
| Depth | 185 mm |
| Height | 44 mm |
| Weight | 1.53 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, WEEE |
| Certification | UL (UL 60950), CSA (CSA 22.2), FCC 15 (CFR 47) A |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
