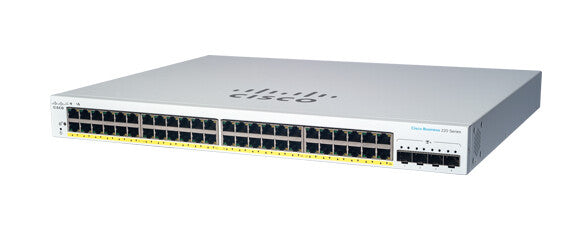

Cisco CBS220-48FP-4X Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
£680.99
Couldn't load pickup availability
- Managed L2 Web-based management SNMP
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 48
- 10G support
- MAC address table: 8192 entries Switching capacity: 176 Gbit/s
- 512 Access Control List (ACL)
- Rack mounting
- Power over Ethernet (PoE)
Cisco Business 220 Series Smart Switches
The Cisco Business 220 Series are affordable smart switches with ease of use, security, and reliability for business-class networks. With intuitive dashboard, Power over Ethernet (PoE) options, and customizable features, these switches deliver a solid business network within your budget parameters. When you need a business-class network and cost is top priority, Cisco Business 220 Series provides an excellent solution.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1x |
| 10G support | Yes |
| Port mirroring | Yes |
| Head-of-line (HOL) blocking | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Number of VLANs | 256 |
| Data transmission | |
|---|---|
| MAC address table | 8192 entries |
| Switching capacity | 176 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Security | |
|---|---|
| DHCP features | DHCP client |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) rules | 512 |
| IGMP entries | 256 |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Security algorithms | SSL/TLS |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| MAC address filtering | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Number of multicast groups filtered | 256 |
| Protocols | |
|---|---|
| Management protocols | SNMP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Number of fans | 1 fan(s) |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 740 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 350 mm |
| Height | 44 mm |
| Weight | 5.65 kg |
