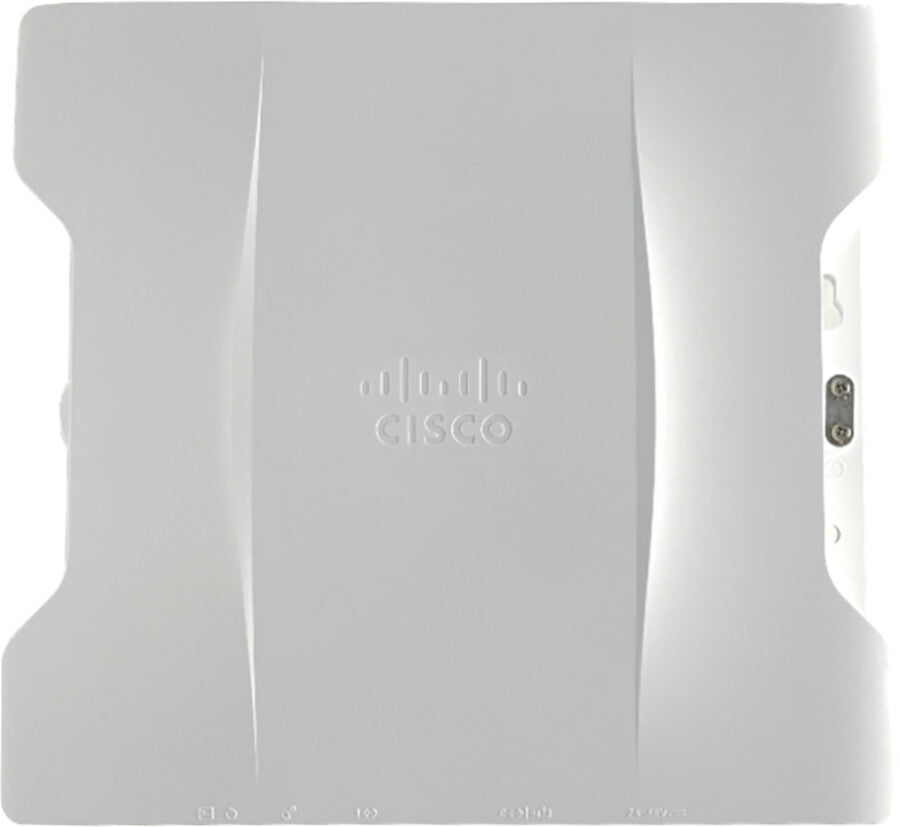

Cisco Catalyst IW9167I 7800 Mbit/s White Power over Ethernet (PoE)
£2,667.99
Couldn't load pickup availability
- 2.4 GHz
- 5 GHz
- 6 GHz
- Maximum data transfer rate: 7800 Mbit/s
- IEEE 802.3at, IEEE 802.3bt, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11h, IEEE 802.11d, IEEE 802.11v, IEEE 802.11u, IEEE 802.11k, IEEE 802.11r, IEEE 802.11i, IEEE 802.1x
- AES, TKIP, WPA3, WPA2, WPA, EAP-TLS, EAP-TTLS, PEAP
- Power over Ethernet (PoE)
- Internal
The Catalyst IW9167I is designed to make wireless deployments simple in outdoor and industrial environments. It is built with a cast-aluminum case that can handle water, dust, and extreme temperatures. It comes with a built-in antenna that enables high-throughput connectivity for high-density Wi-Fi clients.
The IW9167I supports Wi-Fi 6 technology and 6-GHz frequency band. That way organizations can deploy Wi-Fi 6E and get up to 1.2 GHz more spectrum to boost capacity and mitigate interference.
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 6 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 7800 Mbit/s |
| Ethernet LAN data rates | 100,1000,2500,5000 Mbit/s |
| Frequency band | 2.412 - 2.462, 4.92 - 4.98, 5.18 - 5.32, 5.5 - 5.72, 5.745 - 5.825, 5.955 - 6.415, 6.535 - 6.855 GHz |
| Networking standards | IEEE 802.3at, IEEE 802.3bt, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11h, IEEE 802.11d, IEEE 802.11v, IEEE 802.11u, IEEE 802.11k, IEEE 802.11r, IEEE 802.11i, IEEE 802.1x |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.1 |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Security | |
|---|---|
| Security algorithms | AES, TKIP, WPA3, WPA2, WPA, EAP-TLS, EAP-TTLS, PEAP |
| Management features | |
|---|---|
| Firmware upgradeable | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| SFP/SFP+ slots quantity | 1 |
| DC-in jack | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 24 - 48 V |
| Design | |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP66, IP67 |
| Reset button | Yes |
| LED indicators | System |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 5.81 dBi |
| Performance | |
|---|---|
| Internal memory | 2048 MB |
| Flash memory | 1024 MB |
| Weight & dimensions | |
|---|---|
| Width | 292 mm |
| Depth | 267 mm |
| Height | 76 mm |
| Weight | 3.6 kg |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Bundled software | IOS XE Software Release 17.12.1+ |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 100% |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 85 °C |
