Cisco Catalyst IW9165E Black Power over Ethernet (PoE)
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £490.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 2.4 GHz
- 5 GHz
- 6 GHz
- IEEE 802.3af, IEEE 802.3at, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11ac, IEEE 802.11ax
- EAP-TLS, EAP-TTLS, PEAP
- Power over Ethernet (PoE)
- External

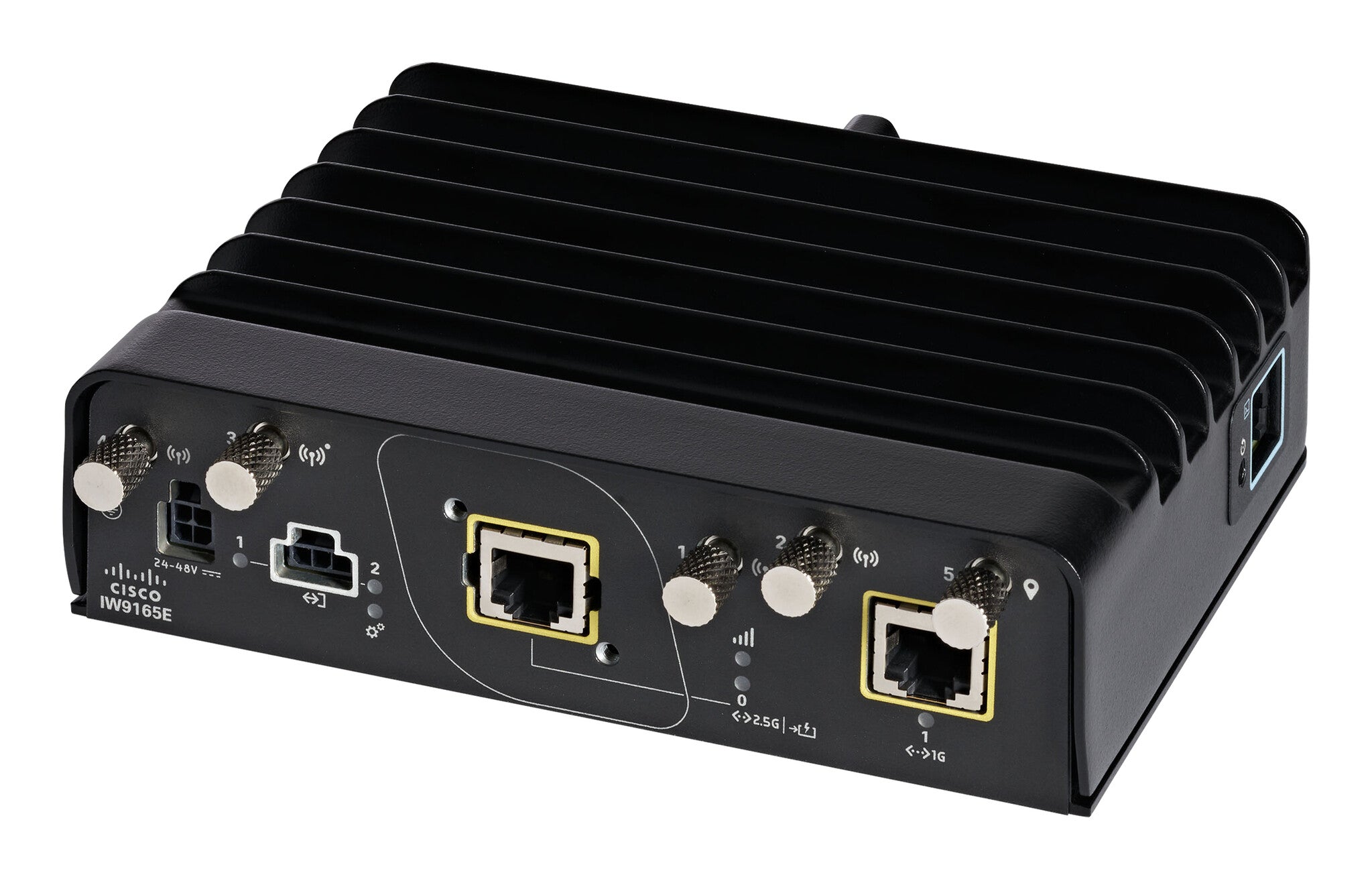

The Catalyst IW9165E is designed to add ultra-reliable wireless connectivity to moving vehicles and machines. Its compact form factor makes it very simple to integrate into industrial assets. It can operate as WGB unit, URWB unit, as Wi-Fi AP, or URWB and WI-Fi AP simultaneously to enable any use case and leverage the existing wireless environment.
The Catalyst IW9165E supports WGB mode, which allows it to connect to a Cisco access point infrastructure, and Universal WGB (uWGB) mode, which allows it to connect to a third-party access point infrastructure. Both of these modes help bridge the wired clients that are behind the WGB to the access point on the infrastructure side.
Low power consumption, rugged IP30 design, small form factor, and DIN rail mount capabilities make the Catalyst IW9165E an ideal product operating as a wireless client for Automated Guided Vehicle (AGV) and Autonomous Mobile Robot (AMR) deployments, or as a Wi-Fi AP to be installed in cabinets and other places where size is a limiting factor. An M12 adapter and rail certifications make the Catalyst IW9165E a preferred choice for onboard train deployments as well.
Specifications
Features
| 2.4 GHz | Yes |
|---|---|
| 6 GHz | Yes |
| 5 GHz | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Frequency band | 5.5 - 5.7, 5.745 - 5.825 GHz |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11ac, IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.0 |
| MIMO | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
Security
| Security algorithms | EAP-TLS, EAP-TTLS, PEAP |
|---|
Show all 37 specificationsShow fewer specifications
Management features
| Firmware upgradeable | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 3 |
|---|---|
| DC-in jack | Yes |
Power
| Power over Ethernet (PoE) type supported | PoE+ |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 24 - 48 V |
Design
| Placement | Wall |
|---|---|
| Product colour | Black |
| International Protection (IP) code | IP30 |
| Reset button | Yes |
| LED indicators | System, Signal strength |
Antenna
| Antenna type | External |
|---|---|
| Antenna gain level (max) | 15 dBi |
| Number of connectors | 5 |
Performance
| Internal memory | 2048 MB |
|---|---|
| Flash memory | 1024 MB |
Weight & dimensions
| Width | 152 mm |
|---|---|
| Depth | 124 mm |
| Height | 43 mm |
| Weight | 750 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|---|
| Bundled software | Unified Industrial Wireless Software Release 17.13.1+ |
Operational conditions
| Operating relative humidity (H-H) | 5 - 95% |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
