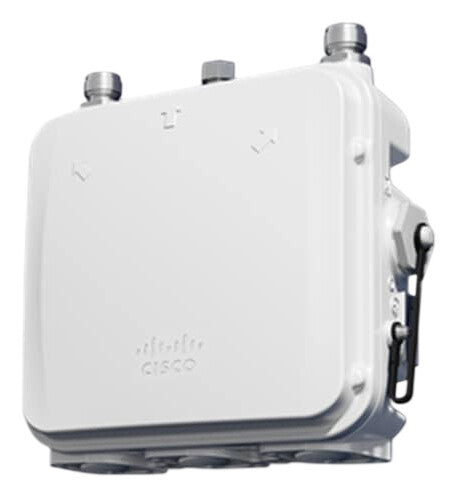

Cisco Catalyst IW9165D White Power over Ethernet (PoE)
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £624.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 2.4 GHz
- 5 GHz
- 6 GHz
- IEEE 802.3af, IEEE 802.3at, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11ac, IEEE 802.11ax
- EAP-TLS, EAP-TTLS, PEAP
- Power over Ethernet (PoE)
- Internal & external
The Catalyst IW9165D is designed to make wireless backhaul deployment simple. It comes with a built-in directional antenna that enables long-range, high-throughput connectivity anywhere fiber is not an option, so you can create a fixed wireless infrastructure (point-to-point, point-to-multipoint, and mesh) as well as backhaul traffic from mobile devices along wayside or trackside deployments. The external antenna ports let you quickly extend your network to new places when needed and choose the right antenna based on the use cases and deployment architectures. With heavy-duty IP67 design, the Catalyst IW9165D is certified to operate under wet, dusty, and extreme temperature conditions.
Specifications
Features
| 2.4 GHz | Yes |
|---|---|
| 6 GHz | Yes |
| 5 GHz | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Frequency band | 5.26 - 5.32, 5.5 - 5.7, 5.745 - 5.825 GHz |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11ac, IEEE 802.11ax |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.0 |
| MIMO | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
Security
| Security algorithms | EAP-TLS, EAP-TTLS, PEAP |
|---|
Show all 38 specificationsShow fewer specifications
Management features
| Firmware upgradeable | Yes |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 3 |
|---|---|
| DC-in jack | Yes |
Power
| Power over Ethernet (PoE) type supported | PoE+ |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 24 - 48 V |
Design
| Placement | Pole |
|---|---|
| Product colour | White |
| International Protection (IP) code | IP66, IP67 |
| Reset button | Yes |
| LED indicators | System |
Antenna
| Antenna type | Internal & external |
|---|---|
| Antenna direction type | Directional |
| Antenna gain level (max) | 15 dBi |
| Number of connectors | 3 |
Performance
| Internal memory | 2048 MB |
|---|---|
| Flash memory | 1024 MB |
Weight & dimensions
| Width | 183 mm |
|---|---|
| Depth | 91 mm |
| Height | 180 mm |
| Weight | 2 kg |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|---|
| Bundled software | Unified Industrial Wireless Software Release 17.12.1+ |
Operational conditions
| Operating relative humidity (H-H) | 0 - 95% |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
