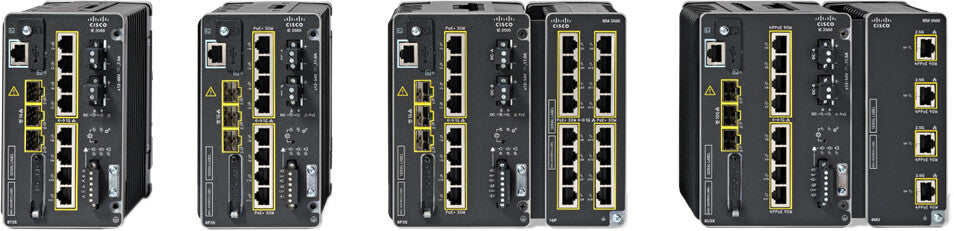

Cisco Catalyst IE3500 Managed L2/L3 Gigabit Ethernet (10/100/1000) Black
Cisco Catalyst IE3500 Managed L2/L3 Gigabit Ethernet (10/100/1000) Black

Cisco Catalyst IE3500 Managed L2/L3 Gigabit Ethernet (10/100/1000) Black

Cisco · MPN: IE-3500-8T3X-A
£6,721.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £2,240.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview
  • Managed L2/L3 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8 Console port: RS-232
  • 10G support
  • MAC address table: 24000 entries
  • Access Control List (ACL)
  • Rack mounting
  • DC

The Cisco IE3500 Rugged Series switches deliver high bandwidth, higher power and feature rich switching performance in a rugged and modular form factor. The Cisco IE3500 Rugged Series are designed with features that enable the industrial network infrastructure to seamlessly accommodate machine vision use cases, AI-driven analysis, virtualization, large scale networks, robust security, and edge-to-cloud connectivity.

Specifications

Management features

Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Cloud-managedYes
Web-based managementYes
ARP inspectionYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
USB Type-C ports quantity1
Fiber ports quantity3
Fiber optic connectorSFP
Console portRS-232
Power connectorDC-in jack
Show all 61 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.1Q, IEEE 802.1w, IEEE 802.1ab, IEEE 802.1s, IEEE 802.3ad, IEEE 802.1x, IEEE 802.1AE, IEEE 802.1D, IEEE 802.1p, IEEE 802.3ah, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
10G supportYes
Policy-based routingYes
IP routingYes
Full duplexYes
IPv6 routes3500
IPv4 routes7000
Rate limitingYes
Spanning tree protocolYes
Link aggregationYes
Ethernet LAN data rates10,100,1000 Mbit/s
VLAN supportYes
Virtual LAN featuresVoice VLAN
Number of VLANs1024

Data transmission

MAC address table24000 entries
Number of queues8
Static routeYes
Jumbo frames supportYes
Jumbo frames9198

Security

DHCP featuresDHCP server, DHCP snooping, DHCPv6 relay
Access Control List (ACL)Yes
IGMP entries1024
IGMP snoopingYes
BPDU filtering/protectionYes
Authentication typeRADIUS, TACACS+
AuthenticationMAC-based authentication
SSH/SSL supportYes
MAC address filteringYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
Product colourBlack
DIN rail mountingYes

Performance

Memory typeDRAM
Internal memory8192 MB
Mean time between failures (MTBF)518082 h

Power

Power sourceDC
DC input voltage12 - 48 V
Input current11.7 A
Power consumption (typical)37 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width101.1 mm
Depth134.4 mm
Height152.4 mm
Weight2.13 kg

General

Product familyCatalyst

Certificates

Compliance certificatesREACH, RoHS, WEEE
