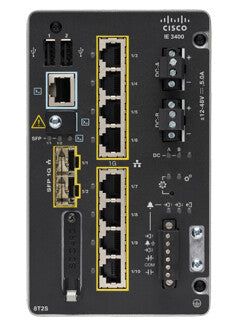

Cisco · MPN: IE-3400-8T2S-A-RF
£4,948.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,649.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview

  • Managed L2
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 8
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 8000 entries
  • Access Control List (ACL)
  • Rack mounting

Advanced features support for digital transformation

Cisco Catalyst IE 3400 Rugged Series is capable of redundancy protocols and time-sensitive networking, ensuring high availability for mission-critical applications. This switch platform is also capable of advanced security for Intent Based Networking.

Modular, versatile switch design

The Cisco Catalyst IE 3400 Rugged Series offers nine modules with copper, fiber, and power over ethernet port options. The platform provides the flexibility to adapt to your growing network connectivity needs and helps to future-proof your investments.

Compact form factor for rugged switch use cases

Measuring 25 percent smaller than the IE3400, the Cisco Catalyst IE3400 Rugged Series is easy to integrate into space and power constrained cabinet installations. Its rugged die-cast chassis is well suited for the harshest environments.

Fast speed, all Gigabit Ethernet

Accelerate digital transformation and upgrade your Internet of Things (IoT) infrastructure to Gigabit speeds. The Cisco Catalyst IE3400 Rugged Series can expand up to 26 ports of Gigabit Ethernet for a wide variety of connectivity needs.

Open extensible platform with IOS XE

Cisco IOS XE is the next-generation network operating system, with built-in open and standards-based APIs and multilayer security that inspires trust. This unified software stack is superb for process and workflow automation, enabling you to qualify and deploy new network connectivity services quicker.

Extend intent-based networking to the IoT edge

With Cisco’s highly scalable, flexible, secure and easy-to-deploy industrial IoT platforms - improve uptime, lower operating costs and future-proof your investments.

Specifications

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
ARP inspectionYes
System event logYes
MIB support802.1X MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-UDLDP-MIB, CISCO-ENVMON-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PAE-MIB, Cisco-Port-QoS-MIB, CISCO-ERR-DISABLE-MIB, CISCO- PROCESS-MIB, LLDP-MIB, CiscoMACNotification-MIB, CISCO-CONFIG-COPY-MIB, LLDP-MED-MIB, Bridge-MIB, CISCO-CAR-MIB, CISCO-LAG-MIB, CISCO-SYSLOG-MIB, CISCO-FTP-CLIENT-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, Cisco-REP-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-CDP-MIB, CISCO-IP-STAT-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-STP-EXTN-MIB, CISCO-VTP-MIB, IEEE8023-LAG-MIB, SMON-MIB, CISCO-ACCESS-ENVMON-MIB, CISCO-CALLHOME-MIB, CISCO-CONFIG-MAN-MIB, CISCO-FLASH-MIB, CISCO-ENTITY-SENSOR-MIB, IP-MIB, CISCO-PAGP-MIB

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Fiber ports quantity2
Fiber optic connectorSFP
USB 2.0 ports quantity3
Compatible memory cardsSD
Show all 53 specificationsShow fewer specifications

Network

Networking standardsIEEE 1588, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Spanning tree protocolYes
Broadcast storm controlYes
Link aggregationYes
VLAN supportYes
Number of VLANs256

Data transmission

MAC address table8000 entries
Number of queues8

Security

DHCP featuresDHCP snooping
Access Control List (ACL)Yes
Access Control List (ACL) IPv4 entries2000
Access Control List (ACL) IPv6 entries512
IGMP entries1000
IGMP snoopingYes
BPDU filtering/protectionYes
AuthenticationGuest VLAN
Security algorithms802.1x RADIUS, SNMPv3, SSH
MAC address filteringYes

Multicast features

Multicast supportYes

Design

Rack mountingYes
Product colourBlack
RefurbishedYes
DIN rail mountingYes
International Protection (IP) codeIP20

Performance

Internal memory4000 MB
Flash memory1500 MB
Mean time between failures (MTBF)549808 h

Power

DC input voltage9.6 - 60 V
Input current6.3 A
Power consumption (typical)36 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Non-operating altitude0 - 4572 m

Weight & dimensions

Width152.4 mm
Depth134.6 mm
Height91.4 mm

General

Product familyCatalyst
