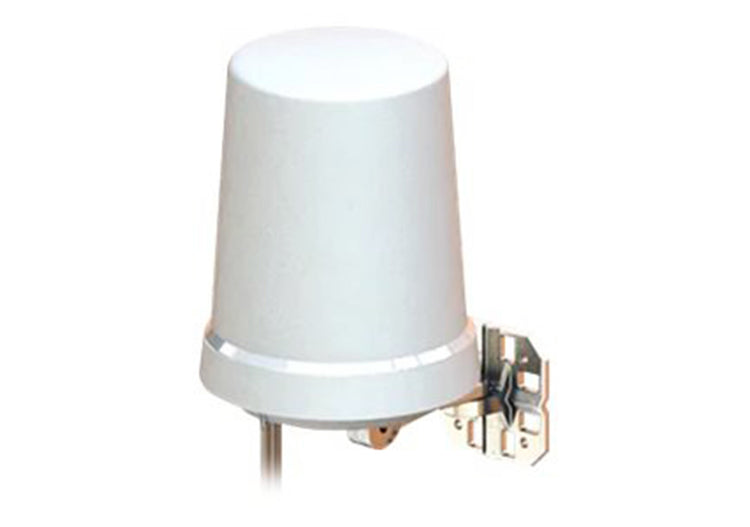

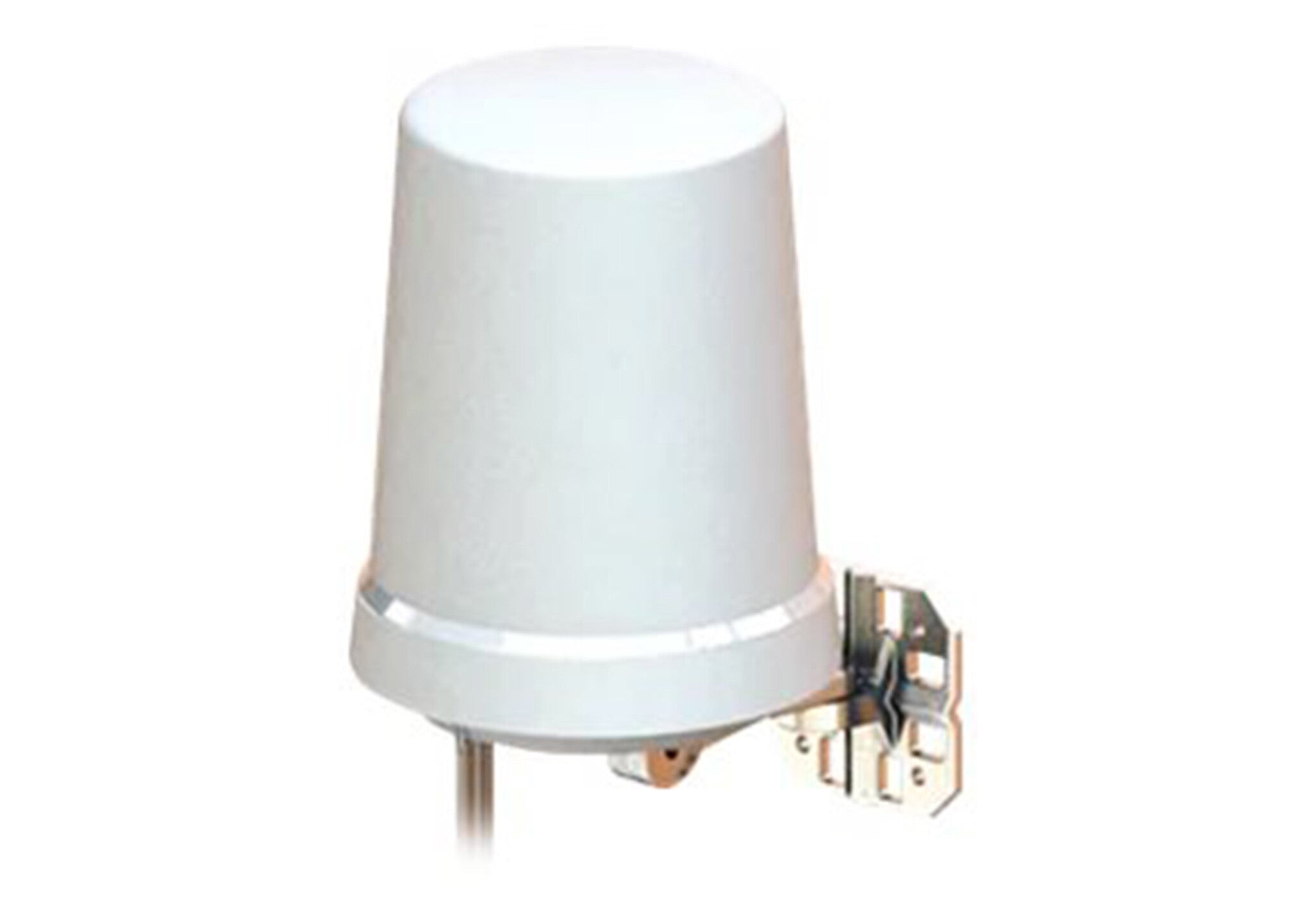

Cisco Catalyst Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/4 dBi (5 GHz), MIMO (8 Dual-Band Ports), DART Connector, 1-Year Limited Hardware Warranty (C-ANT9102=)
£1,544.99
Couldn't load pickup availability
- OMNIDIRECTIONAL WI-FI ANTENNA: 4 dBi (2.4 GHz)/4 dBi (5 GHz), MIMO (8 dual-band ports); designed for indoor use with Cisco Catalyst 9130AX Series access points
- CONNECTION AND MOUNT: DART connector; wall or pole mount
- 360-DEGREE RADIATION PATTERN: Intended for deployment when coverage in all directions from the antenna is required
- PERFORMANCE: Designed for improved coverage
- PEACE OF MIND: 1-year limited hardware warranty
The Cisco Catalyst C-ANT9102= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved coverage and performance in mind. This FCC-approved omnidirectional antenna provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions from the antenna is required.
| Performance | |
|---|---|
| Impedance | 50 Ω |
| Antenna gain (2.4 GHz) | 4 dBi |
| Antenna gain (5 GHz) | 4 dBi |
| Gain | 4 dBi |
| Frequency band | 5.15 – 7.125 |
| Antenna gain level (max) | 4 dBi |
| Features | |
|---|---|
| Cable length | 0.6 m |
| Mounting | Wall/Pole |
| International Protection (IP) code | IP66 |
| Product colour | White |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Polarization | Dual polarization |
| Antenna type | Omni-directional antenna |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.04 kg |
| Diameter | 20.4 cm |
| Packaging data | |
|---|---|
| Package weight | 1.99 kg |
| Package height | 396 mm |
| Package depth | 213.9 mm |
| Package width | 213.9 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Country of origin | Malaysia |
