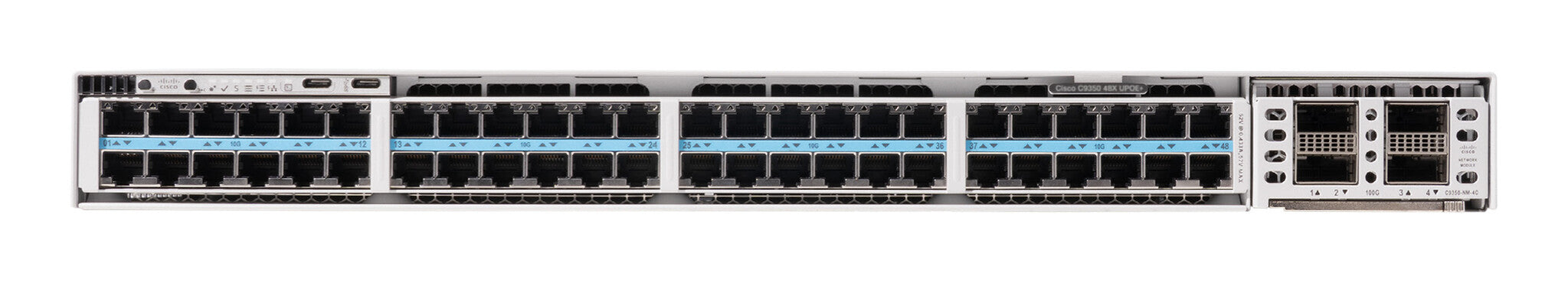

Cisco Catalyst C9350-48HX network switch Managed L3 Power over Ethernet (PoE) 1U Grey
£15,137.99
Couldn't load pickup availability
- Cisco C9350-48HX is powered by dual Silicon One A100/L ASICs, delivering 1.3 Tbps of throughput per ASIC for superior performance and future-ready infrastructure
- Cisco C9350-48HX provides 90W on all ports through UPOE+ (IEEE 802.3bt Type 4), with a total PoE budget of 4320W
- Cisco C9350-48HX supports 10 Mbps to 10 Gbps (10M/100M/1G/2.5G/5G/10G) downlinks; 10 Mbps is full-duplex only
- Cisco C9350-48HX features scalable StackWise-1.6 T technology, enabling up to 1.6 Tbps of stack bandwidth and supporting as many as 448 multigigabit and 384 UPOE+ ports in an eight-switch stack
- Cisco C9350-48HX supports up to 400G bandwidth for modular uplinks (C9350-NM-4C, C9350-NM-2C, C9350-NM-8Y), ensuring ample throughput for bandwidth-intensive enterprise applications
Cisco C9350-48HX is optimized for enterprise access layer deployments requiring high-throughput multigigabit Ethernet and scalable power delivery.
Designed for dense access environments with multigigabit interfaces supporting Wi-Fi 6/6E/7 and up to 90W UPOE+ per port for powering smart building systems, IP surveillance, and IT/OT endpoints.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3bt |
| 10G support | Yes |
| Full duplex | Yes |
| VLAN support | Yes |
| Data transmission | |
|---|---|
| MAC address table | 64000 entries |
| Switching capacity | 2096 Gbit/s |
| Static route | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Security | |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Performance | |
|---|---|
| Internal memory | 16000 MB |
| Flash memory | 18000 MB |
| Mean time between failures (MTBF) | 277660 h |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 230 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 90 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 4320 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 445 mm |
| Depth | 472 mm |
| Height | 44 mm |
| Weight | 8.5 kg |
| Packaging content | |
|---|---|
| Manual | Yes |
| General | |
|---|---|
| Product family | Catalyst |
