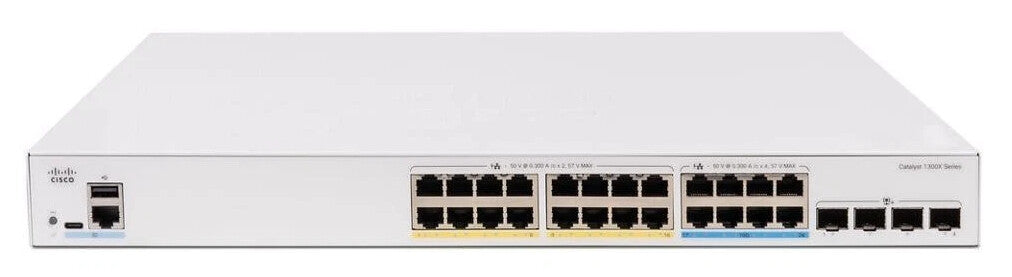

Cisco Catalyst C1300X-24NGU-4X network switch Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) Grey
Couldn't load pickup availability
- 16 x 10/100/1000 30W PoE+ ports
- 8 x 5G 60W PoE++ ports
- 4 x 10G SFP28 (10G Uplink, 25G available for stacking only)
- 740W PoE power budget
- Rack-mountable
Critical building block for any branch office or SMB office network
From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be top of mind, while ongoing management and operations add complexity that takes time and resources.
The Cisco Catalyst™ 1300/X Series Switches are affordable, simple-to-use switches designed and built for enterprise branch offices as well as SMB networks. Managed through the Cisco® Business Dashboard and Cisco Business mobile app, the switch portfolio provides a simple and reliable experience.
The Cisco Catalyst 1300/X Series Switches are fixed, managed, enterprise-class Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300/X Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300/X Series switches provide the ideal combination of affordability and capabilities for branches and growing networks and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300/X Series Switches.
| Management features | |
|---|---|
| MIB support | Y |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| SFP28 ports quantity | 4 |
| Console port | RJ-45/USB Type-C |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity | 28 |
| Network | |
|---|---|
| Virtual LAN features | Private VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| QinQ implementation | Selective QinQ |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Head-of-line (HOL) blocking | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| 10G support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1D |
| Data transmission | |
|---|---|
| Packet buffer memory | 3 MB |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| Number of static routes | 990 |
| Static route | Yes |
| Number of queues | 8 |
| Switching capacity | 192 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Security algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2 |
| Authentication | MAC-based authentication, Web-based authentication |
| Authentication type | RADIUS, TACACS+ |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| SSH/SSL support | Yes |
| DoS attack prevention | Yes |
| IGMP snooping | Yes |
| IGMP proxy | Yes |
| Access Control List (ACL) rules | 3072 |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| IPv4 & IPv6 features | ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
|---|---|
| Reset button | Yes |
| Product colour | Grey |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 343272 h |
| Plug and Play | Yes |
| Noise level | 49.5 dB |
| Flash memory | 1000 MB |
| Internal memory | 21000 MB |
| Memory type | DDR4-SDRAM |
| Power | |
|---|---|
| Power consumption (max) | 870.8 W |
| Power consumption (typical) | 103.9 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 220 V |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 740 W |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet (PoE) type supported | PoE++ (4PPoE) |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 3104.3 BTU/h |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | -5 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.23 kg |
| Height | 43.9 mm |
| Depth | 270 mm |
| Width | 444.3 mm |
| General | |
|---|---|
| Product family | Catalyst |
| Certificates | |
|---|---|
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
