Cisco Catalyst C1000FE-24T-4G-L Managed L2 Grey
Cisco Catalyst C1000FE-24T-4G-L Managed L2 Grey

Cisco Catalyst C1000FE-24T-4G-L Managed L2 Grey

Cisco · MPN: C1000FE-24T-4GL-RF
£210.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £70.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Processor modelARM7
  • Internal memory512 MB
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • Managed L2 Web-based management
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 24 Console port: RJ-45/Mini-USB
  • MAC address table: 16000 entries Switching capacity: 56 Gbit/s
  • Access Control List (ACL)

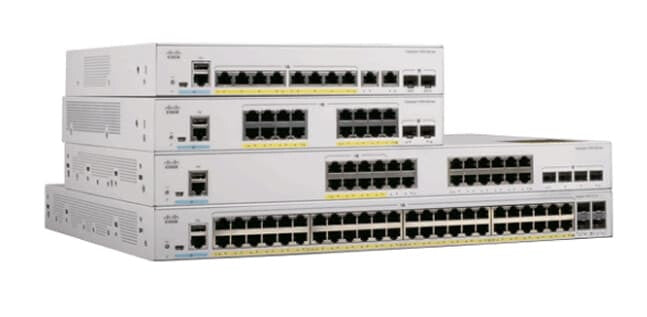

Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet and Fast Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco® Catalyst® 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

Specifications

Management features

Switch typeManaged
Switch layerL2
Quality of Service (QoS) supportYes
Web-based managementYes
Traffic classificationYes
Configuring Location Settings (CLI)Yes
ARP inspectionYes
MIB supportY

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity24
Combo SFP ports quantity2
Console portRJ-45/Mini-USB
USB 2.0 ports quantity1
Show all 63 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
10G supportNo
Full duplexYes
Spanning tree protocolYes
Broadcast storm controlYes
Link aggregationYes
Ethernet LAN data rates10,100,1000 Mbit/s
Auto MDI/MDI-XYes
VLAN supportYes
Number of VLANs4094

Data transmission

MAC address table16000 entries
Switching capacity56 Gbit/s
Forwarding rate41.67 Mpps
Static routeYes
Number of static routes16
Jumbo frames supportYes
Jumbo frames10240

Security

DHCP featuresDHCP snooping
Access Control List (ACL)Yes
IGMP entries1024
IGMP snoopingYes
BPDU filtering/protectionYes
Authentication typeRADIUS
AuthenticationWeb-based authentication
SSH/SSL supportYes
Loop protectionYes

Multicast features

Multicast supportYes
IPv4 multicast entries1024
IPv6 multicast entries1024

Design

Product colourGrey
LED indicatorsYes

Performance

Built-in processorYes
Processor modelARM7
Processor frequency800 MHz
Memory typeDRAM
Internal memory512 MB
Flash memory256 MB
Mean time between failures (MTBF)2026793 h

Power

AC input voltage110 - 240 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-5 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 4500 m

Weight & dimensions

Width444.5 mm
Depth240 mm
Height44 mm
Weight2.63 kg

General

Product familyCatalyst
