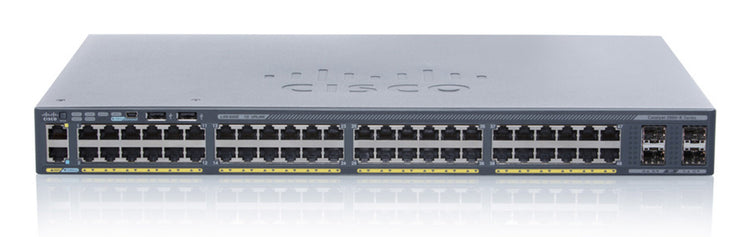

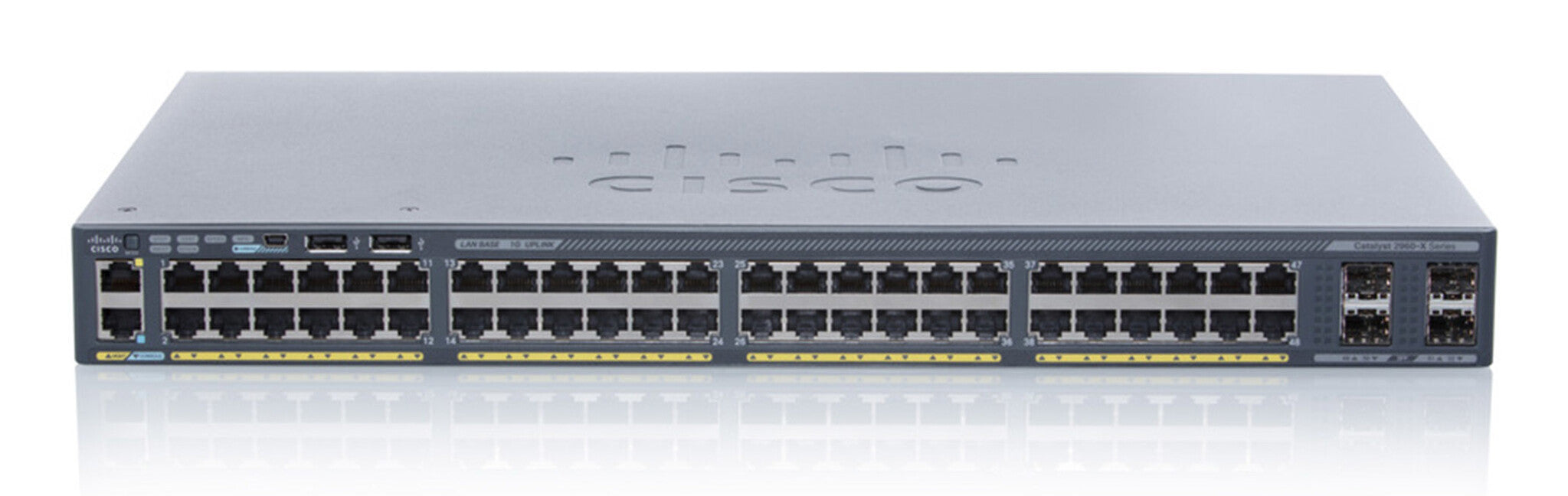

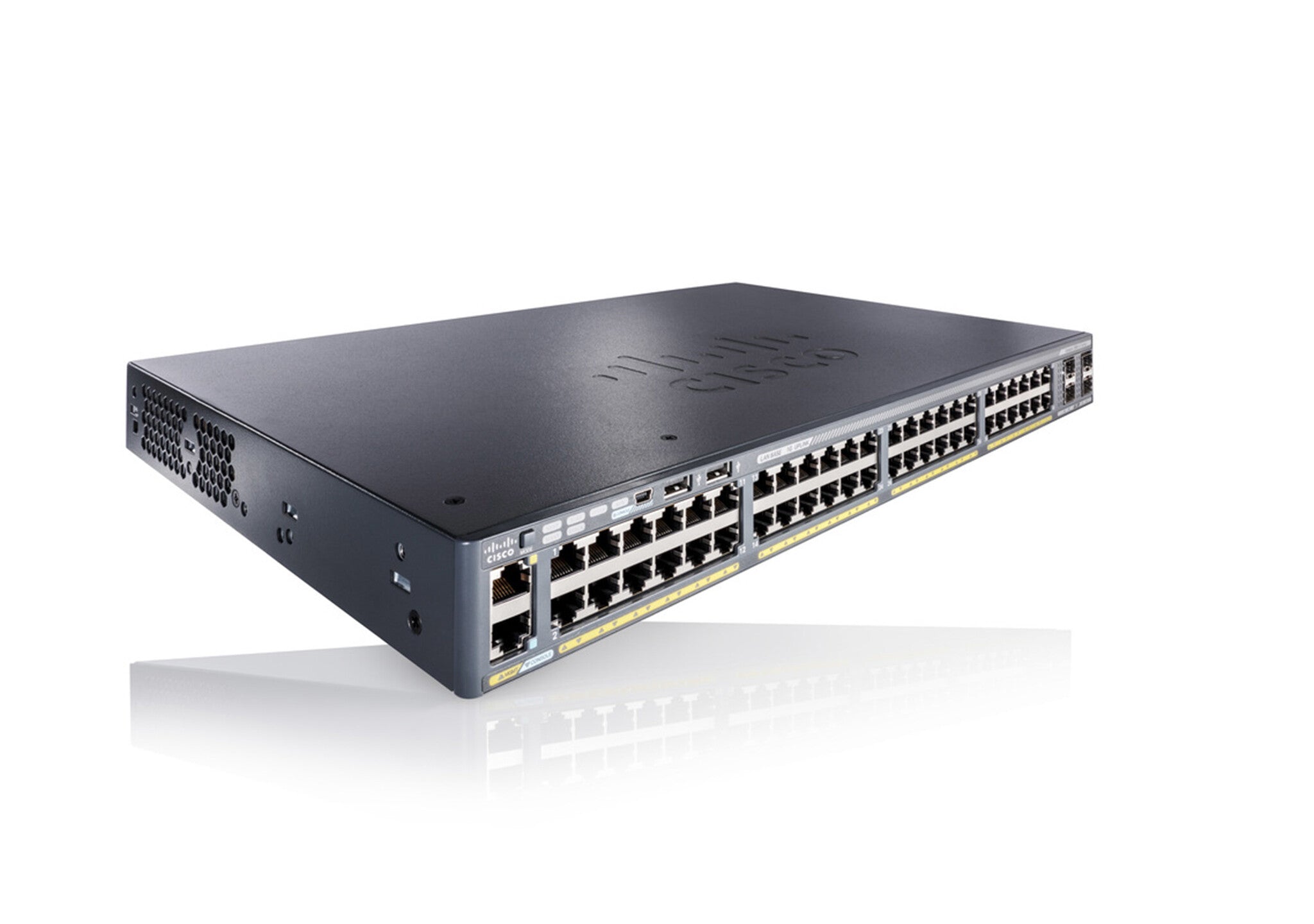

Cisco Catalyst 2960X-48FPD-L Network Switch, 24 Gigabit Ethernet Ports, 740W PoE Budget, two 10 G SFP+ Uplink Ports, Enhanced Limited Lifetime Warranty (WS-C2960X-48FPD-L)
£7,072.99
Couldn't load pickup availability
- ETHERNET PORT CONFIGURATION: 48 10/100/1000 Gigabit Ethernet ports, two 10 G SFP+ uplink ports
- POWER: PoE+ support with a power budget of up to 740W and Perpetual PoE; max of 48 PoE ports (or 24 PoE+ ports)
- DEVICE MANAGEMENT: Web UI, over-the-air access via Bluetooth, CLI (command-line interface), SNMP (Simple Network Management Protocol) and RJ-45 or USB console access
- SECURITY: 802.1X, Switched Port Analyser (SPAN) and Bridge Protocol Data Unit (BPDU) Guard
- PEACE OF MIND: Enhanced limited lifetime warranty
The Cisco Catalyst 2960X-48FPD-L Network Switch is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class access for campus and branch applications. This Ethernet switch operates on Cisco IOS Software and supports simple device and network management. It offers advanced Layer 2 and Layer 3 features as well as optional PoE+ power. The switches deliver enhanced application visibility, network reliability and network resiliency.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Number of VLANs | 1023 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 216 Gbit/s |
| Throughput | 130.9 Mpps |
| Jumbo frames support | Yes |
| Security | |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Refurbished | Yes |
| Market segment | Business |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1 |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor model | AppliedMicro APM8639 |
| Processor frequency | 600 MHz |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Noise level | 39 dB |
| Mean time between failures (MTBF) | 233370 h |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 66 W |
| Power plug type | Type C |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 740 W |
| Other features | |
|---|---|
| Packaging content | WS-C2960X-48FPD-L Switch, Accessory Kit, 1 printed document |
| Power LED | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 40 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4000 m |
| Weight & dimensions | |
|---|---|
| Width | 445 mm |
| Depth | 368 mm |
| Height | 45 mm |
| Weight | 5.8 kg |
| Packaging data | |
|---|---|
| Package width | 469.9 mm |
| Package depth | 549.4 mm |
| Package height | 147.6 mm |
| Package weight | 7.57 kg |
| General | |
|---|---|
| Product family | Catalyst |
| Technical details | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 1 pc(s) |
