Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Cisco Catalyst 1300 Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

Cisco
£467.99
Stock Available: 0
  • Managed L2/L3 Web-based management
  • Quality of Service (QoS) support Configuring Location Settings (CLI)
  • Basic switching RJ-45 Ethernet ports quantity: 48 Console port: RJ-45/USB Type-C
  • Cat5e
  • MAC address table: 16000 entries Switching capacity: 104 Gbit/s
  • 1024 Access Control List (ACL)
  • Rack mounting
  • AC Power over Ethernet (PoE)

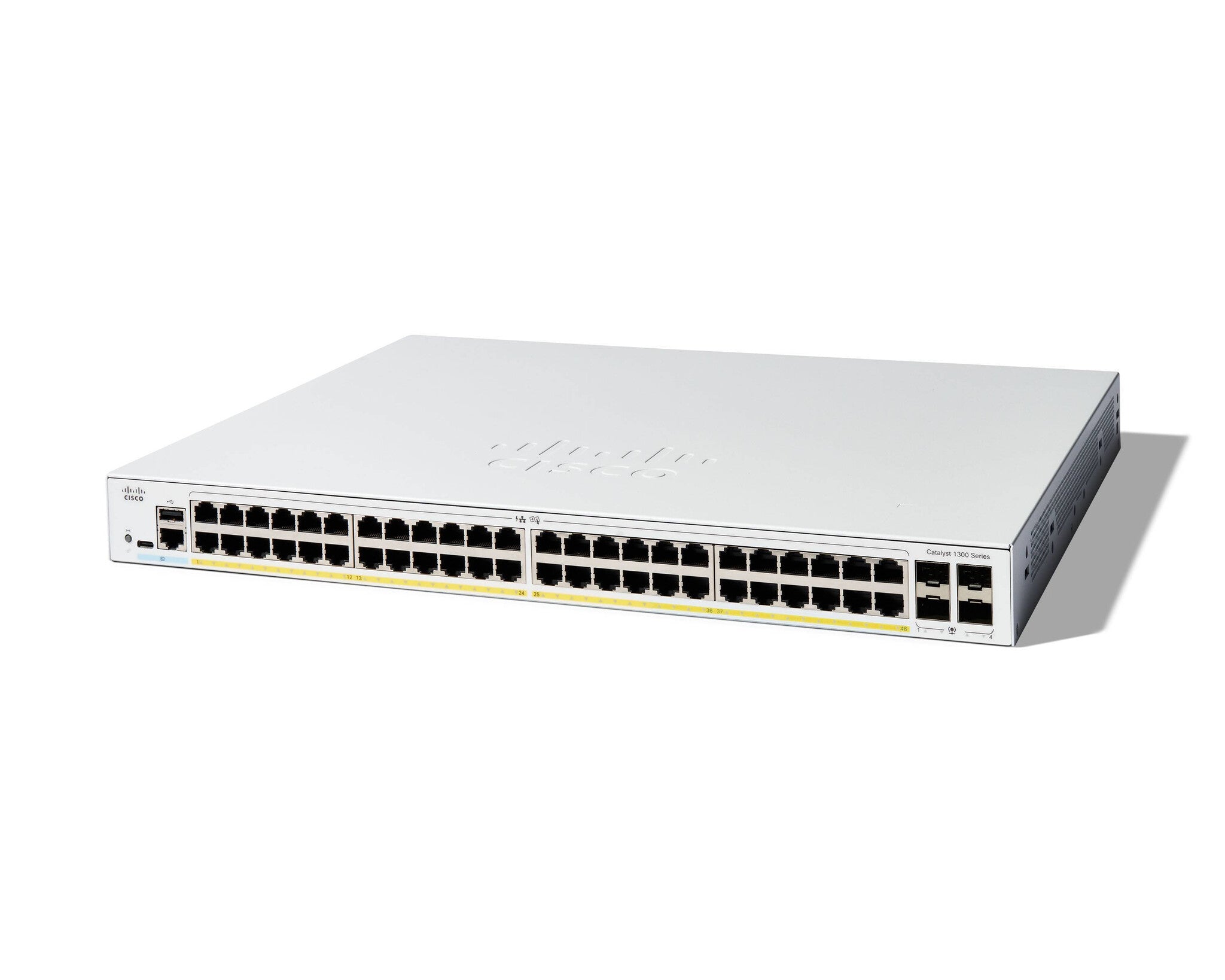

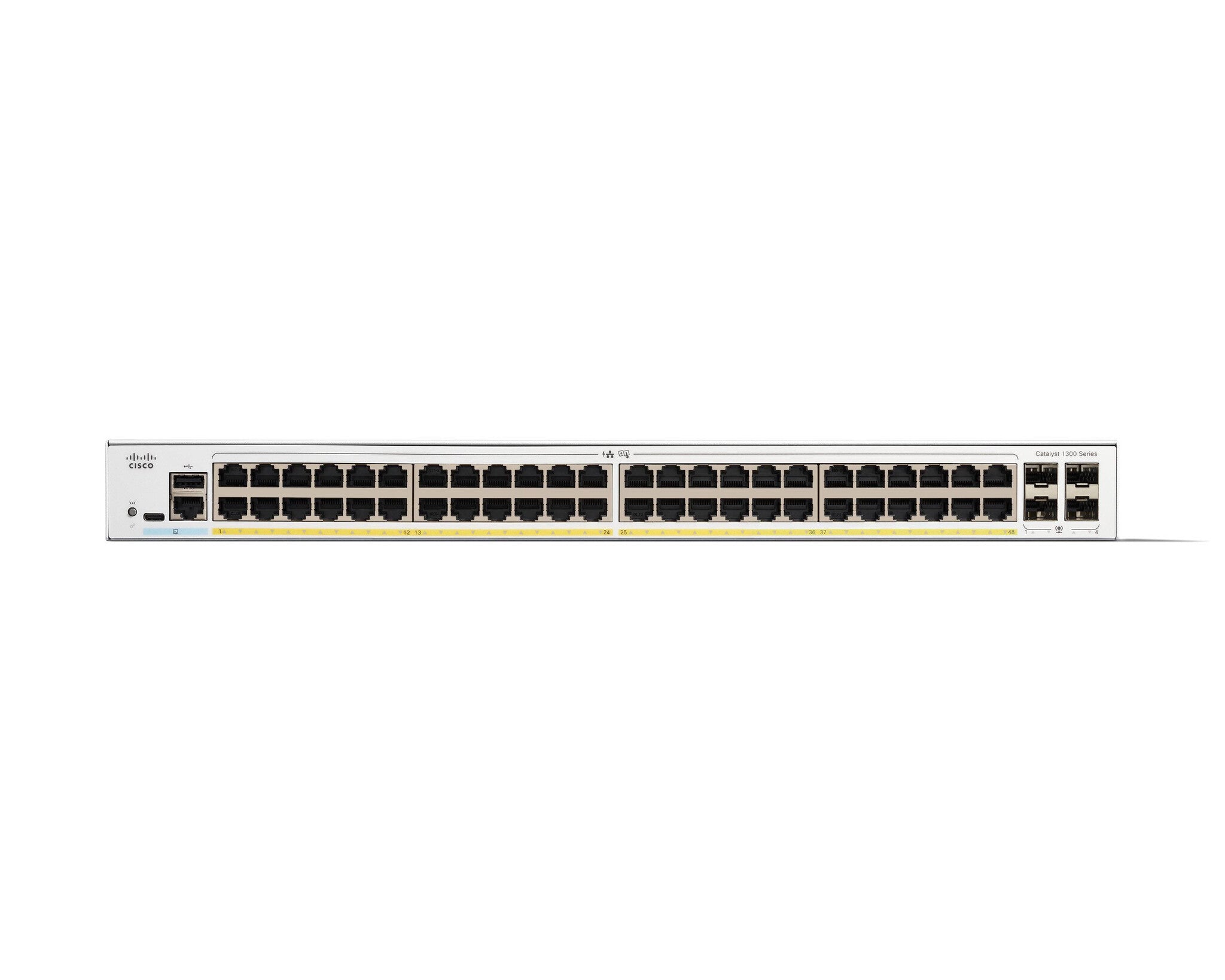

The Cisco Catalyst 1300-48P-4G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.

Management features
MIB support Y
Configuring Location Settings (CLI) Yes
Web-based management Yes
Quality of Service (QoS) support Yes
Switch layer L2/L3
Switch type Managed
Ports & interfaces
Console port RJ-45/USB Type-C
Combo SFP ports quantity 4
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 48
Network
Virtual LAN features Private VLAN, Voice VLAN
VLAN support Yes
Link aggregation Yes
QinQ implementation Selective QinQ
Rate limiting Yes
Broadcast storm control Yes
Spanning tree protocol Yes
Head-of-line (HOL) blocking Yes
Policy-based routing Yes
Port mirroring Yes
Cable types supported Cat5e
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Data transmission
Packet buffer memory 3 MB
Jumbo frames 9000
Jumbo frames support Yes
Number of static routes 990
Static route Yes
Number of queues 8
Switching capacity 104 Gbit/s
MAC address table 16000 entries
Security
Security algorithms HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2
Authentication MAC-based authentication, Web-based authentication
Authentication type RADIUS, TACACS+
Queue scheduling algorithms Weighted Round Robin (WRR)
SSH/SSL support Yes
DoS attack prevention Yes
IGMP snooping Yes
IGMP proxy Yes
Access Control List (ACL) rules 1024
Access Control List (ACL) Yes
DHCP features DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping
Multicast features
Multicast support Yes
Protocols
IPv4 & IPv6 features ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet
GARP VLAN Registration Protocol (GVRP) Yes
Design
Reset button Yes
Product colour Grey
Rack mounting Yes
Performance
Mean time between failures (MTBF) 856329 h
Plug and Play Yes
Noise level 37.3 dB
Flash memory 512 MB
Internal memory 1000 MB
Memory type DDR4-SDRAM
Processor frequency 1.4 MHz
Built-in processor Yes
Power
Power plug type Type C
Power consumption (typical) 43.93 W
AC input frequency 50/60 Hz
AC input voltage 100 - 220 V
Power source AC
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 375 W
Power over Ethernet (PoE) ports quantity 48
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 1542.3 BTU/h
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) -5 - 50 °C
Weight & dimensions
Weight 5.43 kg
Height 43.9 mm
Depth 444.5 mm
Width 350 mm
Packaging data
Package weight 7.01 kg
Package height 95 mm
Package depth 571.8 mm
Package width 480.8 mm
General
Product family Catalyst
Certificates
Certification UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Logistics data
Country of origin China
