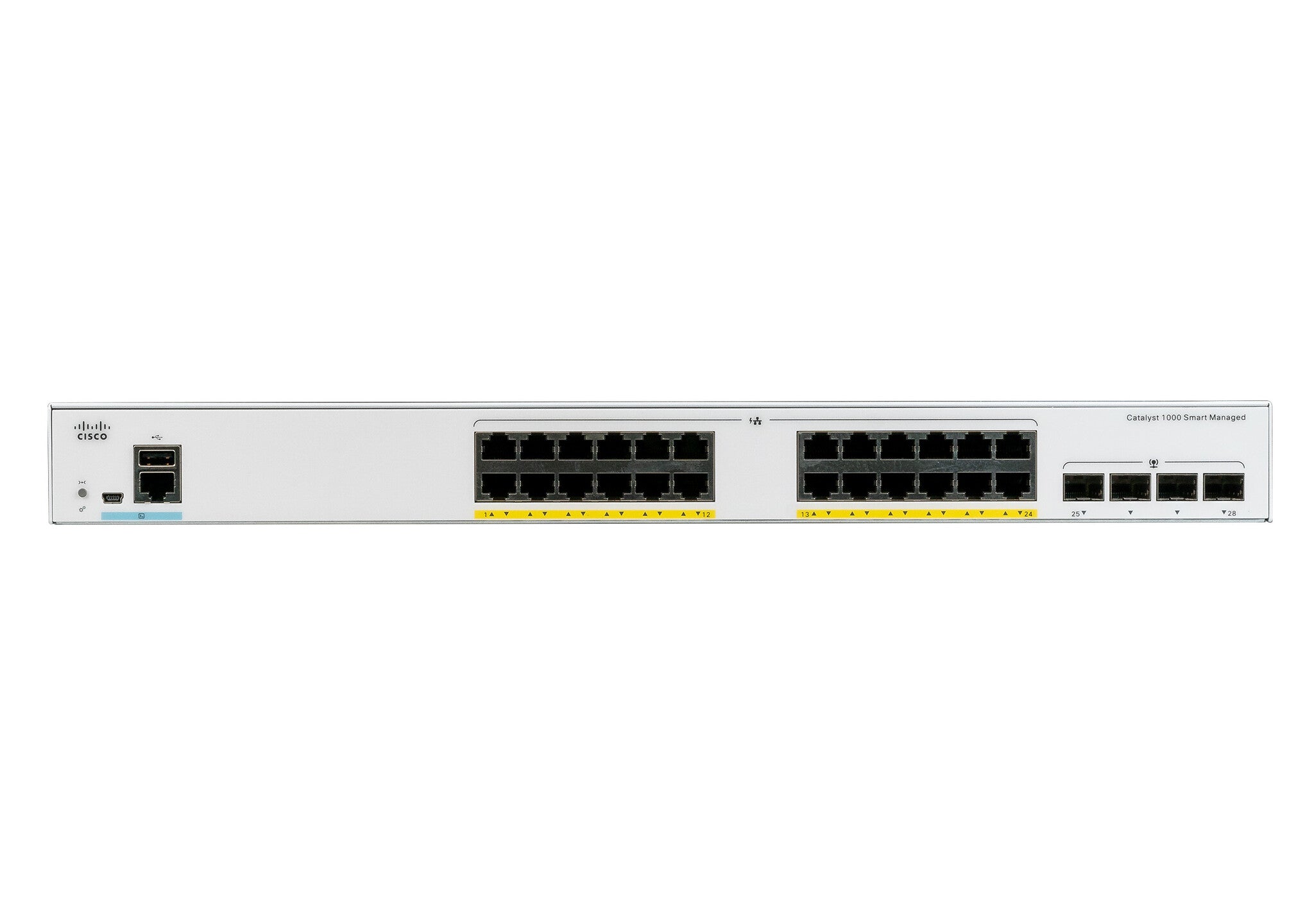

Cisco Catalyst 1000-24P-4X-L Network Switch, 24 Gigabit Ethernet (GbE) PoE+ Ports, 195W PoE Budget, four 10 G SFP+ Uplink Ports, Fanless Operation, Enhanced Limited Lifetime Warranty (C1000-24P-4X-L)
£2,154.99
Couldn't load pickup availability
- HARDWARE CONFIGURATION: 24 10/100/1000 Gigabit Ethernet (GbE) PoE+ ports, 4 SFP+ uplink ports with Power budget of 195W and Perpetual PoE+ support for uninterrupted power to PoE devices even in case of switch reboot
- MANAGEMENT: Manage the switch via the Cisco IOS CLI (command-line interface) and/or intuitive web UI. Centrally monitor and configure up to 8 switches via a Single IP or with any third party network management tool
- SECURITY: Enterprise Class Security which natively supports IPv4/IPv6 FHS Security features such as port security, DHCP snooping, dynamic ARP inspection which can easily be configured using a Single 'Auto-Secure' command along with 802.1x support for all connected devices
- Enterprise Class Hardware: Tamper-proof switch designed with the best of Cisco's trustworthy solutions technologies like HW anchored secure boot and Trust anchor Module to ensure you get an authentic and secure product
- PEACE OF MIND: Enhanced limited lifetime warranty
The Cisco Catalyst 1000-24P-4X-L Network Switch is an enterprise-class fixed managed Gigabit Ethernet Layer 2 switch designed for small businesses and branch offices. This simple, flexible and secure network switch is ideal for critical IoT (Internet of Things) deployments. It operates on Cisco IOS Software and features a CLI (command-line interface) as well as an intuitive web user interface.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| Configuring Location Settings (CLI) | Yes |
| ARP inspection | Yes |
| MIB support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| 10G support | Yes |
| Full duplex | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| Ethernet LAN data rates | 100,1000,10000 Mbit/s |
| Auto MDI/MDI-X | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 41.67 Mpps |
| Static route | Yes |
| Number of static routes | 16 |
| Jumbo frames support | Yes |
| Jumbo frames | 10240 |
| Security | |
|---|---|
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP entries | 1024 |
| IGMP snooping | Yes |
| BPDU filtering/protection | Yes |
| Authentication type | RADIUS |
| Authentication | Web-based authentication |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| IPv4 multicast entries | 1024 |
| IPv6 multicast entries | 1024 |
| Design | |
|---|---|
| Product colour | Grey |
| Market segment | Business |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM7 |
| Processor frequency | 800 MHz |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Mean time between failures (MTBF) | 698220 h |
| Power | |
|---|---|
| AC input voltage | 110 - 220 V |
| AC input frequency | 50 - 60 Hz |
| Power plug type | Type C |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 195 W |
| Other features | |
|---|---|
| Packaging content | C1000-24P-4X-L Switch, Accessory Kit, 1 printed document |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
| Weight & dimensions | |
|---|---|
| Width | 444.5 mm |
| Depth | 299 mm |
| Height | 44 mm |
| Weight | 3.68 kg |
| Packaging data | |
|---|---|
| Package width | 390.7 mm |
| Package depth | 549.4 mm |
| Package height | 147.6 mm |
| Package weight | 5.7 kg |
| General | |
|---|---|
| Product family | Catalyst |
| Certificates | |
|---|---|
| Certification | UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1 47CFR Part 15 (CFR 47) Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A, EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A EN55024 (including EN 61000-4-5), CISPR24, EN300386, KN24 Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU Common Language Equipment Identifier (CLEI) code |
| Technical details | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 1 pc(s) |
