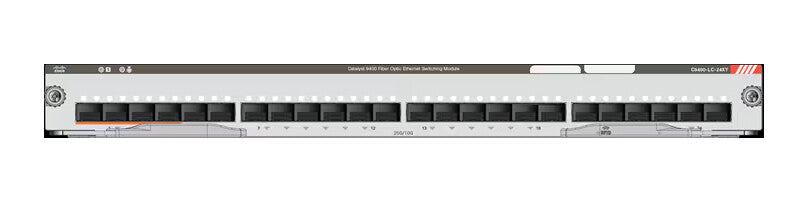

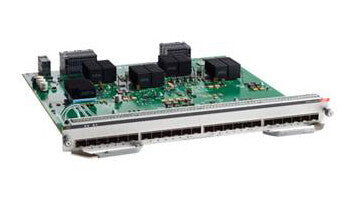

Cisco C9400-LC-24XY= network switch module Gigabit Ethernet
Cisco C9400-LC-24XY= network switch module Gigabit Ethernet
Cisco C9400-LC-24XY= network switch module Gigabit Ethernet
Cisco C9400-LC-24XY= network switch module Gigabit Ethernet

Cisco C9400-LC-24XY= network switch module Gigabit Ethernet

Cisco
£23,229.99
Stock Available: 0
  • Supports up to 12 ports of 40GE QSFP+ or 4 Ports 100GE QSFP28 and 4 Ports 40GE QSFP+
  • QSFP28 and QSFP+ can be used simultaneously on the same line card
  • Requires C9400X-SUP-2/2XL
  • Supported on Cisco IOS XE Software Release 17.12.1 or later
  • IEEE 802.1AE (MACsec-256) capability in hardware
  • Layer 2 to Layer 4 Jumbo Frame support (up to 9216 bytes)
  • Designed for enterprise backbone and collapsed access deployments

Cisco Catalyst 9400 Series 4 port 100 G QSFP28)+4 port 40G (QSFP+) or 12-port 40 Gigabit Ethernet (QSFP+) Line Card (C9400-LC-24XY=)

The Cisco Catalyst 9400 Series 12-port 40 Gigabit Ethernet, or 4-port 100 Gigabit Ethernet plus 4-port 40 Gigabit Ethernet line card can be deployed for high-performance and high-density 100G or 40 Gigabit Ethernet aggregations in the campus and in small to medium-sized networks as a core switch. The Cisco Catalyst 9400 Series 12-port 40G Gigabit Ethernet line card supports standard Quad Small Form-Factor Pluggable 28 and Plus (QSFP28 and QSFP+) optics. The ports can be used full 40 Gigabit Ethernet or 100 and 40 Gigabit Ethernet to support phased migration from 40 Gigabit Ethernet to 100 Gigabit Ethernet.

Network
Ethernet interface type Gigabit Ethernet
Ethernet LAN data rates 1000 Mbit/s
Networking standards IEEE 1588, IEEE 802.1as, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z
Jumbo frames support Yes
Link aggregation Yes
Optical fiber
Fiber optic connector SFP+
Ports & interfaces
SFP module slots quantity 20
SFP+ module slots quantity 4
Performance
Quality of Service (QoS) support Yes
Operational conditions
Operating relative humidity (H-H) 10 - 95%
Operating altitude -60 - 3000 m
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -5 - 45 °C
Certificates
Electromagnetic compatibility 47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317
Safety UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3
Certification RoHS5
Weight & dimensions
Width 379 mm
Depth 370 mm
Height 40.6 mm
