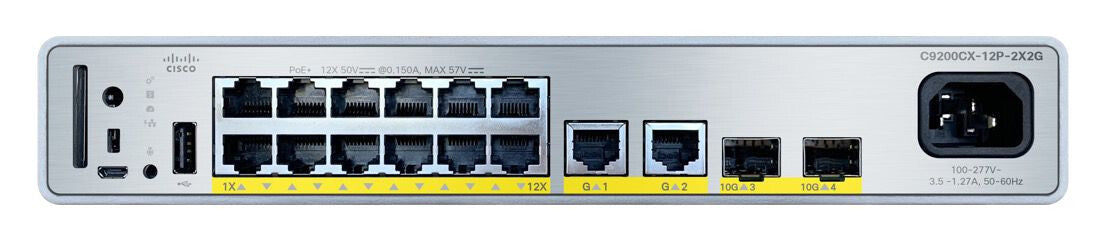

Cisco C9200CX-12P-2X2G-A Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £595.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 14
- 10G support
- MAC address table: 32000 entries Switching capacity: 34 Gbit/s
- Access Control List (ACL)
- Rack mounting Stackable
- AC Power supply included Power over Ethernet (PoE)
Extend intent-based networking everywhere
Cisco® Catalyst® 9200 Series switches extend the power of intent-based networking and Catalyst 9000 hardware and software innovation to a broader set of deployments. With its family pedigree, Catalyst 9200 Series switches offer simplicity without compromise – it is secure, always on, and IT simplified.
As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9200 Series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.
Catalyst 9200 Series switches provide security features that protect the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE® and programmability of the UADP ASIC technology, Catalyst 9200 Series switches give you what you need now with investment protection on future innovations.
With full PoE+ capability, power and fan redundancy, stacking bandwidth up to 160 Gbps, modular uplinks, Layer 3 feature support, and cold patching, Catalyst 9200 Series switches are the industry’s unparalleled solution with differentiated resiliency and progressive architecture for cost-effective branch-office access. Catalyst 9200 Series switches also provide operational choice of Cisco DNA Center, or cloud monitoring for Catalyst.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Quality of Service (QoS) support | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 14 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Compatible memory cards | SD |
Show all 27 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | Yes |
Data transmission
| MAC address table | 32000 entries |
|---|---|
| Switching capacity | 34 Gbit/s |
Security
| Access Control List (ACL) | Yes |
|---|---|
| IGMP entries | 1000 |
| IGMP snooping | Yes |
| Security algorithms | 256-bit AES |
Multicast features
| Multicast support | Yes |
|---|---|
| Multicast MAC address table | 1000 entries |
Design
| Rack mounting | Yes |
|---|---|
| Stackable | Yes |
Performance
| Mean time between failures (MTBF) | 553140 h |
|---|
Power
| Power source | AC |
|---|---|
| Power supply included | Yes |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
Weight & dimensions
| Width | 269 mm |
|---|---|
| Depth | 244 mm |
| Height | 44 mm |
| Weight | 2.99 kg |
