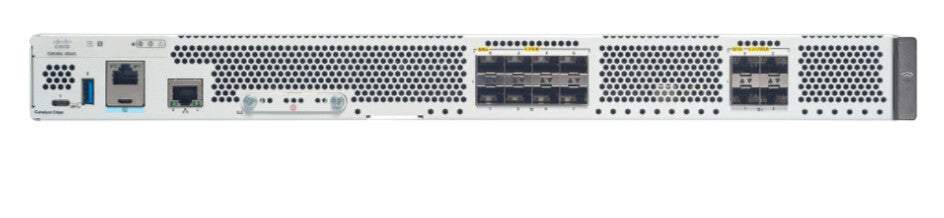

Cisco C8500-12X Managed L2/L3 1U Grey
Cisco C8500-12X Managed L2/L3 1U Grey

Cisco C8500-12X Managed L2/L3 1U Grey

Cisco · MPN: C8500-12X-RF
£43,243.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £14,414.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview
  • Managed L2/L3 Web-based management
  • Quality of Service (QoS) support
  • Console port: RJ-45
  • 10G support
  • 4000 Access Control List (ACL)
  • 1U Rack mounting

The Cisco Catalyst 8500 Series Edge Platforms are high-performance cloud edge platforms designed for accelerated services, multi-layer security, cloud-native agility, and edge intelligence to accelerate your journey to cloud.

Foundation for Software-Defined WAN
Cisco® Catalyst® 8500 Series Edge Platforms (Catalyst 8500 and Catalyst 8500L) with Cisco IOS® XE SD-WAN Software deliver Cisco’s secure, cloud-scale SD-WAN solution for aggregation sites. The Catalyst 8500 Edge Platforms feature the all-new third-generation Cisco Quantum Flow Processor (QFP), the Catalyst 8500 Series Edge Platforms are built for services from the ground up. The Catalyst 8500L Edge Platform features an x86 based platform architecture that is purpose built to continue delivering the same experience as an ASR1000 platform. The Catalyst 8500 Series Edge Platforms are compact 1RU devices with flexible interface options, including 1GE, 10GE, 40GE, and 100GE ports. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud.

Specifications

Management features

Switch typeManaged
Switch layerL2/L3
Quality of Service (QoS) supportYes
Web-based managementYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports typeNo
SFP+ module slots quantity12
Console portRJ-45
Show all 33 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.1Q, IEEE 802.1ag, IEEE 802.3ah
10G supportYes
Port mirroringYes
IP routingYes

Data transmission

Throughput51000 Mpps

Security

DHCP featuresDHCP client, DHCP relay, DHCP server
Access Control List (ACL)Yes
Access Control List (ACL) rules4000
Access Control List (ACL) IPv4 entries380000
Security algorithms128-bit AES, 256-bit AES, IPSec, MD5, RSA, SHA-256, SHA-384, SHA-512

Multicast features

Multicast supportYes

Design

Rack mountingYes
Form factor1U
Product colourGrey
LED indicatorsYes

Power

AC input voltage85 - 264 V
DC input voltage40 - 72 V

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 85%
Storage relative humidity (H-H)5 - 95%
Operating altitude152 - 3048 m

Weight & dimensions

Width444.5 mm
Depth468.9 mm
Height43.9 mm
