Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)
Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)
Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)
Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)

Cisco Aironet Dual-Band Omnidirectional Wi-Fi Antenna, 4 dBi (2.4 GHz)/7 dBi (5 GHz), N-Type Male Connector, Direct Mount, 1-Year Limited Hardware Warranty (AIR-ANT2547V-N=)

Cisco
£255.99
Stock Available: 0
  • OMNIDIRECTIONAL WI-FI ANTENNA: 4 dBi (2.4 GHz)/7 dBi (5 GHz); suitable for use on Aironet outdoor access points
  • CONNECTION AND MOUNT: N-type male connector; direct mount on access point; no cable attachments
  • 360-DEGREE RADIATION PATTERN: Intended for deployment when coverage in all directions from the antenna is required
  • PERFORMANCE: Designed for improved coverage
  • PEACE OF MIND: 1-year limited hardware warranty

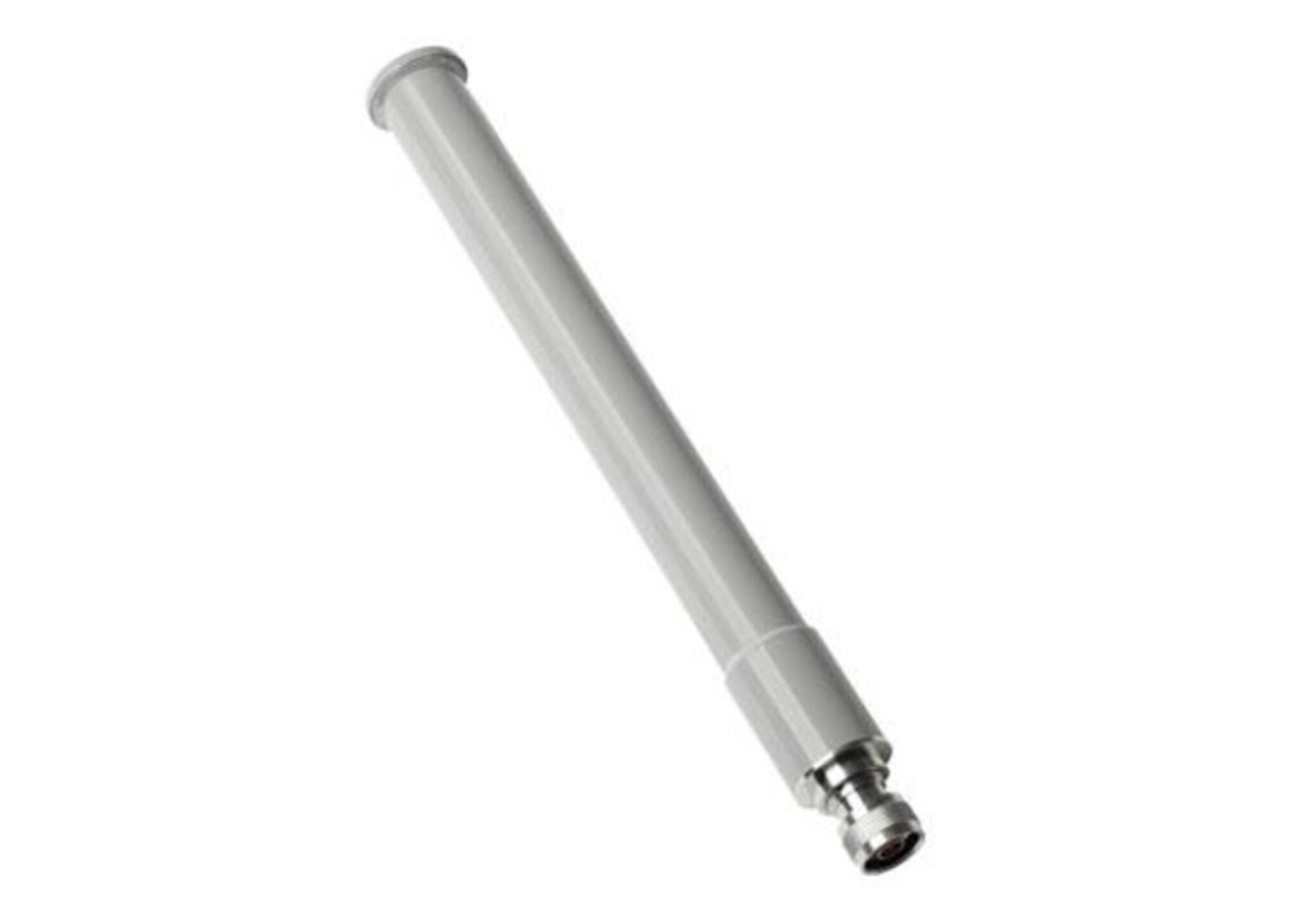

The Cisco Aironet AIR-ANT2547V-N= Dual-Band Omnidirectional Wi-Fi Antenna is designed with improved coverage and performance in mind. This FCC-approved omnidirectional antenna provides a 360-degree radiation pattern and is intended for deployment when coverage in all directions from the antenna is required.

Performance
Horizontal beam width (5 GHz) 14°
Horizontal beam width (2.4 GHz) 30°
Impedance 50 Ω
Antenna gain (2.4 GHz) 4 dBi
Antenna gain (5 GHz) 7 dBi
Frequency band 2.4/5 GHz
Antenna gain level (max) 7 dBi
Features
Purpose Outdoor
Product colour Silver
Voltage Standing Wave Ratio (VSWR) 2:1
Antenna connector type N-type
Connector gender Male
Antenna type Omni-directional antenna
Operational conditions
Operating temperature (T-T) -40 - 85 °C
Weight & dimensions
Weight 170 g
Diameter 3.17 mm
Height 282 mm
Depth 3.17 mm
Width 3.17 mm
Packaging data
Package weight 317.46 g
Package height 50.8 mm
Package depth 482.6 mm
Package width 152.4 mm
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Country of origin China
Harmonized System (HS) code 85177100
Other features
Frequency range 2.4 - 2.483GHz, 5.15 - 5.875GHz
Dimensions (WxDxH) 3.17 x 3.17 x 282 mm
