Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 8 dBi (2.4 GHz)/8 dBi (5 GHz), 3 Ports, 3 N-Type Female Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2588P3M-N=)
£807.99
Couldn't load pickup availability
- PATCH ANTENNA: 8 dBi (2.4 GHz)/8 dBi (5 GHz); 3 ports; can be used with outdoor access points
- CONNECTION AND MOUNT: 3 N-type connectors; no cable attachments; wall or mast mount
- DIRECTED RADIATION PATTERN: Intended for deployment when directed coverage is required
- PERFORMANCE: Designed for improved directional coverage
- PEACE OF MIND: 1-year limited hardware warranty

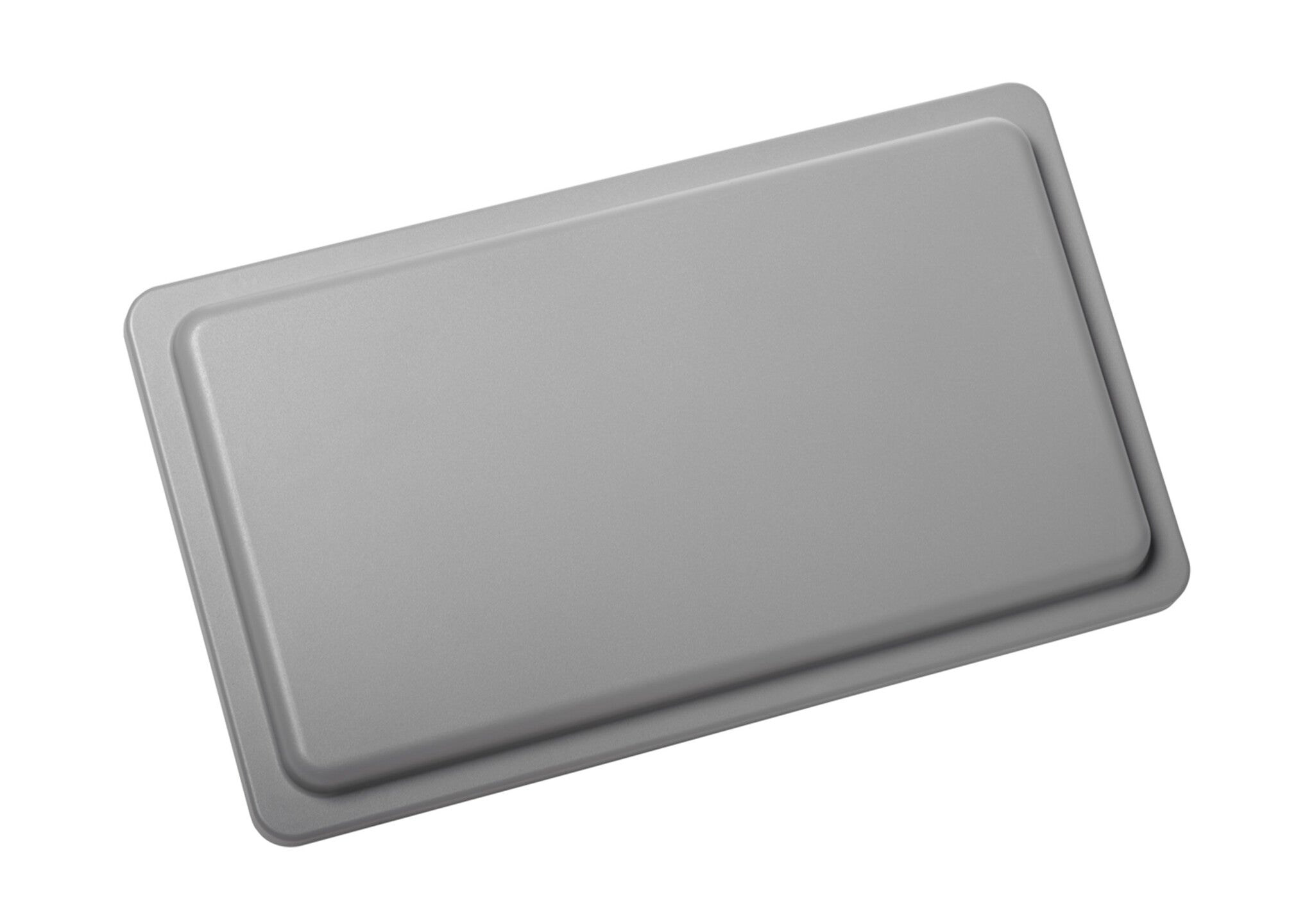

The Cisco Aironet AIR-ANT2588P3M-N= Dual-Band Directional Wi-Fi Patch Antenna is designed with improved coverage and performance in mind. This FCC-approved patch antenna directs the energy it receives from the transmitter to provide more energy in one direction and less energy in all other directions.
| Performance | |
|---|---|
| Frequency band | 2.4 - 2.5 / 5.15 - 5.9 GHz |
| Antenna gain level (max) | 8 dBi |
| Features | |
|---|---|
| Mounting | Wall |
| Product colour | Grey |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Polarization | Dual polarization |
| Antenna connector type | N-type |
| Connector gender | Female |
| Antenna type | Directional antenna |
| Weight & dimensions | |
|---|---|
| Height | 178 mm |
| Depth | 28 mm |
| Width | 305 mm |
| Packaging data | |
|---|---|
| Package weight | 1.27 kg |
| Package height | 137.9 mm |
| Package depth | 335 mm |
| Package width | 243.1 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Country of origin | China |
| Harmonized System (HS) code | 85177100 |
