Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 Ports), Wall Mount, 4 RP-TNC Male Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566D4M-RS=)
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 Ports), Wall Mount, 4 RP-TNC Male Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566D4M-RS=)
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 Ports), Wall Mount, 4 RP-TNC Male Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566D4M-RS=)
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 Ports), Wall Mount, 4 RP-TNC Male Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566D4M-RS=)
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 Ports), Wall Mount, 4 RP-TNC Male Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566D4M-RS=)
Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 Ports), Wall Mount, 4 RP-TNC Male Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566D4M-RS=)

Cisco Aironet Dual-Band Directional Wi-Fi Patch Antenna, 6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 Ports), Wall Mount, 4 RP-TNC Male Connectors, 1-Year Limited Hardware Warranty (AIR-ANT2566D4M-RS=)

Cisco
£766.99
Stock Available: 0
  • PATCH ANTENNA: 6 dBi (2.4 GHz)/6 dBi (5 GHz), MIMO (4 dual-band ports); designed for use with dual-band port access points such as the Aironet 1830, 1850, 2800 and 3800 Series and Cisco Catalyst 9115AX, 9120AX and 9130AX Series

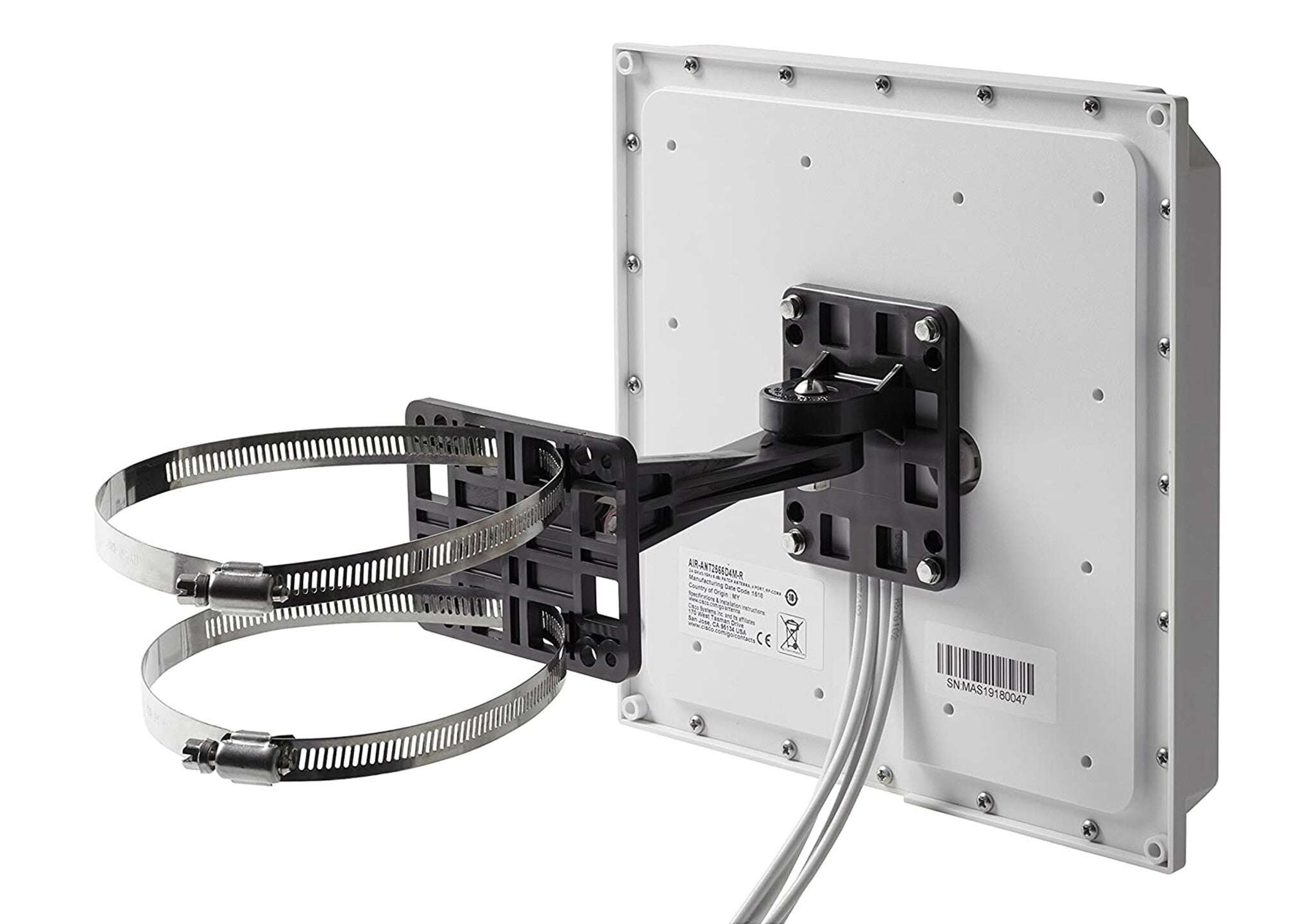

  • CONNECTION AND MOUNT: 4 RP-TNC male connectors; wall mount
  • DIRECTED RADIATION PATTERN: Intended for deployment when directed coverage is required
  • PERFORMANCE: Designed for improved directional coverage
  • PEACE OF MIND: 1-year limited hardware warranty

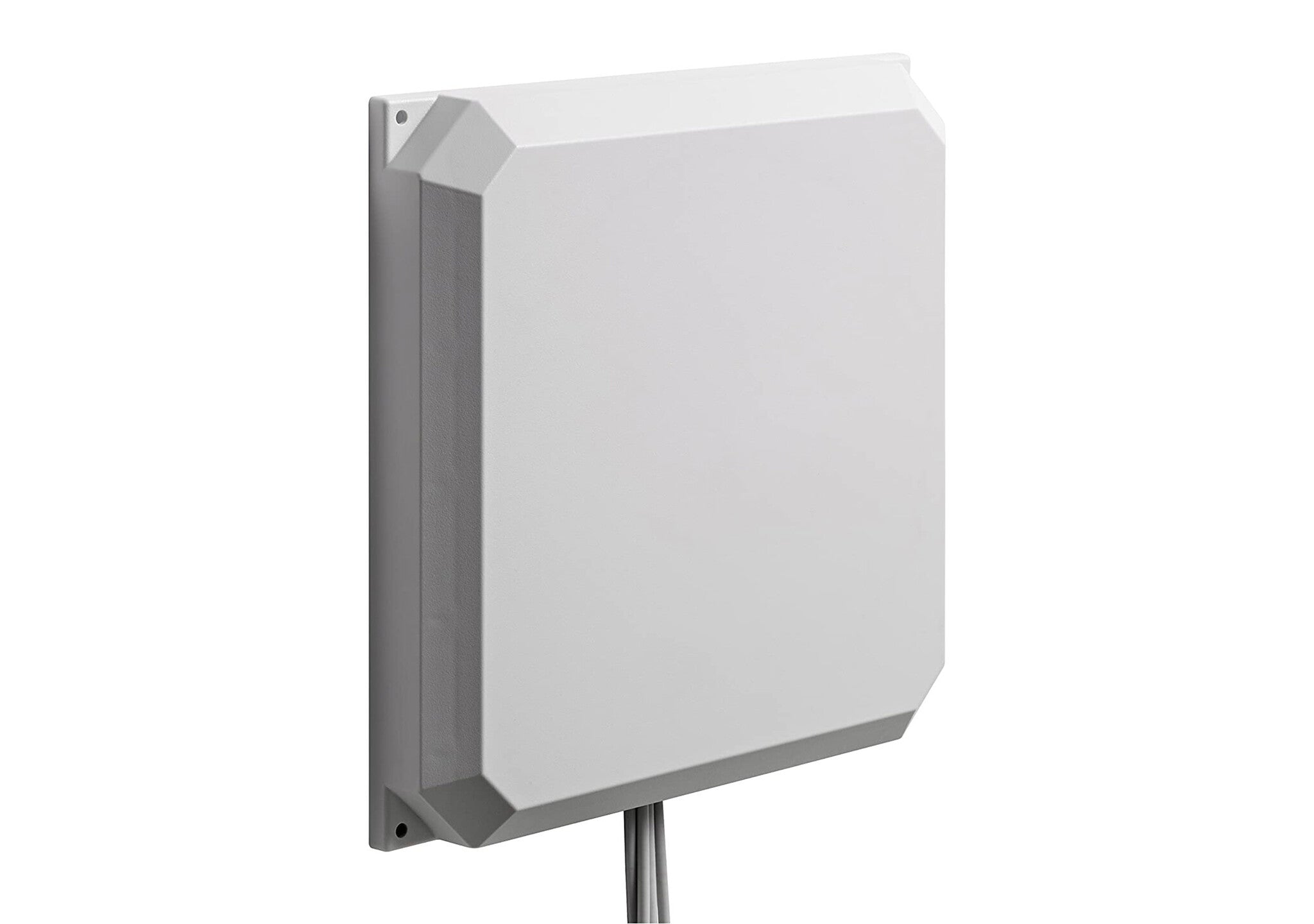

The Cisco Aironet AIR-ANT2566D4M-RS= Dual-Band Directional Wi-Fi Patch Antenna is designed with improved performance in mind. It directs the energy it receives from the transmitter to provide more energy in one direction and less in other directions. This FCC-approved patch antenna includes circuitry to enable self-identification of the antenna by the Cisco Catalyst 9100 Access Points.

Performance
Impedance 50 Ω
Antenna gain (2.4 GHz) 6 dBi
Antenna gain (5 GHz) 6 dBi
Gain 6 dBi
Frequency band 2.4/5 GHz
Antenna gain level (max) 6 dBi
Features
International Protection (IP) code IP67
Antenna connector type RP-TNC
Antenna type Directional antenna
Operational conditions
Storage temperature (T-T) -40 - 85 °C
Operating temperature (T-T) -40 - 70 °C
Weight & dimensions
Weight 1.13 kg
Height 41 mm
Depth 254 mm
Width 254 mm
Packaging data
Package weight 1.25 kg
Package height 215.9 mm
Package depth 260.1 mm
Package width 260.1 mm
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Country of origin Malaysia
