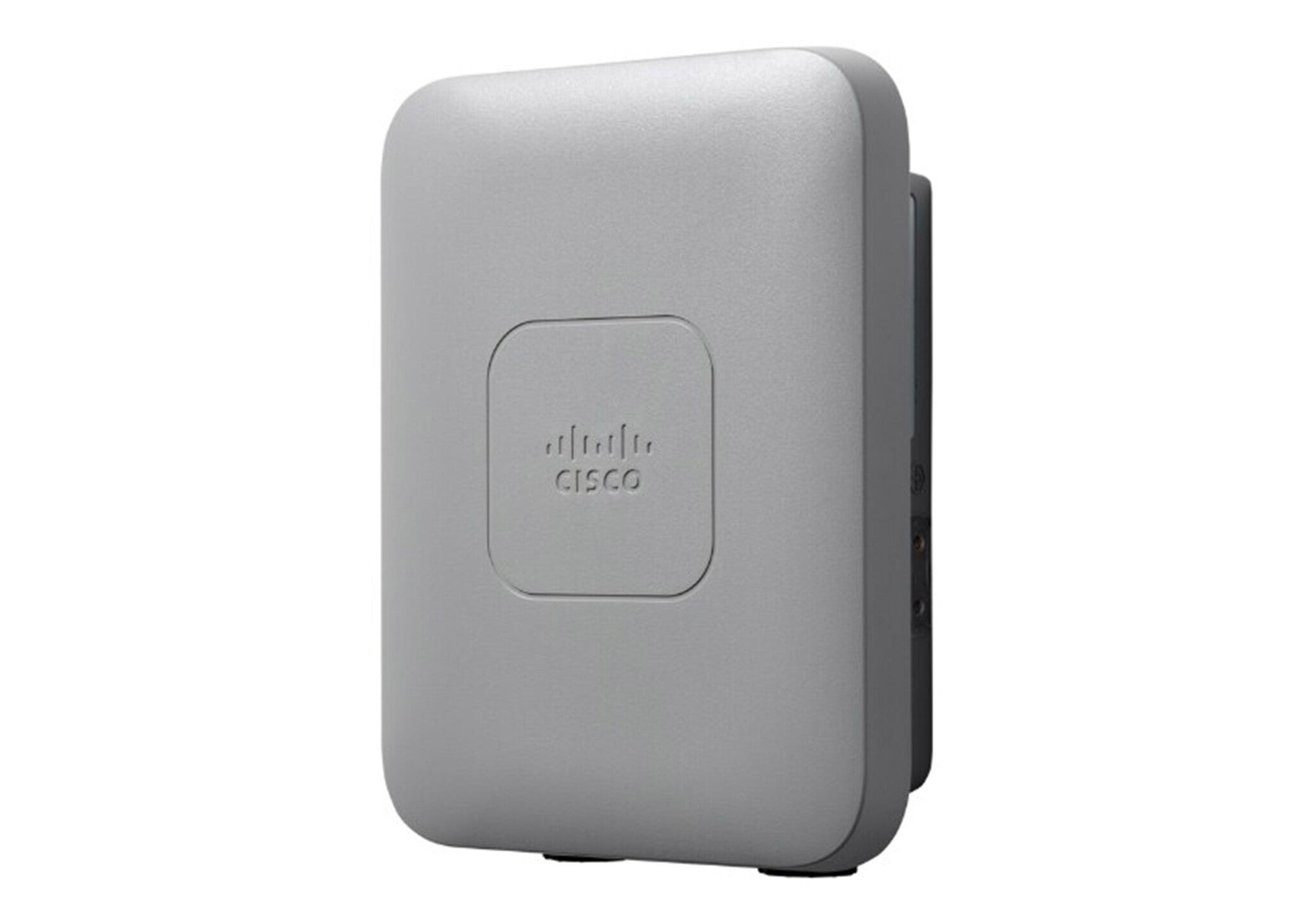

Cisco Aironet 1542I-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2, with Internal Antenna, Wall or Ceiling

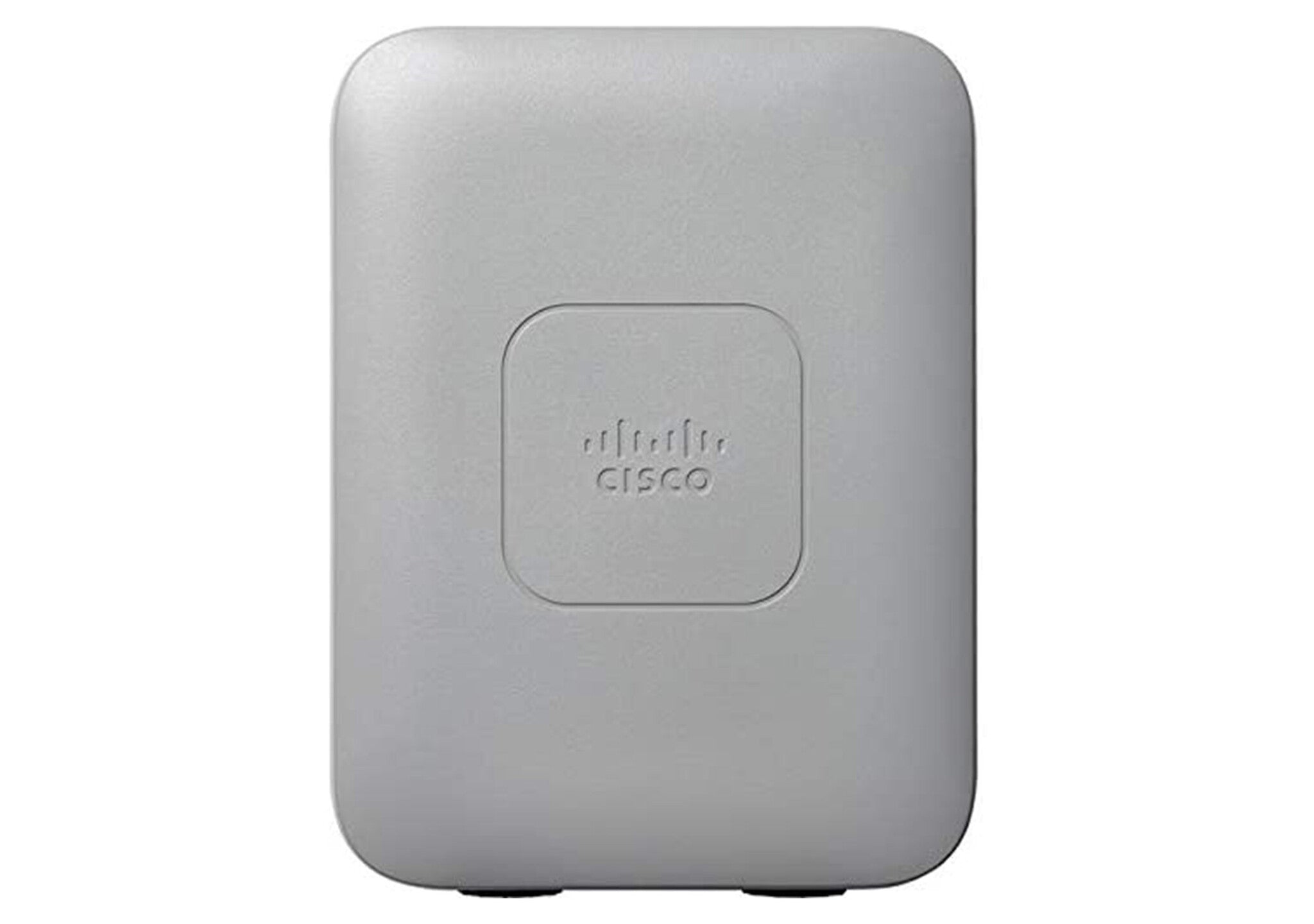

Cisco Aironet 1542I-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2, with Internal Antenna, Wall or Ceiling - image 2
Cisco Aironet 1542I-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2, with Internal Antenna, Wall or Ceiling - image 3
Cisco Aironet 1542I-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2, with Internal Antenna, Wall or Ceiling
Cisco Aironet 1542I-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2, with Internal Antenna, Wall or Ceiling - image 2
Cisco Aironet 1542I-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2, with Internal Antenna, Wall or Ceiling - image 3

Cisco Aironet 1542I-E-K9 Wi-Fi Outdoor Access Point, 802.11ac Wave 2, with Internal Antenna, Wall or Ceiling Mountable (AIR-AP1542I-E-K9)

Cisco
£883.99
Stock Available: 0
  • MU-MIMO: 802.11ac Wave 2 with 2x2 Multiple Input Multiple-Output (MIMO) technology with up to two spatial streams, offering 1.1 GBps rates for high capacity and reliability
  • LOW POWER CONSUMPTION: Achieves full operation on standard 802.3af power (13.9W)
  • COMPACT AND LIGHTWEIGHT: At 1 kg and with a small footprint, the 1540 series is one of the smallest outdoor access points with internal antennas
  • PEACE OF MIND: 1-year limited hardware warranty

The Cisco Aironet 1540 Series Access Point, with IEEE’s 802.11ac Wave 2 support, offers a data rate of up to 867 Mbps on a 5-GHz radio, enabling a total aggregated dual-radio data rate of up to 1.1 Gbps. Ideal for rugged outdoor environments, the Aironet 1815 Series delivers industry-leading performance for highly secure and reliable wireless connections and provides a superior mobility end-user experience.

Features
2.4 GHz Yes
5 GHz Yes
Maximum data transfer rate 867 Mbit/s
Ethernet LAN data rates 10,100,1000 Mbit/s
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x
MIMO Yes
MIMO type Multi User MIMO
Maximal-Ratio Combining (MRC) Yes
Cyclic Shift Diversity (CSD) Yes
Dynamic Frequency Selection (DFS) Yes
Transmitting power 27 dBmW
Security
Security algorithms EAP, EAP-PEAP, EAP-SIM, EAP-TLS, EAP-TTLS, IPSec, WPA, WPA2
MAC address filtering Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
WAN connection Ethernet (RJ-45)
Power
Power consumption (typical) 13 W
Power plug type Type C
Design
Product colour White
International Protection (IP) code IP67
Reset button Yes
LED indicators Yes
Antenna
Antenna features Integrated antenna
Antennas quantity 2
Antenna gain level (max) 5 dBi
Technical details
Products per shipping (inner) case 1 pc(s)
Certificates
Certification IEC 60529 IP67, NEMA 250-2008, NEMA 250-2008, EN 60068-2-5, MIL-STD-810, UL60950, CAN/CSA-C22.2 # 60950, IEC 60950, EN 60950, EN61000-4-5 4, EN61000-4-4 4, EN61000-4-3 4, EN61000-4-2 2, EN60950 IV; FCC 15.247, 15.407; FCC OET-65C, RSS-210, RSS-102, AS/NZS 4268.2003, ARIB-STD 66, ARIB-STD T71, EN 300 328, EN 301 893; FCC 15.107, 15.109; ICES-003; EN 301 489-1, -17
Weight & dimensions
Width 150 mm
Depth 200 mm
Height 61 mm
Weight 1.25 kg
Packaging data
Package width 133.3 mm
Package depth 260.4 mm
Package height 228.6 mm
Package weight 1.38 kg
Packaging content
Quantity per pack 1 pc(s)
Operational conditions
Operating temperature (T-T) -40 - 65 °C
Storage temperature (T-T) -40 - 85 °C
Logistics data
Harmonized System (HS) code 85176990
Country of origin Mexico
Products per master (outer) case 1 pc(s)
