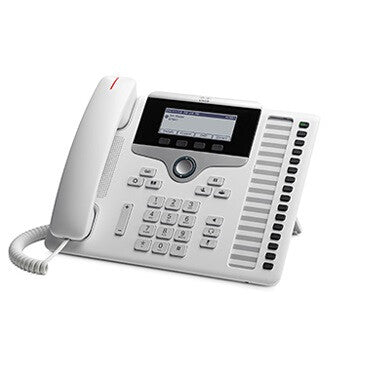

Cisco 7861 IP phone White 16 lines
Cisco 7861 IP phone White 16 lines

Cisco 7861 IP phone White 16 lines

Cisco · MPN: CP-7861-W-K9=
£433.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £144.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Display resolution396 x 162 pixels
  • Weight1.05 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • The phone offers an easy-to-use interface and provides a traditional telephony-like user experience
  • The handset is a standard wideband-capable audio handset (connects through an RJ-9 port) for the IP Phone 7821, 7841 and 7861
  • The analog headset jack is a standard wideband-capable RJ-9 audio port for the IP Phone 7821, 7841, and 7861
  • The phone supports backlit indicators for the audio path keys (handset, headset and speakerphone), select key, line keys, and message waiting
  • A volume-control toggle provides easy decibel-level adjustments of the handset, monitor speaker, and ringer
  • Full-duplex speakerphone allows gives you flexibility in placing and receiving calls. For added security, the audible dual tone multifrequency (DTMF) tones are masked when the speakerphone mode is used
  • The display is easy to view and the buttons and keys are easy to use. The two-position foot stand supports viewing angles of 30 degrees and 45 degrees; you can remove the foot stand for wall mounting, with mounting holes located on the base of the phone
  • The phone can be installed on a wall using optional wall-mount kit (available separately)
  • The phone supports IEEE 802.3af PoE (Class 1); power consumption does not exceed 3.84 watts

Easy-to-Use, Cost-Effective Voice Collaboration

Get simple, highly secure, and cost-effective voice communications for small to large businesses with the Cisco IP Phone 7861. The 7861 is an ideal endpoint to meet the active communications needs of managers and administrative staff. It offers deployment flexibility, with choice of Cisco on-premises, hosted, Webex Calling, and third-party call control offer flexible deployment options.

Simplified, Improved Collaboration Experiences

- Sixteen line and programmable keys offers quick access to features and staff
- High-resolution, graphical, grayscale display for easier viewing
- Dedicated fixed keys for more efficient communications
- Built-in speakerphone enables hands-free communication
- Wideband audio enhances clarity when using a handset, speaker or a headset

Easy, Cost-Effective Administration

- Flexible deployment options include Cisco on-premises, hosted, and Webex Calling
- Cisco Expressway enables remote workers single sign-on access without a VPN client
- Power over Ethernet (PoE) Class 1 and Cisco EnergyWise to help reduce energy costs
- Integrated IEEE 10/100 switch to cut installation costs
- Cisco Webex Phone OS consolidates administration with common software to both the IP Phone 7800 Series and IP Phone 8800 Series

Specifications

Design

MountingDesk/Wall
Case materialPolycarbonate
Product colourWhite
Handset typeWired handset
Product typeIP Phone

Phone features

Call transferYes
Call parkYes
Call returnYes
Call historyYes
IntercomYes
Caller IDYes
Call waitingYes
Speed diallingYes
Call holdYes
Call forwardingYes
Conference callYes
RedialingYes
Do not disturb functionYes
Call pick upYes
Answering machineYes
Lines quantity16 lines
Show all 54 specificationsShow fewer specifications

Management features

Volume controlDigital

Display

Backlight displayYes
TouchscreenNo
Display number of coloursMonochrome
Display resolution396 x 162 pixels
Display diagonal8.89 cm (3.5")

Camera

Front cameraNo

Audio

Voice codecsG.711a, G.711u, G.722, G.729A, iLBC
Microphone muteYes
SpeakerphoneYes

Network

Quality of Service (QoS) supportYes
DHCP clientYes
Supported network protocolsSIP, SRTP, TLS
Networking standardsIEEE 802.3, IEEE 802.3af
Security algorithms128-bit AES, 256-bit AES, 802.1x RADIUS
BluetoothNo
Wi-FiNo
Ethernet LAN interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Ethernet LANNo

Ports & interfaces

DC-in jackYes
Ethernet LAN (RJ-45) ports2
RJ-9 ports quantity1

Certificates

CertificationEMC - Emissions47CFR Part 15 (CFR 47) Class BAS/NZS CISPR22 Class BCISPR22: 2005 w/Amendment 1: 2005 Class BEN55022: 2006 w/Amendment 1: 2007 Class BICES003 Class BVCCI Class BEN61000-3-2EN61000-3-3KN22 Class BEMC - ImmunityEN55024CISPR24EN60601-1-2KN24Armadillo LightTelecomFCC Part 68 HACCS-03-HACAS/ACIF S004AS/ACIF S040NZ PTC 220
Compliance industry standardsTIA 810, TIA 920IEEE 802.3 Ethernet, IEEE 802.3af, 802.3at
SafetyUL 60950 Second Edition, CAN/CSA-C22.2 No. 60950 Second Edition, EN 60950 Second Edition (incl. A11 & A12), IEC 60950 Second Edition (incl. A11 & A12), AS/NZS 60950, GB4943

Power

Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Weight1.05 kg
Height28 mm
Depth265 mm
Width207 mm
